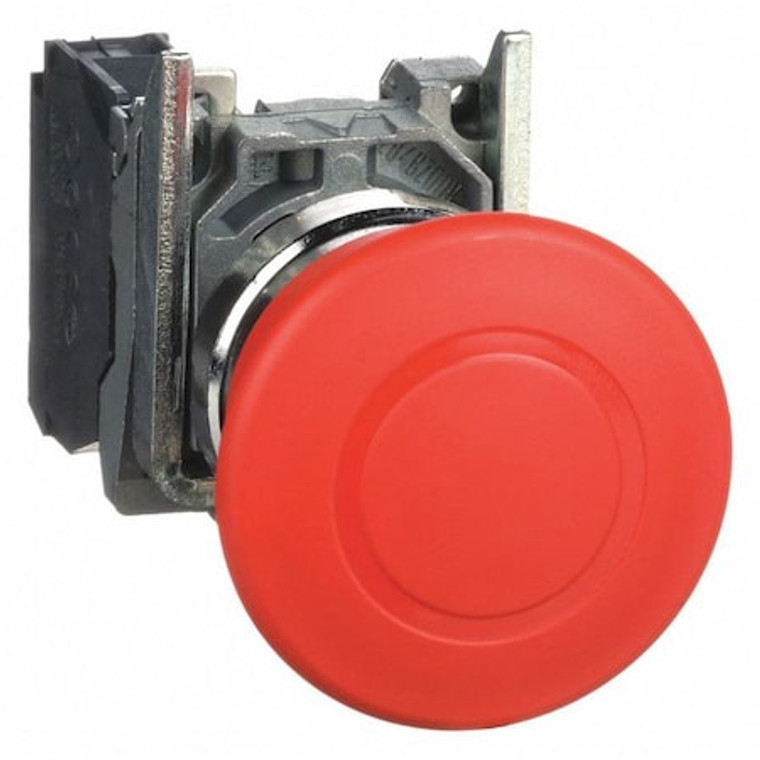

Emergency Stop Push Button, 22 mm, 1NC, Red - XB4BT842

Emergency Stop Push Button, 22 mm, 1NC, Red - XB4BT842

Schneider Electric
SKU:
XB4BT842
|
UPC:
785901978848
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Emergency Stop Push Button, 22 mm, Maintained Action, 40mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 1NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable
Additional Information
Country of Origin:
Czechia
Action:
Maintained
Size:
22 mm
Head Material:
Metal
NEMA Rating:
1, 12, 13, 2, 3, 4, 4X
Type of Operator:
40mm Mushroom Head
Lamp Type:
Not Applicable
Color:
Red
Contact Form:
1NC
Bezel:
Chrome Plated Zinc Die Cast
Legend:
Not Applicable
Number of Operators:
1
Contact Rating:
10A @ 600V AC
Item:
Emergency Stop Push Button
Bezel Material:
Chrome
Basic Material:
Metal
IP Rating:
IP66, IP67, IP69, IP69K
Standards:
Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, Germanischer Lloyd (GL), IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508,
Material:
metal
Terminal Connection:
Screw Clamp
Features:
For High Power Applications, For Low Load Electrical Contact Applications
NEMA Contact Rating Designation:
A600/Q600
DC Contact Rating:
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Height:
47 mm
Series:
XB4
Depth:
82 mm
Width:
40 mm
AC Contact Rating:
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Lamp Module Type:
Not Applicable
Product Type:
Emergency Stop Push Buttons
Ambient Air Temperature For Operation:
-40-70°C
Tightening Torque:
0.8-1.2 N.m EN 60947-1
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Device Presentation:
complete product
Protective Treatment:
TH
[Ith] Conventional Free Air Thermal Current:
10 A EN/IEC 60947-5-1
Device Short Name:
XB4
Resistance To High Pressure Washer:
7000000 Pa 55°C 0.1 m
Ambient Air Temperature For Storage:
-40-70°C
Electrical Shock Protection Class:
class I IEC 60536
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN 60947-1
Mounting Diameter:
22 mm
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Shape Of Signaling Unit Head:
round
Contacts Material:
silver alloy (Ag/Ni)
Ik Degree Of Protection:
IK06 IEC 50102
Operator Profile:
red mushroom Ø 40 mm, unmarked
Product Certifications:
DNV || GL || LROS (Lloyds register of shipping) || CSA || UL Listed || BV
Head Type:
standard
Contact Operation:
slow-break
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles
Terminals Description Iso N°1:
(21-22)NC
Operating Travel:
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Electrical Reliability:
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Fixing Collar Material:
zamak
Mechanical Durability:
3000000 cycles
Positive Opening:
with EN/IEC 60947-5-1 appendix K
Reset:
push-pull
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN
Contacts Usage:
standard contacts
[Ui] Rated Insulation Voltage:
600 V 3)EN 60947-1
Short-Circuit Protection:
10 A cartridge fuse gG EN/IEC 60947-5-1
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Product Or Component Type:
emergency stop push-button || emergency switching off push-button
Products By Industry:
Electrical
Terminals Description Iso N°1:
(21-22)NC
Legend Background Color:
Not Applicable
Mushroom Head Diameter:
40 mm
Operator Voltage Rating - Maximum:
600 V AC/DC
Operating Temperature - Maximum:
158 Degrees F
Push Button Style:
Mushroom Head
Overall Height:
1.85 in
Legend Color:
Not Applicable
Head Color:
Red
Maintained Action Release:
Push/Pull
Operating Temperature - Minimum:
-40 Degrees F
Panel Cutout Diameter:
22 mm
Lamp Voltage - Maximum:
Not Applicable
Overall Depth:
3.23 in
Overall Width:
1.57 in
Operator Material:
Metal
Operator Illumination:
Non-Illuminated
Hazardous Location Specification:
Not Applicable
NEMA Enclosure Rating:
13, 4X
Number of Indicator Lights:
0
Mechanical Operating Durability:
3.00 x 10^6
Package Quantity:
1
