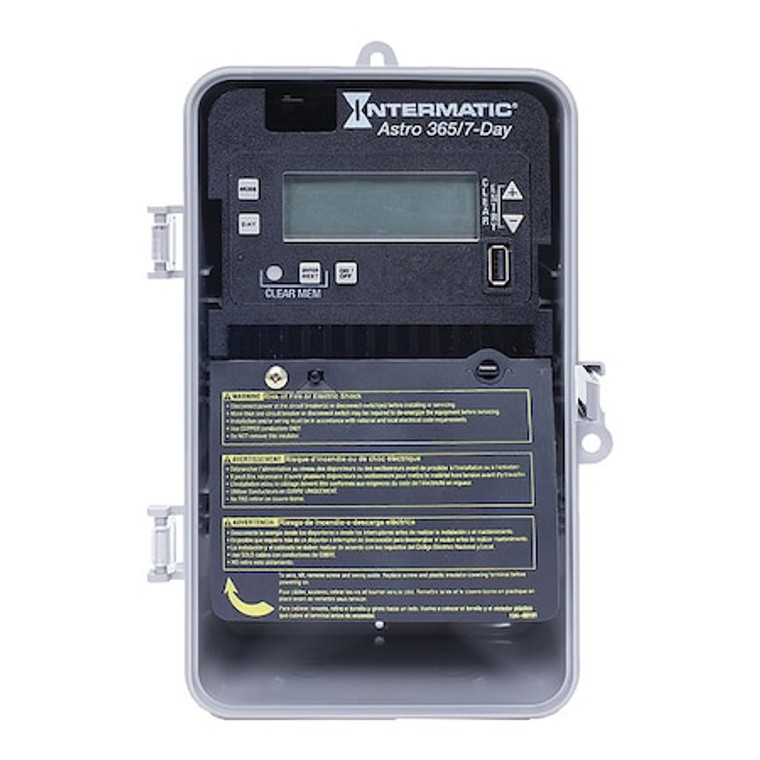

Electronic Timer, Astro 7/365 Days, 20A - ET2815CP

Electronic Timer, Astro 7/365 Days, 20A - ET2815CP

Intermatic
SKU:
ET2815CP
|
UPC:
78275148253
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Electronic Timer, Operation Mode Astro 7/365 Days, Number of Channels 1, Contact Form SPDT, Voltage 120 to 277V AC, Amps 20 A, HP @ 120V 1, HP @ 240V 2, Events Available - Electronic Timer 96, Available Actions - Electronic Timer On/Off, Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, Enclosure Plastic, Mounting Surface, Number of Poles 1, Min. Time Setting 1 min, Max. Time Setting 7 day, NEMA Rating 3R, Color Gray, Backup Device Capacitor, Backup Time 100 hr
Additional Information
Country of Origin:
Mexico
Item:
Electronic Timer
Operation Mode:
Astro 7/365 Days
Number of Channels:
1
Contact Form:
SPDT
Voltage:
120 to 277V AC
Amps:
20 A
HP @ 120V:
1
HP @ 240V:
2
Events Available - Electronic Timer:
96
Available Actions - Electronic Timer:
On/Off
Operating Temp.:
-40 Degrees to 155 Degrees F
Number of Pulse Events:
0
Depth:
4 in
Backup Device:
Capacitor
Mounting:
Surface
Max. Time Setting:
7 day
Display Height:
1 in
Width:
6 1/2 in
Color:
Gray
Number of Poles:
1
Description/Special Features:
Outdoor
Min. Time Setting:
1 min
NEMA Rating:
3R
Max. On/Off Cycles:
96
Standards:
cULus, California Title 20
Backup Time:
100 hr
Height:
10 in
Event Allocation - Electronic Timer:
1 On/Off Action = 2 Events
Display Width:
3 in
Enclosure:
Plastic
Display:
LED
Enclosure Type:
Indoor/outdoor type 3R plastic with see-through door
Features:
50 Holiday Blocks
Max. Ballast Amps:
10 A, 120/277 VAC
Max. Wattage:
3 W
Hz - Electrical:
60 Hz
Switch Type:
SPDT
Application:
Machinery, Lighting, Pump Controls
Max. Wire Size:
#8 AWG
Adjustment Type:
Automatic
Voltage Type:
Auto Voltage
Min. Wire Size:
#14 AWG
Series:
ET2000
Resistive (NC) Range(s):
10 A, 28 VDC; 10 A, 120-240 VAC
Electronic Ballast LED:
10A
UL Certification:
CULUS
Knockout Dimensions Bottom:
(2) combination 1/2 - 3/4""
Product Width (in):
6.5
Electronic Series:
ET2000 Series
Operating Temperature Max (°F):
104
Minimum ON/OFF Times:
1 min
Resistive (NO) Range(s):
20 A, 28 VDC; 20 A, 120-240 VAC
Wire Size Max:
#8 AWG
Motor Load Ratings NC Ranges:
1/4 HP, 120 VAC; 1/2 HP, 240 VAC
Input Voltage Range(s):
120-277 VAC, 60 Hz
Backup Restoration Time:
30 Minutes
Maximum ON/OFF Operations:
96
Daylight Savings Adjustment:
Automatic
Knockout Dimensions Back:
(1) combination 1/2 - 3/4""
Inductive Load Ratings NO Ranges:
20 A, 120-240 VAC
Wire Size Min:
#14 AWG
Motor Load Ratings NO Ranges:
1 HP, 120 VAC; 2 HP, 240 VAC
Product Depth (in):
4
Application Compatibilities:
LED
Maximum ON/OFF Times:
Indefinite
Wiring Option:
Terminals
Backup Type:
Supercapacitor
Product Height (in):
10
Electronic Ballast Load Ratings NO Ranges:
10 A, 120/277 VAC
Applications:
Machinery & Pump Controls Outdoor Lighting Control Timing/Scheduling ON/OFF
Operating Temperature Min (°F):
-40
Voltage Selection Type:
Auto Voltage
Maximum Power Consumption (W):
3 W
Magnetic Ballast (NO) Range(s):
20 A, 120-277 VAC
Operation Features:
Astronomic, Holiday
Number Of Circuits:
1
Inductive Load Ratings NC Ranges:
10 A, 120-240 VAC
Magnetic Ballast (NC) Range(s):
3 A, 120-277 VAC
Backup Protection Time:
100 Hour
On Off Operations:
96
Operating Temperature Min (°F):
-40
Operating Temperature Max (°F):
104
Indoor/Outdoor Usage:
Indoor, Outdoor
Body Material:
Plastic
Compatible Lighting:
LED
NEMA Enclosure Rating:
3R
Events Available:
96
Horsepower @ 120V - Maximum:
1 hp
Horsepower @ 240V - Maximum:
2 hp
Overall Depth:
4 in
Overall Width:
6 1/2 in
Current Rating - Maximum:
20 A
Timer Functions:
On/Off
Body Color:
Gray
Astronomic Functionality:
Astronomic
Operating Temperature - Minimum:
-40 Degrees F
Time Setting - Minimum:
1 min
Overall Height:
10 in
Operating Temperature - Maximum:
104 Degrees F
Electrical Installation Type:
Screw Terminal
Time Setting - Maximum:
7 day
Mounting Style:
Surface
AC Voltage Rating:
120-277V AC
Package Quantity:
1
