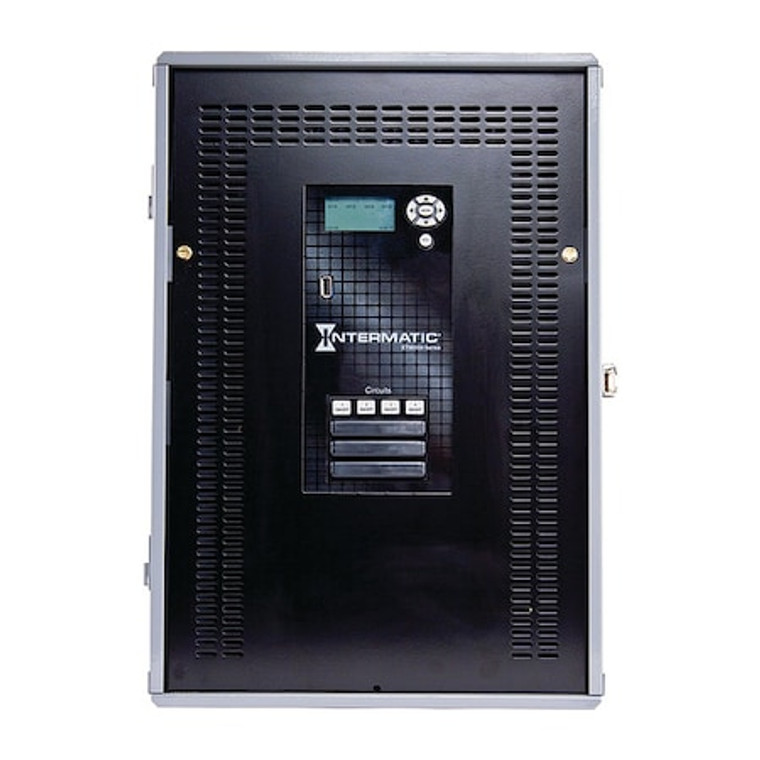

Electronic Timer, Astro 365 Days, SPDT - ET90415CR

Electronic Timer, Astro 365 Days, SPDT - ET90415CR

Intermatic
SKU:
ET90415CR
|
UPC:
78275128477
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Electronic Timer, Operation Mode Astro 365 Days, Number of Channels 4, Contact Form DPDT, SPDT, Voltage 120 to 277V AC, Amps 30 A, HP @ 120V NC: 1/4, NO: 1, HP @ 240V NC: 1/2, NO: 2, Events Available - Electronic Timer 4,000, Available Actions - Electronic Timer Cycle, On/Off, Pulse, Event Allocation - Electronic Timer 1 Cycle Action = 1 Event, 1 On/Off Action = 1 Event, 1 Pulse Action = 1 Event, Pulse Duration 1 sec to 24 hr, Enclosure Metal, Mounting Snap-In, Number of Poles 4
Additional Information
Country of Origin:
Mexico
Item:
Electronic Timer
Operation Mode:
Astro 365 Days
Number of Channels:
4
Contact Form:
DPDT, SPDT
Voltage:
120 to 277V AC
Amps:
30 A
HP @ 120V:
NC
HP @ 240V:
NC
Events Available - Electronic Timer:
4,000
Available Actions - Electronic Timer:
Cycle, On/Off, Pulse
Min. Time Setting:
1 sec
Display Height:
1 in
Number of Pulse Events:
4000
Enclosure:
Metal
Standards:
cCSAus, cULus, California Title 20
Pulse Duration:
1 sec to 24 hr
Max. On/Off Cycles:
4000
Description/Special Features:
Ethernet Module, Copy Programming To Other Time Switches For Backup Purposes Via USB
NEMA Rating:
3R
Operating Temp.:
-40 Degrees to 120 Degrees F
Color:
Gray
Backup Device:
Capacitor
Height:
18 1/2 in
Display Width:
2 in
Green Environmental Attribute:
Programmable Timer Enables Reduced Energy Consumption
Width:
12 3/4 in
Max. Time Setting:
365 day
Depth:
5 1/2 in
Mounting:
Snap-In
Number of Poles:
4
Backup Time:
100 hr
Event Allocation - Electronic Timer:
1 Cycle Action = 1 Event, 1 On/Off Action = 1 Event, 1 Pulse Action = 1 Event
Switch Type:
4xSPDT; 2xDPDT
Enclosure Type:
Outdoor type 3R metal
Max. Ballast Amps:
8 A, 120-277 VAC, 50/60 Hz
Features:
Advanced Scheduling Including Relative Events, USB Connection Port
Max. Wattage:
50 W
Hz - Electrical:
50-60 Hz
Voltage Type:
Auto Voltage
Adjustment Type:
Automatic
Application:
Lighting, Machinery, Pump Controls
Series:
ET90000
Maximum Pulse Time:
23 hours, 59 minutes
Electronic Series:
ET90000 Series
Pilot Duty (NO):
470 VA, 120 VAC, 50 Hz, 470 VA, 120 VAC, 60 Hz, 470 VA, 208 VAC, 50 Hz, 470 VA, 208 VAC, 60 Hz, 470 VA, 240 VAC, 50 Hz, 470 VA, 240 VAC, 60 Hz
Number Of Circuits:
4
Backup Type:
Supercapacitor
General Purpose (NO) Range(s):
30 A, 12-240 VAC, 50/60 Hz
Magnetic Ballast (NC):
3 A, 120 VAC, 50 Hz, 3 A, 120 VAC, 60 Hz, 3 A, 208 VAC, 50 Hz, 3 A, 208 VAC, 60 Hz, 3 A, 240 VAC, 50 Hz, 3 A, 240 VAC, 60 Hz, 3 A, 277 VAC, 50 Hz, 3 A, 277 VAC, 60 Hz
Magnetic Ballast (NO):
20 A, 120 VAC, 50 Hz, 20 A, 120 VAC, 60 Hz, 20 A, 208 VAC, 50 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 50 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 50 Hz, 20 A, 277 VAC, 60 Hz
Electronic Ballast Load Ratings NO Ranges:
8 A, 120-277 VAC, 50/60 Hz
Maximum Power Consumption (W):
50 W
Applications:
Indoor Lighting Control Machinery & Pump Controls Outdoor Lighting Control Timing/Scheduling ON/OFF
Magnetic Ballast (NO) Range(s):
20 A, 120-277 VAC, 50/60 Hz
General Purpose (NC):
10 A, 120 VAC, 50 Hz, 10 A, 120 VAC, 60 Hz, 10 A, 12 VAC, 50 Hz, 10 A, 12 VAC, 60 Hz, 10 A, 18 VAC, 50 Hz, 10 A, 18 VAC, 60 Hz, 10 A, 208 VAC, 50 Hz, 10 A, 208 VAC, 60 Hz, 10 A, 240 VAC, 50 Hz, 10 A, 240 VAC, 60 Hz, 10 A, 24 VAC, 50 Hz, 10 A, 24 VAC,
Data Transfer Options:
Ethernet Optional/USB
Electronic Ballast (NO):
8 A, 120 VAC, 50 Hz, 8 A, 120 VAC, 60 Hz, 8 A, 208 VAC, 50 Hz, 8 A, 208 VAC, 60 Hz, 8 A, 240 VAC, 50 Hz, 8 A, 240 VAC, 60 Hz, 8 A, 277 VAC, 50 Hz, 8 A, 277 VAC, 60 Hz
Motor Load Ratings NC Ranges:
1/4 HP, 120 VAC, 50/60 Hz; 1/2 HP, 240 VAC, 50/60 Hz
Operating Temperature Min (°F):
-40
Magnetic Ballast (NC) Range(s):
3 A, 120-277 VAC, 50/60 Hz
Resistive (NC) Range(s):
10 A, 28 VDC; 10 A, 12-240 VAC, 50/60 Hz
Daylight Savings Adjustment:
Automatic
General Purpose (NO):
30 A, 120 VAC, 50 Hz, 30 A, 120 VAC, 60 Hz, 30 A, 12 VAC, 50 Hz, 30 A, 12 VAC, 60 Hz, 30 A, 18 VAC, 50 Hz, 30 A, 18 VAC, 60 Hz, 30 A, 208 VAC, 50 Hz, 30 A, 208 VAC, 60 Hz, 30 A, 240 VAC, 50 Hz, 30 A, 240 VAC, 60 Hz, 30 A, 24 VAC, 50 Hz, 30 A, 24 VAC,
On Off Operations:
2000
Tungsten (NO) Load Ratings:
5 A, 110 VAC, 50 Hz, 5 A, 110 VAC, 60 Hz, 5 A, 115 VAC, 50 Hz, 5 A, 115 VAC, 60 Hz, 5 A, 12 VAC, 50 Hz, 5 A, 12 VAC, 60 Hz, 5 A, 120 VAC, 50 Hz, 5 A, 120 VAC, 60 Hz, 5 A, 24 VAC, 50 Hz, 5 A, 24 VAC, 60 Hz, 5 A, 50 VAC, 50 Hz, 5 A, 50 VAC, 60 Hz
Product Height (in):
17.9
General Purpose (NC) Range(s):
10 A, 12-240 VAC, 50/60 Hz
Wiring Option:
Terminals
Minimum Pulse Time:
1 sec
Pilot Duty (NC) Range(s):
275 VA, 120-240 VAC, 50/60 Hz
Operating Temperature Max (°F):
104
Product Width (in):
12.7
Pilot Duty (NC):
275 VA, 120 VAC, 50 Hz, 275 VA, 120 VAC, 60 Hz, 275 VA, 208 VAC, 50 Hz, 275 VA, 208 VAC, 60 Hz, 275 VA, 240 VAC, 50 Hz, 275 VA, 240 VAC, 60 Hz
UL Certification:
CULUS
Tungsten (NO) Range(s):
5 A, 12-120 VAC, 50/60 Hz
Input Voltage Range(s):
120-277 VAC, 50/60 Hz
Maximum ON/OFF Times:
365 days
Backup Restoration Time:
30 Minutes
Motor Load Ratings NO Ranges:
1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz
Pilot Duty (NO) Range(s):
470 VA, 120-240 VAC, 50/60 Hz
Product Depth (in):
5.4
Maximum ON/OFF Operations:
2000
Minimum ON/OFF Times:
1 sec
Resistive (NO) Range(s):
20 A, 28 VDC; 30 A, 12-240 VAC, 50/60 Hz
Backup Protection Time:
100 Hour
Operation Features:
Astronomic, Holiday
Voltage Selection Type:
Auto Voltage
Operating Temperature Max (°F):
104
Operating Temperature Min (°F):
-40
Events Available:
2,000
Pulse Duration - Maximum:
24 hr
NEMA Enclosure Rating:
3R
Horsepower @ 240V - Maximum:
2 hp
Operating Temperature - Minimum:
-40 Degrees F
AC Voltage Rating:
120-277V AC
Horsepower @ 120V - Maximum:
1 hp
Astronomic Functionality:
Astronomic
Time Setting - Maximum:
365 day
Body Color:
Gray
Electrical Installation Type:
Screw Terminal
Operating Temperature - Maximum:
104 Degrees F
Indoor/Outdoor Usage:
Outdoor
Current Rating - Maximum:
30 A
Overall Height:
17 7/8 in
Overall Width:
12 11/16 in
Timer Functions:
On/Off
Body Material:
Metal
Overall Depth:
5 3/8 in
Pulse Duration - Minimum:
1 sec
Time Setting - Minimum:
1 sec
Package Quantity:
1
