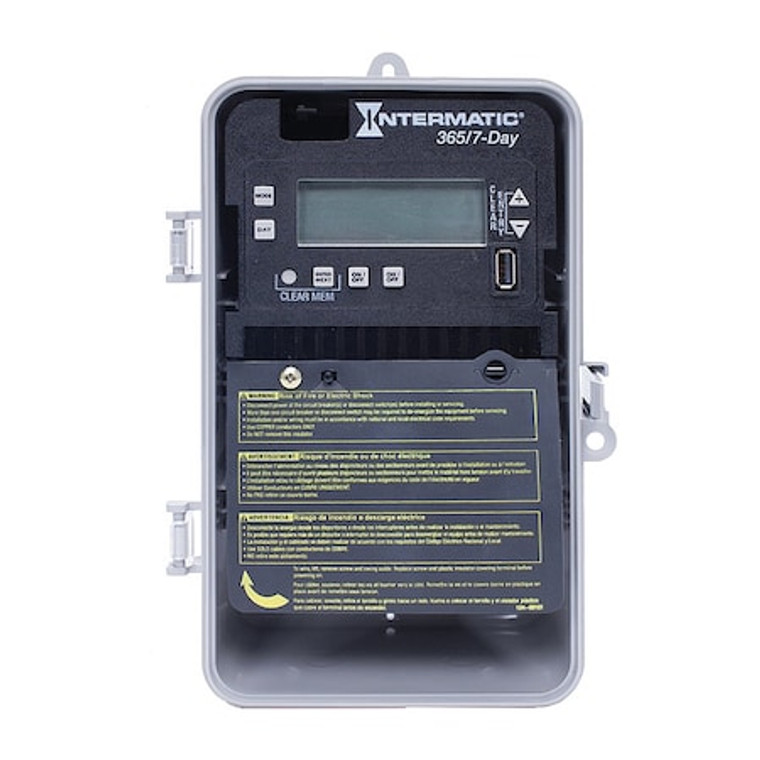

Electronic Timer, 7/365 Days, 30A - ET2725C

Electronic Timer, 7/365 Days, 30A - ET2725C

Intermatic
SKU:
ET2725C
|
UPC:
78275148147
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Electronic Timer, Operation Mode 7/365 Days, Number of Channels 2, Contact Form SPST, DPST, Voltage 120 to 277V AC, Amps 30 A, HP @ 120V 1, HP @ 240V 2, Events Available - Electronic Timer 96, Available Actions - Electronic Timer On/Off, Pulse, Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, 1 Pulse Action = 1 Event, Pulse Duration 2 sec, Enclosure Metal, Mounting Surface, Number of Poles 2, Min. Time Setting 1 min, Max. Time Setting 7 day, NEMA Rating 1, Color Gray
Additional Information
Country of Origin:
Mexico
Item:
Electronic Timer
Operation Mode:
7/365 Days
Number of Channels:
2
Contact Form:
SPST, DPST
Voltage:
120 to 277V AC
Amps:
30 A
HP @ 120V:
1
HP @ 240V:
2
Events Available - Electronic Timer:
96
Available Actions - Electronic Timer:
On/Off, Pulse
Depth:
3 7/16 in
Operating Temp.:
-40 Degrees to 155 Degrees F
Event Allocation - Electronic Timer:
1 On/Off Action = 2 Events, 1 Pulse Action = 1 Event
Display Width:
3 in
Number of Poles:
2
Backup Device:
Capacitor
Mounting:
Surface
Height:
7 7/8 in
Display Height:
1 in
Enclosure:
Metal
Standards:
cULus, California Title 20
Number of Pulse Events:
48
NEMA Rating:
1
Min. Time Setting:
1 min
Color:
Gray
Description/Special Features:
Indoor
Max. Time Setting:
7 day
Width:
5 1/8 in
Backup Time:
100 hr
Pulse Duration:
2 sec
Max. On/Off Cycles:
96
Max. Ballast Amps:
10 A, 120/277 VAC
Features:
50 Holiday Blocks
Display:
LED
Enclosure Type:
Indoor type 1 metal
Hz - Electrical:
60 Hz
Switch Type:
2xSPST, 1xDPST or Pulse
Max. Wattage:
5 W
Max. Wire Size:
#8 AWG
Min. Wire Size:
#14 AWG
Application:
Lighting, Machinery, Pump Controls
Adjustment Type:
Automatic
Voltage Type:
Auto Voltage
Series:
ET2000
Product Depth (in):
3.4375
Product Height (in):
7.875
Magnetic Ballast (NO) Range(s):
20 A, 120-277 VAC
Wire Size Min:
#14 AWG
Knockout Dimensions Bottom:
(2) combination 1/2 - 3/4""
Maximum Power Consumption (W):
5 W
Maximum ON/OFF Times:
Indefinite
Number Of Circuits:
2
UL Certification:
CULUS
Minimum Pulse Time:
2 sec
Operating Temperature Max (°F):
104
Operating Temperature Min (°F):
-40
Electronic Ballast LED:
10A
Applications:
Indoor Lighting Control Machinery & Pump Controls Timing/Scheduling ON/OFF
Maximum Pulse Time:
2 sec
Motor Load Ratings NO Ranges:
1 HP, 120 VAC; 2 HP, 240 VAC
Product Width (in):
5.125
Resistive (NO) Range(s):
20 A, 28 VDC; 30 A, 120-240 VAC
Voltage Selection Type:
Auto Voltage
Electronic Series:
ET2000 Series
Maximum ON/OFF Operations:
96
On Off Operations:
96
Input Voltage Range(s):
120-277 VAC, 60 Hz
Operation Features:
Holiday
Backup Type:
Supercapacitor
Application Compatibilities:
LED
Backup Protection Time:
100 Hour
Minimum ON/OFF Times:
1 min
Wiring Option:
Terminals
Inductive Load Ratings NO Ranges:
30 A, 120-240 VAC
Tungsten (NO) Range(s):
5 A, 120-277 VAC
Electronic Ballast Load Ratings NO Ranges:
10 A, 120/277 VAC
Backup Restoration Time:
30 Minutes
Daylight Savings Adjustment:
Automatic
Knockout Dimensions Back:
(1) combination 1/2 - 3/4""
Wire Size Max:
#8 AWG
Operating Temperature Min (°F):
-40
Operating Temperature Max (°F):
104
Electrical Installation Type:
Screw Terminal
Pulse Duration - Minimum:
2 sec
Time Setting - Maximum:
7 day
Body Material:
Metal
Pulse Duration - Maximum:
2 sec
Events Available:
96
Body Color:
Gray
Overall Width:
5 1/8 in
Timer Functions:
On/Off, Pulse
AC Voltage Rating:
120-277V AC
Astronomic Functionality:
Not Astronomic
Overall Depth:
3 7/16 in
Current Rating - Maximum:
30 A
Mounting Style:
Surface
Indoor/Outdoor Usage:
Indoor
Compatible Lighting:
LED
NEMA Enclosure Rating:
1
Time Setting - Minimum:
1 min
Operating Temperature - Minimum:
-40 Degrees F
Overall Height:
7 7/8 in
Horsepower @ 120V - Maximum:
1 hp
Horsepower @ 240V - Maximum:
2 hp
Operating Temperature - Maximum:
104 Degrees F
Package Quantity:
1
