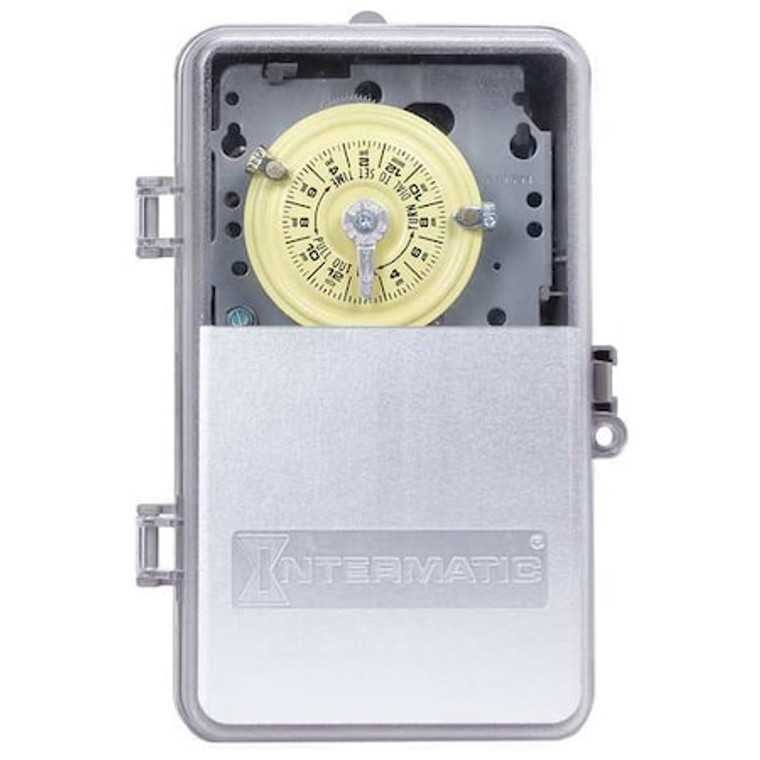

Electromechanical Timer, 24-Hour, SPST - T101PCD82

Electromechanical Timer, 24-Hour, SPST - T101PCD82

Intermatic
SKU:
T101PCD82
|
UPC:
78275047839
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Electromechanical Timer, 24-Hour, Number of Poles 1, Contact Form SPST, Voltage 120V AC, Amps 40 A, Contact HP @ 120V 2 hp, Day Skipper No, Enclosure Type Polycarbonate, Finish Gray, NEMA Rating 3R, Min. Time Setting 1 hr, Max. Time Setting 23 hr, Max. On/Off Cycles 12, Width 7 1/8 in, Depth 4 in, Height 11 1/2 in, Number of Trippers Included 2, Extra Trippers Mfr. No. 156T1978A, Operating Temp. -40 Degrees to 130 Degrees F, Description/Special Features Clear Plastic Door, Mount Surface
Additional Information
Country of Origin:
Mexico
Item:
Electromechanical Timer
Voltage:
120V AC
Amps:
40 A
Enclosure Type:
Polycarbonate
Min. Time Setting:
1 hr
Max. Time Setting:
23 hr
Contact Form:
SPST
Max. On/Off Cycles:
12
Extra Trippers:
Mfr. No. 156T1978A
Time Setting Range:
1 hr. to 23 hr.
Contact HP @ 120V:
2 hp
Mount:
Surface
Number of Poles:
1
Nominal Max. Time Setting:
24 hr
Number of Trippers Included:
2
Standards:
cCSAus, cULus
Operating Temp.:
-40 Degrees to 130 Degrees F
Depth:
4 in
Description/Special Features:
Clear Plastic Door
NEMA Rating:
3R
Finish:
Gray
Height:
11 1/2 in
Width:
7 1/8 in
Day Skipper:
No
Type:
24-Hour
Product Type:
Timer
Operation Mode:
24 hour
Minimum On Off Time:
1 hour
Wire Size Min:
#14 AWG
Product Width:
6 1/2 in; 165.1 mm
Applications:
Timing/Scheduling ON/OFF; Indoor Lighting Control; Outdoor Lighting Control
Product Height:
10 in; 254 mm
Operating Temperature Max:
130°C
Operating Temperature Min:
-40°C
Motor Load Ratings:
2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Electronic Ballast Load Ratings:
16 A, 120 VAC
Input Voltage Ranges:
120 VAC, 60 Hz
CSA Certification:
cCSAus
UL Certification:
cULus
Knockout Dimensions Bottom:
(2) combination 1/2 - 3/4""
Wire Size Max:
#8 AWG
Solutions:
Machinery & Pumps; Panel Integrators
Pilot Duty Load Ratings Ranges:
1000 VA, 120-240 VAC, 60 Hz
Inductive Load Ratings Ranges:
40 A, 120-240 VAC, 60 Hz
Tungsten Load Ratings:
40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz
Skipper Wheel Operation Mode:
Not Included
Packaging Applications:
Indoor/Outdoor Lighting; Signs; Filters; Electric Fences; Fans; Conveyors; Pool Heaters; Blowers; Pumps
Maximum On Off Operations:
12
Wiring Option:
Terminals
UL Cerfication File Number:
UL917
Tungsten Load Ratings Ranges:
40 A, 120-240 VAC, 60 Hz
Number Of Circuits:
1
Electronic Ballast Load Ratings Ranges:
16 A, 120 VAC
Resistive Load Ratings Ranges:
40 A, 120-240 VAC, 60 Hz
Knockout Dimensions Back:
(1) combination 1/2 - 3/4""
Market:
Commercial; Industrial
Product Depth:
4 in; 101.6 mm
Has Manual Override CVL:
Yes
Resistive Load Ratings:
40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Pilot Duty Load Ratings:
1000 VA, 120-240 VAC, 60 Hz
Switch Type:
SPST
Inductive Load Ratings:
40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Power Consumption Max W:
3 W
Application Compatibilities:
LED; HID
Has Manual Override:
Yes
Maximum ON/OFF Operations:
12
Tungsten Range(s):
40 A, 120-240 VAC, 60 Hz
Input Voltage Range(s):
120 VAC, 60 Hz
Minimum ON/OFF Times:
1 hour
Operating Temperature Max (°F):
130
Product Height (in):
10
Skipper Wheel:
Not Included
Motor Load Ratings Ranges:
2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Electronic Ballast:
16 A, 120 VAC
Product Width (in):
6.5
Pilot Duty (NO):
1000 VA, 120-240 VAC, 60 Hz
Resistive:
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Product Depth (in):
4
Tungsten (NO):
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Operating Temperature Min (°F):
-40
Features:
Manual Override, See-Through Enclosure Door
Inductive:
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Maximum Power Consumption (W):
3 W
Operating Temperature Min (°F):
-40
Operating Temperature Max (°F):
130
Operating Temperature - Maximum:
130 Degrees F
Overall Height:
10 in
Series:
T100
Application:
Lighting
Overall Depth:
4 in
Time Setting - Minimum:
1 hr
NEMA Enclosure Rating:
3R
Horsepower @ 120V - Maximum:
2 hp
On/Off Cycles - Maximum:
12
Overall Width:
6 1/2 in
Horsepower @ 240V - Maximum:
5 hp
Indoor/Outdoor Usage:
Indoor, Outdoor
AC Voltage Rating:
120V AC
Time Setting - Maximum:
24 hr
Number of Trippers - Maximum:
2
Mounting Style:
Surface
Operating Temperature - Minimum:
-40 Degrees F
Body Color:
Gray
Body Material:
Plastic
Compatible Lighting:
HID, LED
Current Rating - Maximum:
40 A
Package Quantity:
1
