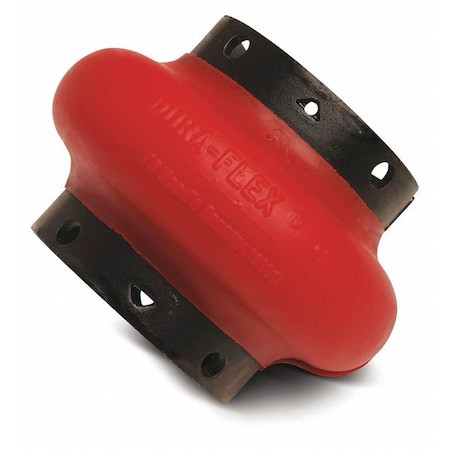

Dura-Flex Tire Coupling Element, WE40, Urethane - WE40

Name: Dura-Flex Tire Coupling Element, WE40, Urethane - WE40
Brand: Tb Woods
SKU: WE40
Price: 370.29 USD
Availability: InStock

Tb Woods

SKU:

WE40

UPC:

698672118750

Availability:

In Stock

(No reviews yet)

Tire Coupling Element, Angular Misalignment 3 Degrees , Coupling Size WE40, Horsepower @ 100 RPM 8.9 hp, Maximum Speed 5,000 RPM, Maximum Torque 5,500 in-lb, Maximum Hub Spacing 0.25 in, Tire Outside Diameter 9.71 in, Element Overall Length 8.16 in, Parallel Misalignment 0.09375 in, Element Type Standard Center Element, Weight 8 lb, Application Blowers, Compressors, Fans, Generators Numerous Industrial Applications, Including Pumps, Motors, Element Flex Material Polyether Urethane

Country of Origin:: United States
Size - Tire Couplings:: WE40
Outside Dia.:: 9.71 in
Max. RPM:: 5,000 RPM
Item:: Tire Coupling Element
Rated Torque:: 5,500 in-lb
Operating Temp.:: -40 Degrees to 200 Degrees F
HP Rating @ 1800 RPM:: 157.08 hp
Length:: 4.86 in
HP Rating @ 100 RPM:: 8.85 hp
HP Rating @ 1200 RPM:: 104.72 hp
HP Rating @ 3600 RPM:: 301.07 hp
Body Style:: WE40
Insert Design:: Standard
Application:: Blowers, Compressors, Fans, Generators Numerous Industrial Applications, Including Pumps, Motors
Height:: 9.71 in
Item - Tire Coupling Elements:: Tire Coupling Element
Insert Material:: Polyether Urethane/Steel
Includes:: Hardware Packet Including Cap Screws
Element Flex Material:: Polyether Urethane
Horsepower @ RPM:: 101 hp @ 1,160 RPM, 153 hp @1,750 RPM, 305 hp @ 3,500 RPM
Features:: Shock Absorbant, No Lubrication Required
Tire Outside Diameter:: 9.71 in
Maximum Torque:: 5,500 in-lb
Weight:: 8 lb
Minimum Operating Temperature:: -40 Degrees F
Torsional Stiffness:: 65,200 in-lb/rad
Maximum Hub Spacing:: 0.25 in
Element Overall Length:: 8.16 in
For Misalignment Type:: Angular, Parallel
Element Metal Material:: Steel
Resistance Properties:: Chemical Resistant
Coupling Size:: WE40
Maximum Speed:: 5,000 RPM
System of Measurement:: Inch
Angular Misalignment:: 3 Degrees
Maximum Operating Temperature:: 200 Degrees F
Parallel Misalignment:: 0.09375 in
Horsepower @ 100 RPM:: 8.9 hp
Element Type:: Standard Center Element
Package Quantity:: 1
