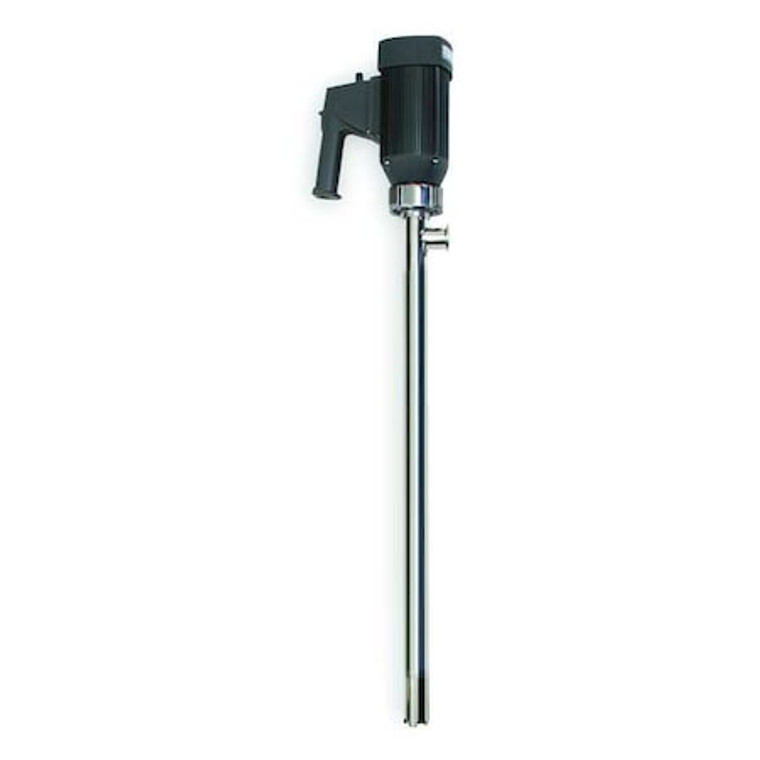

Drum Pump, 110VAC, 1 HP, 60 Hz - 3PXJ9

Drum Pump, 110VAC, 1 HP, 60 Hz - 3PXJ9

Dayton
SKU:
3PXJ9
|
UPC:
190735293140
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Electric Operated Drum Pump, Max. Head Pressure 16 psi, Max. Oil Flow 7 gpm, Max. Outlet Pressure 16 psi, For Use With SP-ENC-V / SP-8600-39, Rated Voltage 110V AC, Plug Type NEMA 5-15-P, Suction Tube OD 1 5/8 in, Suction Tube Length 39 in, Cord Length 16 ft, Includes Bung Adapter No, Runs Dry Yes, Thermal Protection Yes, Frequency (Hz) 50/60 Hz, Power Source Electric, Variable Speed Yes, Includes Discharge Hose No, Self-Priming Yes
Additional Information
Country of Origin:
United States
For Use With:
SP-ENC-V / SP-8600-39
Housing Material:
316L Stainless Steel
Includes:
Hose Barb
Inlet Size:
1-5/8";Motor Type=Electric AC Brush"
Voltage:
110vac
Max. Flow GPM:
32 gpm
Application:
For Transferring Dairy Products, Pharmaceuticals and Food/Beverage Ingredients
RPM:
10,000
Phase:
1
Manufacturers Warranty Length:
3 yr.
Max. Liquid Temp.:
175 Degrees F
Max. Viscosity:
1,000 cps
Item:
Electric Operated Drum Pump
Suction Tube Length:
39 in
Gasket Material:
Buna-N
Max. Head:
30 ft.
Overall Length:
52 in
Max. GPM for Oil:
7
Self-Priming:
Yes
Max. GPM for Water:
32
Hz:
60
Max. Pressure:
16 psi
Metered:
No
Standards:
FDA Compliant
Agency Compliance:
ETL, FDA Compliant
Wetted Materials:
316L Stainless Steel, PTFE
Suction Tube Type:
Impeller
Type:
Motor and Tube
Max. Temp.:
175 Degrees F
Outlet Size:
1-1/2";Motor Enclosure=TEFC"
DEF Compatible:
No
GPM:
32
HP:
1
Height:
53";Cord Length=16 ft"
Motor HP:
1 1/10 hp
Includes Nozzle:
No
Compatible Chemicals:
Acetic Acid 20%, Acetic Acid 80%, Ammonia (Liquids), Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Citric Acid 50%, Deionized Water, Ethylene Glycol, Fresh Water, Glycerin, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Methyl
Plug Type:
NEMA 5-15-P
For Container Size:
55 gal
Motor RPM:
0-10,000
Food Grade:
Yes
Noise Level:
88 db
Suction Tube OD:
1 5/8 in
Max. Oil Flow:
7 gpm
Max. Flow Rate:
35 gpm
Housing Material - Pumps:
316 Stainless Steel
Max. Head - Pumps:
36 ft
Variable Speed:
Yes
Frequency (Hz):
50/60 Hz
Number of Phases:
1
Suction Tube Material:
Stainless Steel
For Media Type:
Acetic Acid, Ammonia, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, Ethylene Glycol, Glycerin, Hydraulic Oil, Methyl Chloride, Motor Oil, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sod
For Container Type:
Drum
Includes Suction Tube:
Yes
Discharge Tube Outlet ID:
1 in
Includes Bung Adapter:
No
Discharge Tube Outlet OD:
1 1/2 in
Discharge Connection Type:
Tri-Clamp
Includes Discharge Hose:
No
Power Source:
Electric
Not Recommended Chemicals:
Acetic Acid (Glacial), Acetone, Chromic Acid 30%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Formic Acid, Gasoline, Heptane, Hexane, Hydrochloric/Muriatic Acid (100%), Hydrochloric
Suction Tube ID:
1 3/8 in
Full Load Amps:
8.5 A
Max. Head Pressure:
16 psi
Max. Fluid Temp.:
175 Degrees F
Diesel Exhaust Fluid Compatible:
No
Runs Dry:
Yes
Seal Material:
Sealless
Duty Cycle:
Intermittent
Thermal Protection:
Yes
Max. Outlet Pressure:
16 psi
Grease:
NT
Rated Voltage:
110V AC
Gear Lube:
NT
Package Quantity:
1
