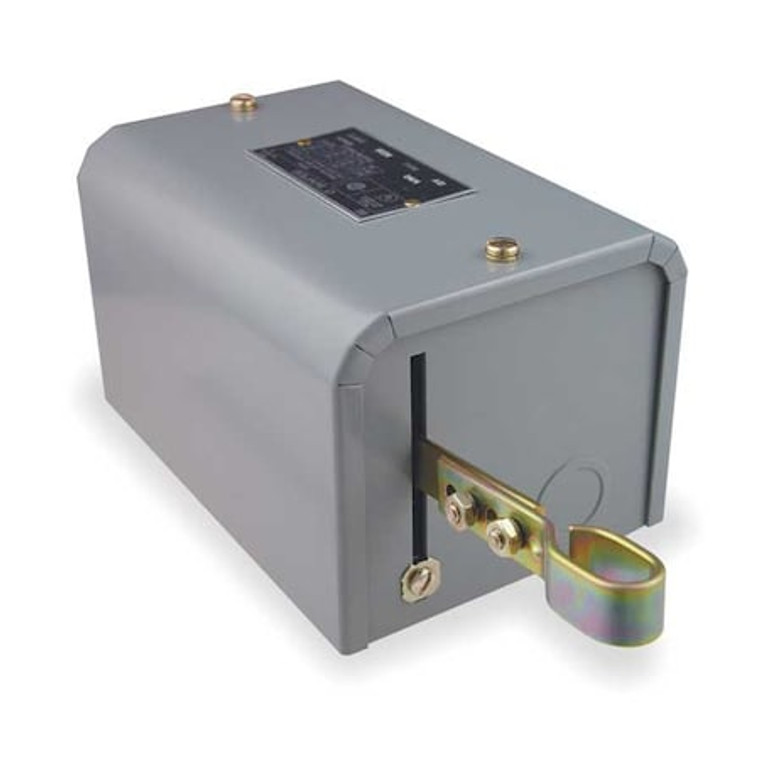

DPST Alternator Open Liquid Level Switch Close on Rise 600VAC - 9038AG1C

DPST Alternator Open Liquid Level Switch Close on Rise 600VAC - 9038AG1C

Telemecanique Sensors
SKU:
9038AG1C
|
UPC:
785901591023
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Alternator Open Liquid Level Switch, 10 A Amps, Contact Form DPST-4NC, VA Rating 460V AC, Float Travel 1 1/4 in, NEMA Rating 1, Operating Temp. Range -22 Degrees to 220 Degrees F, Switch Function Close On Rise, Overall Length 10.32 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 7 in, Height 4.5 in, Width 4.69 in, Max. Current 600 A, Max. Voltage 600, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Open Tank Mounting, Body Material Steel
Additional Information
Country of Origin:
Mexico
Voltage:
600VAC
Item:
Alternator Open Liquid Level Switch
Amps:
10 A
Float Length:
7 in
Switch Function:
Close On Rise
Contact Form:
DPST-4NC
Max. Current:
600 A
HP @ 3 Phase - 240V:
5 hp
Height:
4.5 in
HP @ 1 Phase - 120V:
2 hp
Float Dia.:
7 in
VA Rating:
460V AC
Float Material:
Stainless Steel
Float Travel:
1 1/4 in
Max. Voltage:
600
Float Position:
Below
Width:
4.69 in
HP @ 1 Phase - 240V:
3 hp
Standards:
CE, CSA File No.LR25490, UL 508, UL E12158
Body Material:
Steel
Operating Temp. Range:
-22 Degrees to 220 Degrees F
Float Switch Contact Form:
DPST
Overall Length:
10.32 in
Mounting:
Open Tank
NEMA Rating:
1
Electrical Connections:
Screw Clamp
Conduit Size:
4 1/2 in, 4 3/4 in
Includes:
Compensating Spring - Does Not Include Float
Float Switch Float Material:
Stainless Steel
Features:
(4) Knock-Outs Conduit Entries for 1/2 in or 3/4 in
Series:
9038A
Float Rod Angle:
Vertical
Product Type:
Alternator Open Liquid Level Switch
Horsepower @ Three Phase - 240V AC:
5 hp
Operating Temperature - Maximum:
220 Degrees F
Overall Height:
4.5 in
Horsepower @ Single Phase - 120V AC:
2 hp
Horsepower @ Single Phase - 240V AC:
3 hp
Electrical Connection:
Screw Clamp
Minimum Media Specific Gravity:
0.85
Voltage Rating - Maximum:
575 V AC
Float Diameter:
7 in
Mounting Style:
Open Tank Vertical
Current Rating:
600 A
Overall Width:
4.69 in
Operating Temperature - Minimum:
-22 Degrees F
NEMA Enclosure Rating:
1
Manufacturer Warranty Length:
18 mo
Package Quantity:
1
