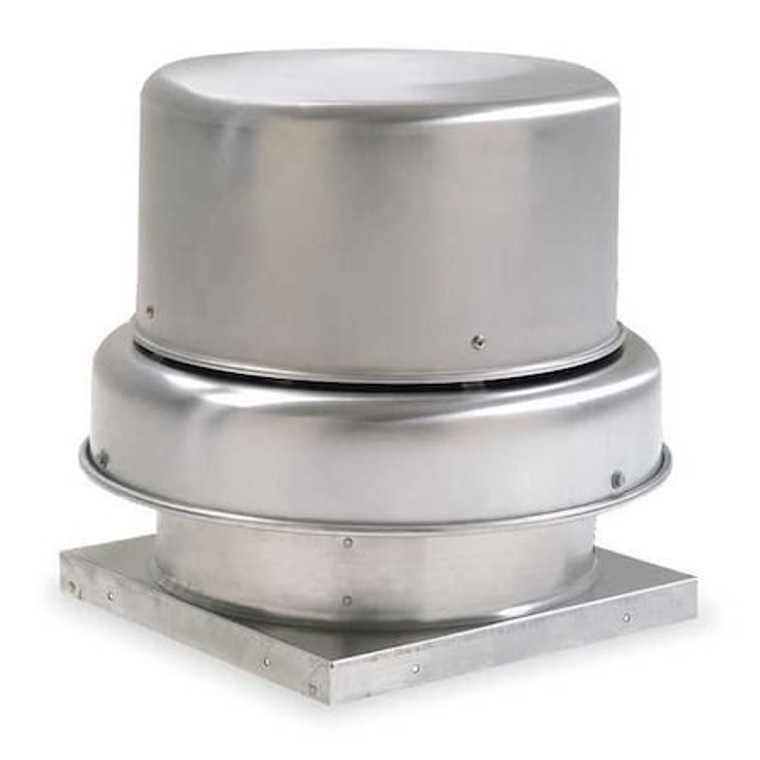

Downblast Vent, Belt Drive, 24-1/2 In - 7AU72

Downblast Vent, Belt Drive, 24-1/2 In - 7AU72

Dayton
SKU:
7AU72
|
UPC:
190735343470
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Centrifugal Downblast Roof Exhaust Fan, Drive Type Belt Drive, Assembly Unassembled, Wheel Diameter 24 1/2 in, Base Diameter Not Applicable, Base Length 34 in, Base Width 34 in, Base Shape Square, Nameplate Voltage 208-230/460V AC, Phase 3, Motor Horsepower 1/2 hp, Exhaust Airflow @ 0.000 in SP 4,863 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, For Air Type Clean Air, Includes Drive Package Yes, Includes Motor Yes, Mounting Location Roof
Additional Information
Country of Origin:
Multiple
Item - Roof Ventilators:
Downblast Ventilator
Drive Package With Motor Included:
Yes
Duty Rating - Roof Ventilators:
Standard
Drive Type - Roof Ventilators:
Belt Drive
Mounting Location - Roof Ventilators:
Roof
Number of Speeds:
1
Voltage - Roof Ventilators:
208V AC/230V AC/460V AC
Motor HP - Roof Ventilators:
1/2 hp
Base Size - Roof Ventilators:
34 in x 34 in
CFM @ 0.000-In. SP:
4863
Overall Dia.:
42 3/4 in
Wheel Material:
Aluminum
CFM @ 0.375-In. SP:
4120
Sones @ 0.250-In. SP @ 5 Ft.:
12.1
Agency Compliance:
AMCA Sound & Air, UL/cUL 705
Max. Operating Amps:
2.1-2.2/1.1
Dimension A:
34 in
Adj. 6 3/8H Roof Curb Stock No.:
3C438"
Drive Type:
Belt Drive
Speed Controllable:
No
Housing Material:
Aluminum
RPM:
640
Base Square Size - Roof Ventilators:
34 x 34""
Sones @ 0.500-In. SP @ 5 Ft.:
10.5
Assembled/Unassembled:
Unassembled
CFM @ 0.125-In. SP:
4654
CFM @ 0.250-In. SP:
4403
Recommended 8 In. Fixed Curb Item No.:
4HX42
CFM @ 0.625-In. SP:
3208
CFM @ 0.500-In. SP:
3702
Overall Height:
40 1/8 in
Sones @ 0.125-In. SP @ 5 Ft.:
12.8
Motor HP:
1/2
Base Width:
34 in
Base Height:
1 3/4 in
Motor Voltage:
208/230/460
Item:
Centrifugal Downblast Roof Exhaust Fan
Phase:
3
Drive Package Included:
Yes
Dimension C:
38 3/8 in
Base Length:
34 in
Recommended 12 In. Fixed Curb Item No.:
4HX50
Hz:
60
Mounting Location:
Roof
Shaft Dia. Wheel End:
1 in
Max. Inlet Temp.:
180 Degrees
Includes:
Drive Package, NEMA 1 Junction Box
Wheel Type:
Backward Inclined
Adj. 12 3/8H Roof Curb Stock No.:
4C455"
Dimension D:
5 3/4 in
Wheel Dia.:
24 1/2 in
Dimension B:
42 3/4 in
Max. BHP:
0.55
Bearing Type:
Regreasable Pillow Block
Standards:
AMCA Sound and Air, NEMA, UL/cUL 705
Includes Drive Package:
Yes
Frequency:
60 Hz
Resistance Properties:
Weather Resistant
Propeller Shaft Diameter:
1 in
Overall Length:
42 3/4 in
Airflow @ 0.000 in SP:
4,863 cfm
Current:
1.7 to 1.7/0.85 A
Housing Length:
42.8 in
Motor Location:
Out of Airstream
For High-Static Pressure Applications:
No
Assembly:
Unassembled
Nameplate Voltage:
208-230/460V AC
Housing Material Fabrication:
Spun
Maximum Static Pressure:
5/8 in wc
Sound Level:
10.5 sones @ 0.500 in SP and 5 ft, 11.2 sones @ 0.375 in SP and 5 ft, 12.1 sones @ 0.250 in SP and 5 ft, 12.8 sones @ 0.125 in SP and 5 ft, 13.0 sones @ 0.000 in SP and 5 ft, 9.7 sones @ 0.625 in SP and 5 ft
Base Shape:
Square
Housing Width:
42.8 in
Mount Type:
Roof Curb
Maximum Fan Speed:
640 RPM
Maximum Inlet Air Temperature:
180 Degrees F
Overall Diameter:
42 3/4 in
Safety Features:
Birdscreen, Windband
Exhaust Airflow @ 0.125 in SP:
4,654 cfm
Electrical Connection:
Power Cord
High-Efficiency Motor:
No
Wheel Diameter:
24 1/2 in
Motor Horsepower:
1/2 hp
Exhaust Airflow @ 0.000 in SP:
4,863 cfm
Base Diameter:
Not Applicable
Application:
Industrial and Commercial Applications
Motor Enclosure:
Open Dripproof
Exhaust Airflow @ 0.375 in SP:
4,120 cfm
Compatible Curb Manufacturer Part Number:
2RB80, 2ZV84, 3C438, 4C455, 4HX42, 4HX50
Exhaust Airflow @ 0.500 in SP:
3,702 cfm
Features:
Fully Rolled Windband Bead for Increased Stability and Easy Transport, Nonoverloading Centrifugal Wheel Design
For Air Type:
Clean Air
Includes Motor:
Yes
Damper Size:
27 x 27 in
Motor Speed:
1,725 RPM
Exhaust Airflow @ 0.250 in SP:
4,403 cfm
Overall Width:
42 3/4 in
Brake Horsepower:
11/20 hp
Package Quantity:
1
