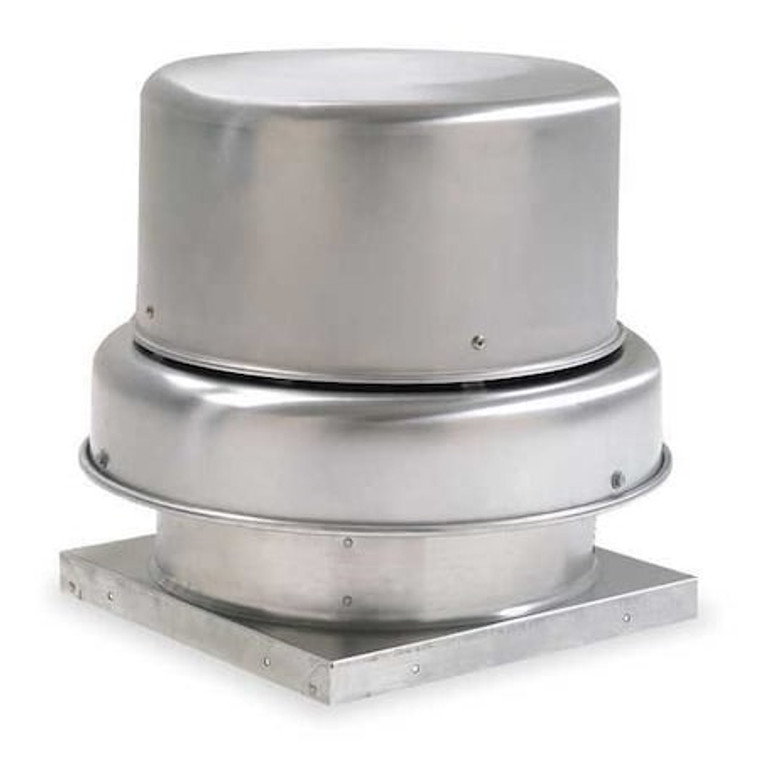

Downblast Vent, Belt Drive, 13-3/4 In - 7AX44

Downblast Vent, Belt Drive, 13-3/4 In - 7AX44

Dayton
SKU:
7AX44
|
UPC:
194484312046
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Centrifugal Downblast Roof Exhaust Fan, Drive Type Belt Drive, Assembly Unassembled, Wheel Diameter 13 3/4 in, Base Diameter Not Applicable, Base Length 19 in, Base Width 19 in, Base Shape Square, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 1/2 hp, Exhaust Airflow @ 0.000 in SP 2,391 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, For Air Type Clean Air, Includes Drive Package Yes, Includes Motor Yes, Mounting Location Roof
Additional Information
Country of Origin:
Multiple
Item - Roof Ventilators:
Downblast Ventilator
Drive Package With Motor Included:
Yes
Duty Rating - Roof Ventilators:
Standard
Drive Type - Roof Ventilators:
Belt Drive
Mounting Location - Roof Ventilators:
Roof
Number of Speeds:
1
Voltage - Roof Ventilators:
115V AC/208V AC/230V AC
Motor HP - Roof Ventilators:
1/2 hp
Base Size - Roof Ventilators:
19 in x 19 in
CFM @ 0.000-In. SP:
2391
Mounting Location:
Roof
CFM @ 1.500-In. SP:
1312
Wheel Type:
Backward Inclined
Hz:
60
Motor Voltage:
115/208/230
Dimension A:
19 in
Dimension B:
28 3/8 in
Dimension D:
4 in
CFM @ 0.625-In. SP:
2093
Drive Package Included:
Yes
Dimension C:
25 3/8 in
Shaft Dia. Wheel End:
3/4 in
Agency Compliance:
AMCA Sound & Air, UL/cUL 705
Recommended 12 In. Fixed Curb Item No.:
2RB75
CFM @ 0.500-In. SP:
2158
Overall Height:
27 1/8 in
Sones @ 0.125-In. SP @ 5 Ft.:
16.6
Phase:
1
Item:
Centrifugal Downblast Roof Exhaust Fan
Base Height:
1 3/4 in
CFM @ 0.375-In. SP:
2219
CFM @ 0.750-In. SP:
2020
Base Square Size - Roof Ventilators:
19 x 19""
RPM:
1685
Housing Material:
Aluminum
Wheel Dia.:
13 3/4 in
Drive Type:
Belt Drive
Sones @ 0.500-In. SP @ 5 Ft.:
15.7
Includes:
Drive Package, NEMA 1 Junction Box
Adj. 12 3/8H Roof Curb Stock No.:
2ZV82"
Assembled/Unassembled:
Unassembled
Max. BHP:
0.56
Motor HP:
1/2
Max. Inlet Temp.:
180 Degrees
Base Length:
19 in
Speed Controllable:
No
CFM @ 0.250-In. SP:
2279
Sones @ 0.250-In. SP @ 5 Ft.:
16.3
CFM @ 1.000-In. SP:
1857
Overall Dia.:
28 3/8 in
CFM @ 0.875-In. SP:
1946
Wheel Material:
Aluminum
CFM @ 0.125-In. SP:
2335
Base Width:
19 in
CFM @ 1.250-In. SP:
1654
Bearing Type:
Sealed Pillow Block
Standards:
AMCA Sound and Air, UL/cUL 705
Current:
7.6/3.7 to 3.8 A
Airflow @ 0.000 in SP:
2,391 cfm
Nameplate Voltage:
115/208-230V AC
Exhaust Airflow @ 0.375 in SP:
2,219 cfm
Motor Speed:
1,725 RPM
Motor Location:
Out of Airstream
Includes Drive Package:
Yes
Motor Enclosure:
Open Dripproof
Frequency:
60 Hz
Base Diameter:
Not Applicable
Overall Diameter:
28 3/8 in
Features:
Fresh Outside Air is Drawn in Under the Motor Cover to Maximize Motor Life, Fully Rolled Windband Bead for Increased Stability and Easy Transport, Nonoverloading Centrifugal Wheel Design
Overall Length:
28 3/8 in
Brake Horsepower:
14/25 hp
Includes Motor:
Yes
Housing Material Fabrication:
Spun
Maximum Static Pressure:
1 1/2 in wc
Overall Width:
28 3/8 in
Maximum Fan Speed:
1,685 RPM
Sound Level:
13.5 sones @ 1.500 in SP and 5 ft, 13.9 sones @ 1.250 in SP and 5 ft, 14.5 sones @ 1.000 in SP and 5 ft, 14.8 sones @ 0.875 in SP and 5 ft, 15.1 sones @ 0.750 in SP and 5 ft, 15.4 sones @ 0.625 in SP and 5 ft, 15.7 sones @ 0.500 in SP and 5 ft, 16.0
Safety Features:
Birdscreen, Windband
Application:
Industrial and Commercial Applications
Base Shape:
Square
Assembly:
Unassembled
Housing Length:
28.4 in
Exhaust Airflow @ 0.500 in SP:
2,158 cfm
High-Efficiency Motor:
No
Mount Type:
Roof Curb
For High-Static Pressure Applications:
No
Compatible Curb Manufacturer Part Number:
2RB75, 2ZV82
For Air Type:
Clean Air
Maximum Inlet Air Temperature:
180 Degrees F
Damper Size:
12 x 12 in
Motor Horsepower:
1/2 hp
Electrical Connection:
Power Cord
Propeller Shaft Diameter:
3/4 in
Exhaust Airflow @ 0.000 in SP:
2,391 cfm
Housing Width:
28.4 in
Spark Resistant Construction Type:
A
Wheel Diameter:
13 3/4 in
Exhaust Airflow @ 0.250 in SP:
2,279 cfm
Resistance Properties:
Weather Resistant
Exhaust Airflow @ 0.125 in SP:
2,335 cfm
Package Quantity:
1
