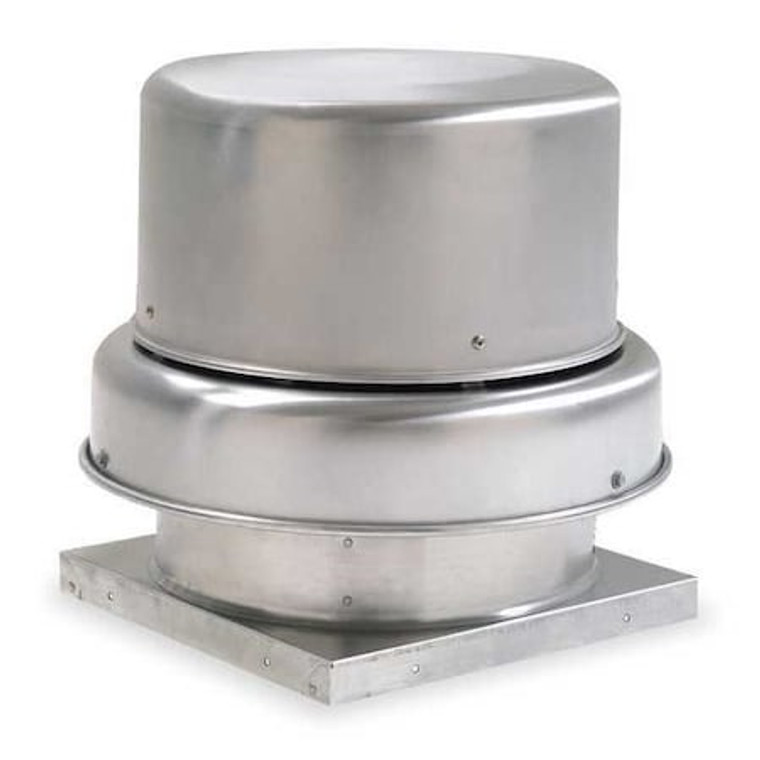

Downblast Vent, Belt Drive, 13-1/4 In - 7AF09
Centrifugal Downblast Roof Exhaust Fan, Drive Type Belt Drive, Assembly Unassembled, Wheel Diameter 13 1/4 in, Base Diameter Not Applicable, Base Length 22 in, Base Width 22 in, Base Shape Square, Nameplate Voltage 230/460V AC, Phase 3, Motor Horsepower 1/3 hp, Exhaust Airflow @ 0.000 in SP 1,880 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, For Air Type Flammable Vapor, Includes Drive Package Yes, Includes Motor Yes, Mounting Location Roof
- Country of Origin:
- Multiple
- Item - Roof Ventilators:
- Downblast Ventilator
- Drive Package With Motor Included:
- Yes
- Duty Rating - Roof Ventilators:
- Hazardous Location
- Drive Type - Roof Ventilators:
- Belt Drive
- Mounting Location - Roof Ventilators:
- Roof
- Number of Speeds:
- 1
- Voltage - Roof Ventilators:
- 230V AC/460V AC
- Motor HP - Roof Ventilators:
- 1/3 hp
- Base Size - Roof Ventilators:
- 22 in x 22 in
- CFM @ 0.000-In. SP:
- 1880
- Base Length:
- 22 in
- RPM:
- 1550
- CFM @ 0.500-In. SP:
- 1629
- Assembled/Unassembled:
- Unassembled
- Speed Controllable:
- No
- CFM @ 0.375-In. SP:
- 1696
- Includes:
- Hazardous Location Motor
- Housing Material:
- Aluminum
- Dimension A:
- 22 in
- Motor Voltage:
- 230/460
- Wheel Type:
- Backward Inclined
- Recommended 12 In. Fixed Curb Item No.:
- 2RB76
- Overall Dia.:
- 24 3/8 in
- Adj. 6 3/8H Roof Curb Stock No.:
- 4c453"
- CFM @ 1.000-In. SP:
- 1289
- Dimension D:
- 4 3/8 in
- Recommended 8 In. Fixed Curb Item No.:
- 4HX39
- Wheel Dia.:
- 13 1/4 in
- Motor HP:
- 1/3
- Hz:
- 60
- Mounting Location:
- Roof
- Max. Operating Amps:
- 1.2/0.6
- Agency Compliance:
- & G hazardous locations, F, Motor only UL Listed for Class I Groups C & D andClass II Groups E
- Max. Inlet Temp.:
- 180 Degrees
- CFM @ 0.250-In. SP:
- 1759
- Overall Height:
- 26 5/8 in
- Base Square Size - Roof Ventilators:
- 22 x 22""
- Item:
- Centrifugal Downblast Roof Exhaust Fan
- Sones @ 0.125-In. SP @ 5 Ft.:
- 14.5
- Dimension C:
- 24 7/8 in
- Wheel Material:
- Aluminum
- Phase:
- 3
- Drive Type:
- Belt Drive
- Sones @ 0.500-In. SP @ 5 Ft.:
- 14.0
- CFM @ 0.875-In. SP:
- 1390
- Adj. 12 3/8H Roof Curb Stock No.:
- 2ZV82"
- CFM @ 1.250-In. SP:
- 974
- Base Width:
- 22 in
- Base Height:
- 1 3/4 in
- Max. BHP:
- 0.35
- CFM @ 0.125-In. SP:
- 1820
- Dimension B:
- 24 3/8 in
- CFM @ 0.625-In. SP:
- 1555
- CFM @ 0.750-In. SP:
- 1475
- Shaft Dia. Wheel End:
- 3/4 in
- Drive Package Included:
- Yes
- Sones @ 0.250-In. SP @ 5 Ft.:
- 14.3
- Standards:
- AMCA Sound and Air, UL
- Bearing Type:
- Sealed Pillow Block
- Overall Length:
- 24 3/8 in
- Electrical Connection:
- Power Cord
- Frequency:
- 60 Hz
- Brake Horsepower:
- 9/25 hp
- Resistance Properties:
- Weather Resistant
- Exhaust Airflow @ 0.500 in SP:
- 1,629 cfm
- Exhaust Airflow @ 0.125 in SP:
- 1,820 cfm
- Exhaust Airflow @ 0.000 in SP:
- 1,880 cfm
- Current:
- 1.2/0.6 A
- Base Diameter:
- Not Applicable
- Motor Horsepower:
- 1/3 hp
- Hazardous Location Specification:
- Class I Group C, Class I Group D, Class II Group E, Class II Group F, Class II Group F
- Wheel Diameter:
- 13 1/4 in
- Assembly:
- Unassembled
- Housing Width:
- 24.4 in
- Housing Material Fabrication:
- Spun
- Maximum Fan Speed:
- 1,550 RPM
- Features:
- Nonoverloading Centrifugal Wheel Design
- Motor Location:
- Out of Airstream
- Application:
- Industrial and Commercial Applications
- Airflow @ 0.000 in SP:
- 1,880 cfm
- Mount Type:
- Roof Curb
- Exhaust Airflow @ 0.375 in SP:
- 1,696 cfm
- Safety Features:
- Birdscreen
- Nameplate Voltage:
- 230/460V AC
- For High-Static Pressure Applications:
- No
- Damper Size:
- 15 x 15 in
- Motor Speed:
- 1,725 RPM
- Housing Length:
- 24.4 in
- Base Shape:
- Square
- For Air Type:
- Flammable Vapor
- Propeller Shaft Diameter:
- 3/4 in
- Motor Enclosure:
- Totally Enclosed Nonventilated
- Sound Level:
- 12.4 sones @ 1.250 in SP and 5 ft, 12.9 sones @ 1.000 in SP and 5 ft, 13.0 sones @ 0.875 in SP and 5 ft, 13.5 sones @ 0.750 in SP and 5 ft, 13.8 sones @ 0.625 in SP and 5 ft, 14.0 sones @ 0.500 in SP and 5 ft, 14.2 sones @ 0.375 in SP and 5 ft, 14.3
- Overall Diameter:
- 24 3/8 in
- Compatible Curb Manufacturer Part Number:
- 2RB76, 2ZV82, 4C453, 4C670, 4HX39, 4HX47
- Maximum Inlet Air Temperature:
- 180 Degrees F
- Maximum Static Pressure:
- 1 1/4 in wc
- Includes Motor:
- Yes
- Includes Drive Package:
- Yes
- High-Efficiency Motor:
- No
- Overall Width:
- 24 3/8 in
- Exhaust Airflow @ 0.250 in SP:
- 1,759 cfm
- Package Quantity:
- 1
