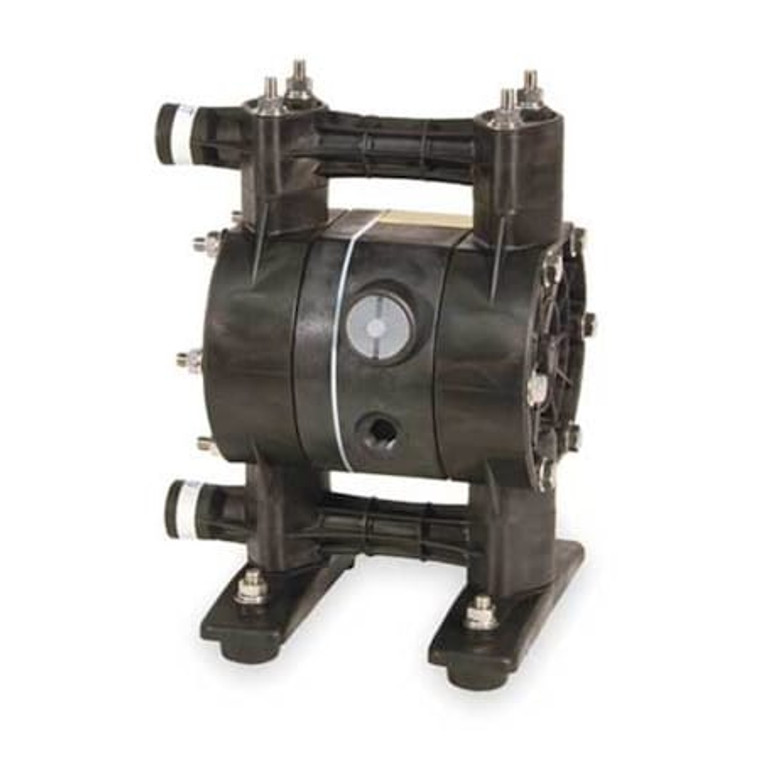

Double Diaphragm Pump, Kynar(R), Air Operated, PTFE, 15 GPM - 3HJV8

Double Diaphragm Pump, Kynar(R), Air Operated, PTFE, 15 GPM - 3HJV8

Dayton
SKU:
3HJV8
|
UPC:
190735289877
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Double Diaphragm Pump, Air Consumption (Maximum) 17 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material PVDF, Diaphragm Material PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 15 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1/2 in, Media Intake Connection Type NPT, Media Intake Location Bottom
Additional Information
Country of Origin:
Japan
Housing Material - Pumps:
Kynar(R)
Diaphragm Material - Pumps:
PTFE
Max. Flow:
15 gpm
Item - Air Operated Pumps:
Double Diaphragm Pump
Pump Operation Type:
Air
Max. Temp - Pumps:
212 Degrees F
Inlet/Outlet Size:
1/2 in
Connection Style:
NPT
Air Inlet Size:
1/4 in FNPT
Length:
8 21/32 in
Max. Temp.:
212 Degrees F
Ball Material:
PTFE
Self-Priming Dry:
8 ft
Max. Flow GPM:
15 gpm
Operation Type:
Air Operated
Body Material:
Kynar(R)
Manifold Connection:
Single Port
Max. Dia. Solids:
1/32 in
Valve Type:
Flat
Max. Operating Pressure:
100 psi
Diaphragm Material:
PTFE
Manufacturers Warranty Length:
1 yr
Height:
11 11/16 in
Check Seat Material:
PVDF
Self-Priming Wet:
28 ft
Item:
Double Diaphragm Pump
Width:
7 in
Overall Width:
7 in
Overall Length:
8.7 in
Overall Height:
11.7 in
NPSHr:
Not Applicable
Flow Rate @ 20 psi:
6 gpm
Flow Rate @ 40 psi:
10 gpm
Media Temperature (Maximum):
212 Degrees F
Air Intake Pressure (Maximum):
100 psi
Media Discharge Connection Type:
NPT
Priming:
Self-Priming
Flow Rate @ 120 psi:
Not Applicable
Series Family:
Not Applicable
Operating Pressure (Maximum):
100 psi
Manifold Connection Type:
NPT
Air Consumption (Maximum):
17 scfm
Mounting Hardware Material:
Stainless Steel, Steel
Pump Assembly Type:
Bolt
Nameplate Voltage:
Not Applicable
Flow Rate (Maximum):
15 gpm
Solid Diameter (Maximum):
0.03 in
Duty Cycle:
Continuous
Media Discharge Connection Size:
1/2 in
Flow Rate @ 80 psi:
12.7 gpm
Non-Wetted Housing Material:
Plastic
Flow Rate @ 90 psi:
15 gpm
Wetted Housing Material:
PVDF
Flow Rate @ 70 psi:
12.5 gpm
Valve Material:
PTFE
Feet of Head (Maximum):
Not Applicable
For Use With Potable Systems:
No
Flow Rate @ 100 psi:
15 gpm
Media Intake Connection Size:
1/2 in
Air Intake Connection Size:
1/4 in
Flow Rate @ 30 psi:
10 gpm
Flow Rate @ 50 psi:
12.5 gpm
Flow Rate @ 60 psi:
12.5 gpm
Air Intake Connection Type:
FNPT
Media Discharge Location:
Top
Flow Rate @ 15 psi:
6 gpm
Series:
Not Applicable
Media Intake Location:
Bottom
Flow Rate @ 10 psi:
6.5 gpm
Viscosity (Maximum):
15,000 cps
Media Intake Connection Type:
NPT
Media Temperature (Minimum):
40 Degrees F
Phase:
Not Applicable
Package Quantity:
1
