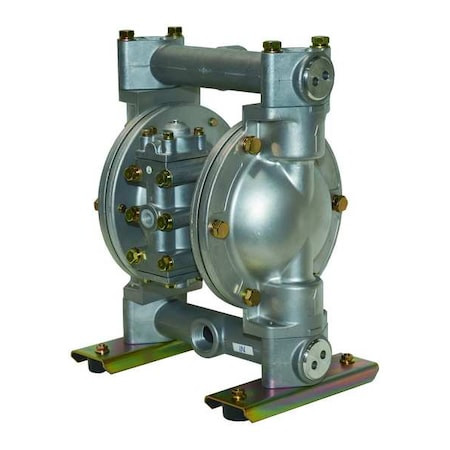

Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 35 GPM - 6PY54

Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 35 GPM - 6PY54

Dayton
SKU:
6PY54
|
UPC:
190735370759
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Double Diaphragm Pump, Air Consumption (Maximum) 55 scfm, Air Intake Connection Size 3/8 in, Air Intake Connection Type FNPT, Check Seat Material 316 Stainless Steel, Diaphragm Material PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 35 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1 in, Media Intake Connection Type FNPT, Media Intake Location Bottom
Additional Information
Country of Origin:
Japan
Housing Material - Pumps:
Aluminum
Diaphragm Material - Pumps:
PTFE
Max. Flow:
35 gpm
Item - Air Operated Pumps:
Double Diaphragm Pump
Pump Operation Type:
Air
Max. Temp - Pumps:
212 Degrees F
Inlet/Outlet Size:
1 in
Connection Style:
NPT
Air Inlet Size:
3/8 in FNPT
Max. Operating Pressure:
100 psi
Manufacturers Warranty Length:
1 yr
Valve Type:
Ball
Manifold Connection:
Single Port
Ball Material:
PTFE
Check Seat Material:
316 Stainless Steel
Operation Type:
Air Operated
Length:
11 19/64 in
Self-Priming Dry:
15 ft
Body Material:
Aluminum
Max. Dia. Solids:
3/16 in
Height:
15 in
Item:
Double Diaphragm Pump
Width:
12 1/2 in
Max. Temp.:
212 Degrees F
Self-Priming Wet:
28 ft
Max. Flow GPM:
35 gpm
Diaphragm Material:
PTFE
Overall Width:
12.5 in
Overall Height:
15 in
Overall Length:
11.3 in
Flow Rate @ 90 psi:
Not Applicable
Flow Rate @ 60 psi:
31 gpm
Flow Rate @ 70 psi:
Not Applicable
Nameplate Voltage:
Not Applicable
Media Discharge Connection Type:
NPT
NPSHr:
Not Applicable
Media Intake Connection Size:
1 in
Series Family:
Not Applicable
Manifold Connection Type:
NPT
Non-Wetted Housing Material:
Aluminum
Mounting Hardware Material:
Stainless Steel, Steel
Flow Rate @ 120 psi:
Not Applicable
Flow Rate @ 10 psi:
Not Applicable
Wetted Housing Material:
Aluminum
Media Discharge Location:
Top
Media Temperature (Maximum):
212 Degrees F
Valve Material:
PTFE
Media Intake Connection Type:
FNPT
Air Intake Connection Type:
FNPT
Series:
Not Applicable
Air Intake Connection Size:
3/8 in
Air Consumption (Maximum):
55 scfm
Feet of Head (Maximum):
Not Applicable
Flow Rate @ 30 psi:
Not Applicable
Flow Rate @ 100 psi:
35 gpm
Media Intake Location:
Bottom
Media Temperature (Minimum):
40 Degrees F
For Use With Potable Systems:
No
Pump Assembly Type:
Bolt
Duty Cycle:
Continuous
Flow Rate @ 15 psi:
Not Applicable
Flow Rate @ 40 psi:
27 gpm
Viscosity (Maximum):
40,000 cps
Solid Diameter (Maximum):
0.19 in
Flow Rate @ 20 psi:
20 gpm
Priming:
Self-Priming
Flow Rate @ 80 psi:
33 gpm
Operating Pressure (Maximum):
100 psi
Flow Rate @ 50 psi:
Not Applicable
Flow Rate (Maximum):
35 gpm
Air Intake Pressure (Maximum):
100 psi
Media Discharge Connection Size:
1 in
Phase:
Not Applicable
Package Quantity:
1
