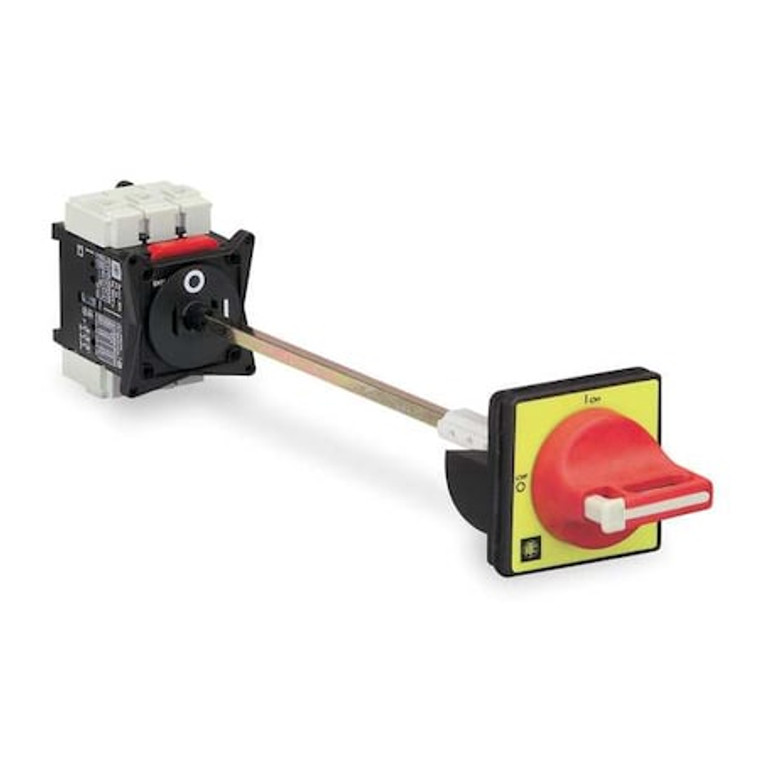

Door Mount Loadbreak Switch, 3 Pole, 25A - VCCF2

Door Mount Loadbreak Switch, 3 Pole, 25A - VCCF2

Square D
SKU:
VCCF2
|
UPC:
785901449324
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Load Break Switch, Contact Form 3PST-NO, Current Rating 25 A, Features 4 Screw Fixing Handle, For Fuse Class Not Applicable, Handle Color Red, Height 3 in, Horsepower @ 240V AC 5 hp, Horsepower @ 480V AC 10 hp, Horsepower @ 600V AC 15 hp, Includes 320mm Extension Shaft, Door Interlock Plate, Handle, Line Terminal Shroud, Mounting Handle Operator, IP Rating IP20; IP65, Mounting Style Rear Panel, Number of Poles 3, Phase Three, Protection Method Non-Fusible, Resistance Properties Fire-Resistant
Additional Information
Country of Origin:
Czechia
Item:
Load Break Switch
Amps AC:
25 A
Number of Poles:
3
HP @ 240V:
5 hp
HP @ 480V:
10 hp
Includes:
320mm Extension Shaft, Door Interlock Plate, Handle, Line Terminal Shroud, Mounting Handle Operator
Protection Method:
Non-Fusible
Voltage:
690V AC
Phase:
Three
Contact Form:
3PST-NO
Application:
For Use Where Motor Branch Circuit Protection is Provided Upstream of the Switch
Fusible / Nonfusible:
Nonfusible
Shaft Length:
13 in
Handle Color:
Red
Standards:
CCC, CSA Certified, GL, IEC 60947-3, UKCA, UL Listed
HP @ 600V:
15 hp
Height:
3 in
Resistance Properties:
Fire-Resistant
Width:
2 1/4 in
Mounting Style:
Rear Panel
Horsepower @ 480V AC:
10 hp
IP Rating:
IP20; IP65
For Fuse Class:
Not Applicable
Current Rating:
25 A
Horsepower @ 240V AC:
5 hp
Features:
4 Screw Fixing Handle
Horsepower @ 600V AC:
15 hp
Handle Front Plate Colour:
yellow
Control Type:
rotary handle
[Icw] Rated Short-Time Withstand Current:
480 A 400 V 1 s
Handle Colour:
red
Marking:
0 - 1
Making Capacity:
400 A 400 V AC-21A || 400 A 400 V AC-22A || 400 A 400 V AC-23A
Compatibility Code:
main switch disconnector
[Ith] Conventional Free Air Thermal Current:
40 A
Mechanical Durability:
100000 cycles
Rated Operational Power In W:
11 kW 690 V AC-3) || 15 kW 690 V AC-23A) || 11 kW 400 to 415 V AC-3) || 15 kW 500 V AC-3) || 18.5 kW 500 V AC-23A) || 5.5 kW 230 to 240 V AC-3) || 7.5 kW 230 to 240 V AC-23A) || 15 kW 400 to 415 V AC-23A)
Fire Resistance:
960°C IEC 60695-2-1
Fixing Mode:
by 4 screws handle || by clips switch || by screws switch
Ambient Air Temperature For Operation:
-20-50°C
Protective Treatment:
TC
Product Or Component Type:
emergency stop switch disconnector
Product Certifications:
UL || CSA || CCC || GL || UKCA
Poles Description:
3P
Device Composition:
handle || shaft extension || switch
Mechanical Robustness:
vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Rated Conditional Short-Circuit Current:
10 kA 400 V 50 A aM || 10 kA 400 V 50 A gG
Breaking Capacity:
320 A 400 V AC-21A) || 320 A 400 V AC-22A) || 320 A 400 V AC-23A)
Suitability For Isolation:
yes
[Ie] Rated Operational Current:
29 A AC-23 Ue
Range:
TeSys
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz
Rotary Handle Mounting Style:
extended
[Ithe] Conventional Enclosed Thermal Current:
32 A
Contacts Type And Composition:
3 NO
Intermittent Duty Class:
30
Connections - Terminals:
power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP65
[Icm] Rated Short-Circuit Making Capacity:
1 kA 400 V at Ipeak
Base Dimension:
60 x 60 mm
Tightening Torque:
power circuit 2.1-2.1 N.m screw clamp terminals
Product Name:
TeSys VARIO
Device Short Name:
VCCF
Network Type:
AC || DC
Performance Level:
high performance
[Uimp] Rated Impulse Withstand Voltage:
8 kV
Electrical Durability:
100000 cycles AC-21 || 30000 cycles DC-1 to 5
Rotary Handle Padlocking:
1 to 3 padlocks 4-8 mm
Mounting Support:
handle door || switch symmetrical rail || switch plate
Package Quantity:
1
