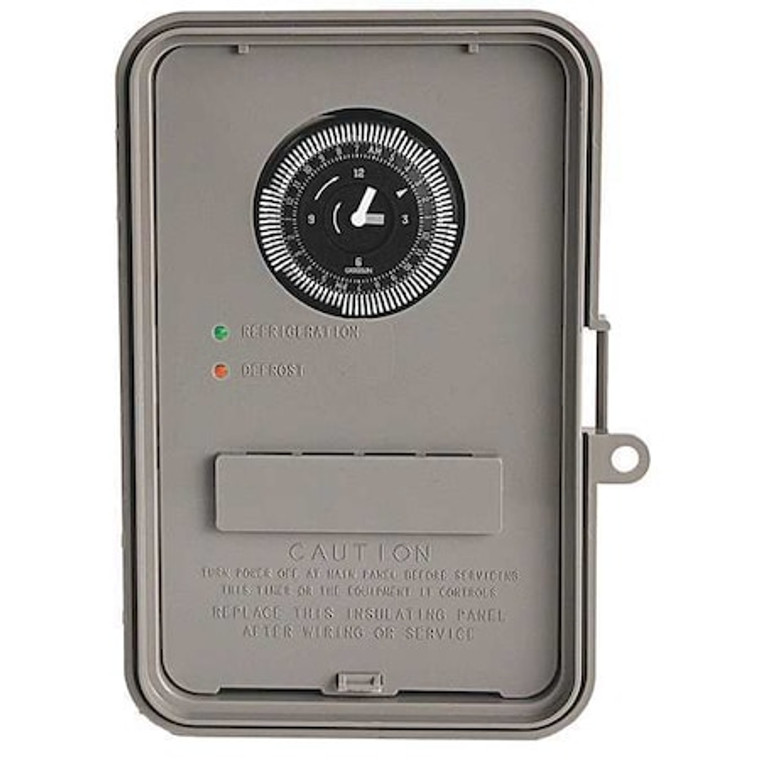

Defrost Timer, 120/240V, 40A, 1 NO, 1 NC - DTAV40

Defrost Timer, 120/240V, 40A, 1 NO, 1 NC - DTAV40

Intermatic
SKU:
DTAV40
|
UPC:
78275125162
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Defrost Control Timer, Voltage 120/240V AC, Amps 40 A, Contact Type 1 NO/1 NC, Max. On/Off Cycles 48 Per Day, Defrost Time (Minutes) 15 to 1425, Enclosure Material Plastic, Termination Type Temperature or Pressure, Time, Defrost Initiation Time
Additional Information
Country of Origin:
Mexico
Item:
Defrost Control Timer
Voltage:
120/240V AC
Amps:
40 A
Contact Type:
1 NO/1 NC
Max. On/Off Cycles:
48 Per Day
Defrost Time (Minutes):
15 to 1425
Enclosure Material:
Plastic
Termination Type:
Temperature or Pressure, Time
Defrost Initiation:
Time
Wiring Option:
Screw box lug terminals up to one #8 AWG wire
Has Realtime Clock Face CVL:
Yes
Voltage Selection Type:
Auto Voltage
Enclosure Type:
Outdoor type 3R plastic
Resistive Load Ratings:
40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz
Packaging Applications:
Hospitals; Universities; Convenience Stores; Restaurants; Food Storage Warehouses; Food Processing Facilities; Food Service Facilities; Nursing Homes; Medium and Low-Temperature Commercial Refrigeration Systems; Healthcare Facilities
Time Initiation:
Time
Solutions:
Refrigeration
On Off Operations:
48
Motor Load Ratings:
1 HP, 16 FLA, 96 LRA @ 120 VAC; 2 HP, 12 FLA, 72 LRA @ 240 VAC
Mechanism Type:
Electromechanical
Wire Size Max:
#8 AWG
Minimum On Off Time:
15 min
Operating Humidity:
0-95% RH, Non-condensing
Operating Temperature Max:
104°C
Backup Protection Time:
None
Applications:
Walk-in Refrigeration Cooler/Freezer
Has Captive Trippers CVL:
Yes
UL Cerfication File Number:
#E10694
Input Voltage Ranges:
120/240 VAC, 60 Hz
Application Compatibilities:
Commercial Refrigeration; Walk-in Freezer; Walk-in Cooler
LED Defrost Indicator:
Red
Time Termination:
Temperature; Pressure; Time
Operating Temperature Min:
-40°C
Electrical Life:
50, 000 operations at full load
Switch Type:
1 SPDT, 1 NC SPST
Maximum On Off Time:
23 hours, 45 min
UL Certification:
cULus
Resistive Load Ratings Ranges:
40 A, 120-240 VAC
Mounting Options:
Bracket
Market:
Commercial
Operating Temperature Max (°F):
104
Has Captive Trippers:
Yes
Input Voltage Range(s):
120/240 VAC, 60 Hz
Features:
Improved relay performance; Automatically detects and adjusts input voltages (120-240 VAC); Moisture resistant conformal-coated board; Time Initiated, Temperature, Pressure or Time Terminated; Captive trippers are field adjustable to 15-minute interv
Defrost LED Indicator:
Red
Motor Load Ratings Ranges:
1 HP, 16 FLA, 96 LRA @ 120 VAC; 2 HP, 12 FLA, 72 LRA @ 240 VAC
Maximum ON/OFF Times:
23 hours, 45 min
Operating Temperature Min (°F):
-40
Resistive:
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Minimum ON/OFF Times:
15 min
Has Real-time Clock Face:
Yes
Series:
DTAV40
Current Rating - Maximum:
40 A
Defrost Time - Maximum:
24 hr
NEMA Enclosure Rating:
3R
Standards:
cULus, RoHS
Operating Temperature - Minimum:
-40 Degrees F
Horsepower @ 120V - Maximum:
1 hp
Defrost Time - Minimum:
15 min
Initiation:
Time
Termination:
Pressure or Temperature or Time
Display Type:
Mechanical
Contact Form:
SPST-NC
Horsepower @ 240V - Maximum:
2 hp
AC Voltage Rating:
120-240V AC
Operating Temperature - Maximum:
140 Degrees F
On/Off Cycles - Maximum:
48
Package Quantity:
1
