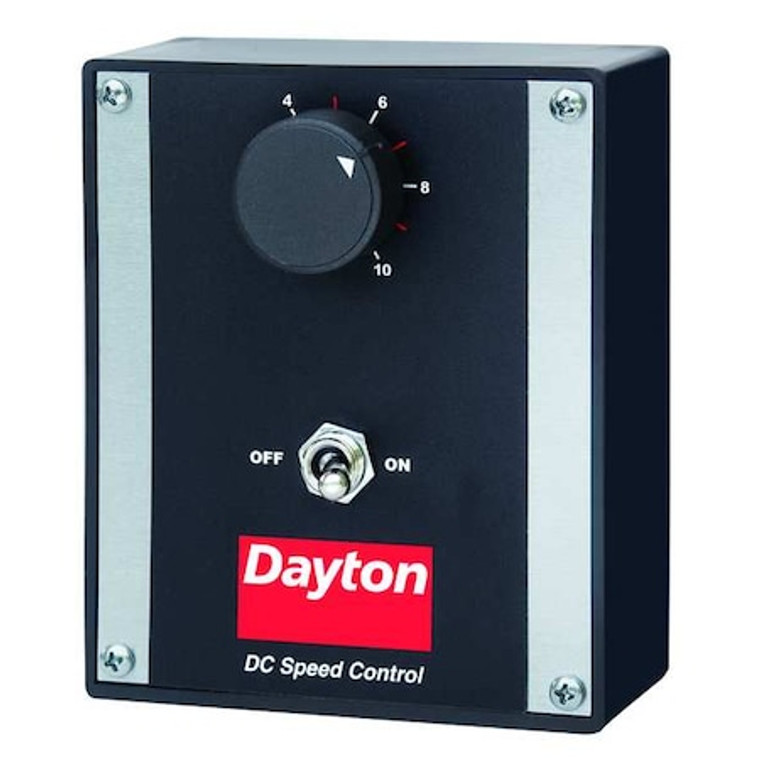

DC Speed Control, SCR, Enclosed, NEMA 1, 2A Max Current, 0 to 90/180V DC, ON/OFF, 25:1 - 4Z527

DC Speed Control, SCR, Enclosed, NEMA 1, 2A Max Current, 0 to 90/180V DC, ON/OFF, 25:1 - 4Z527

Dayton
SKU:
4Z527
|
UPC:
190735340837
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
DC Speed Control, DC Speed Control SCR, NEMA 1, Lower Voltage Motor Output Power 1/50 to 1/6 hp, AC Input Voltage 120/240V AC, Voltage Output 0 to 90/180V DC, Speed Range 25:1, Rotation Single Direction, External Switches ON/OFF
Additional Information
Country of Origin:
United States
Item:
DC Speed Control
Enclosure:
NEMA 1
Max. Amps:
2 A
Voltage Output:
0 to 90/180V DC
Speed Range:
25
Rotation:
Single Direction
External Switches:
ON/OFF
AC Input Voltage:
120/240V AC
DC Speed Control:
SCR
Current/Torque Limit:
None
Depth:
1.88 in
HP @ Higher Volts:
1/25 to 1/3
Width:
4.25 in
Height:
5 in
Shunt Wound Volts:
100/200V DC
IR Compensation:
Adjustable
Speed Regulation:
+/-1% of Motor Base Speed
Standards:
cULus Listed
Linear Acceleration:
Fixed 0.5 sec
Accepts Tach Feedback:
No
Dynamic Braking:
No
HP @ Lower Volts:
1/50 to 1/6
For Use With:
90/180V DC Motors
Operating Temp.:
-10 Degrees to 45 Degrees C
Power On Light:
No
Includes:
Run/Stop Switch, Built-in Transient and Surge Suppression
Higher Voltage Motor Output Power:
1/25 to 1/3 hp
Lower Voltage Motor Output Power:
1/50 to 1/6 hp
Overall Depth:
1.88 in
Overall Height:
5 in
Enclosure Type:
Enclosed
Series:
Series 15
Operating Temperature:
-10 Degrees to 45 Degrees C
Shunt Wound Voltage:
100/200V DC
Maximum Current:
2 A
Enclosure Rating:
NEMA 1
Maximum Linear Acceleration:
0.5 sec
NEMA Rating:
NEMA 1
Overall Width:
4.25 in
Product Type:
DC Speed Control
Package Quantity:
1
