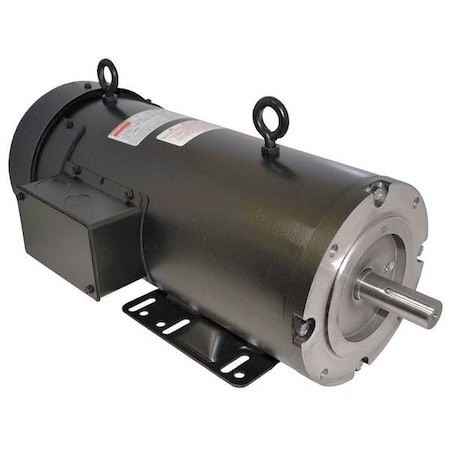

DC Motor, PM, TEFC, 3 HP, 1750 rpm, 180VDC - 6Z791A

DC Motor, PM, TEFC, 3 HP, 1750 rpm, 180VDC - 6Z791A

Dayton
SKU:
6Z791A
|
UPC:
190735374900
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 3 HP, Nameplate RPM 1,750, Voltage 180V DC, 15.0 A Full Load Amps, 143/5TC Frame, Full Load Torque 108.2 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Shaft Dia. 7/8 in, Motor Bearings Ball, Shaft Length 2 1/2 in, Motor Shaft Design Keyed
Additional Information
Country of Origin:
United States
Item:
DC Permanent Magnet Motor
HP:
3
Voltage:
180V DC
Nameplate RPM:
1,750
Shaft Dia.:
7/8 in
Frame:
143/5TC
Full Load Amps:
15.0 A
RPM Range:
1,701-1,800
Motor Thermal Protection:
None
Rotation:
CW/CCW
Overall Length:
22 5/16 in
Motor Mounting Type:
Face/Base
Motor Application:
General Purpose
Bearings:
Ball
Ins. Class:
H
Max. Ambient Temp.:
40 Degrees C
Shaft Length:
2 1/2 in
Motor Design:
Permanent Magnet DC
Voltage Compatibility:
180V DC
Motor Enclosure Design:
Totally Enclosed Fan-Cooled
Standards:
UL Recognized (E47479)
RPM Group:
1701-1800
Full Load Torque:
108.2 in-lb
Motor Bearings:
Ball
Motor Shaft Design:
Keyed
Motor Shaft Rotation:
CW/CCW
Motor Service Factor:
1
Package Quantity:
1
