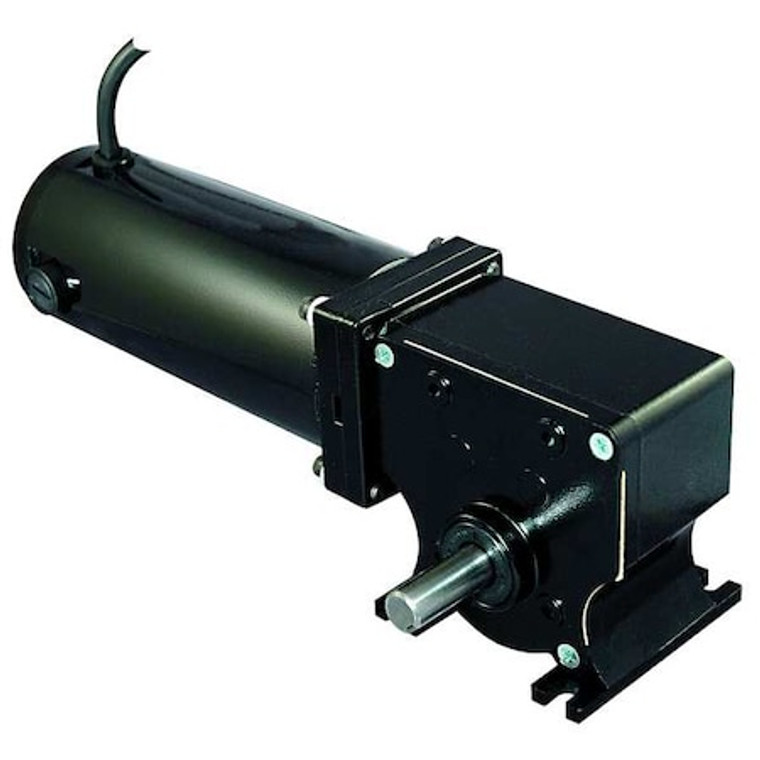

DC Gearmotor, RPM 54, 12VDC - 5LAF7
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
DC Gearmotor, RPM 54, 12VDC - 5LAF7
DC Gearmotor, Shaft Orientation Right Angle, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 12V DC, Motor Type Permanent Magnet DC, Nameplate Speed 54 RPM, Maximum Torque 165 in-lb, Overhung Load Capacity 175 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 28:1, Input Horsepower 1/8 hp, Output Shaft Diameter 5/8 in, Bearing Type Ball on Motor, Roller on Case
- Country of Origin:
- United States
- Gearmotor Type:
- DC Gearmotor
- Gearmotor Voltage:
- 12V DC
- Max. Torque:
- 165 in-lb
- Gearmotor Shaft Type:
- Single Right
- Gearmotor Shaft Orientation:
- Right Angle
- Rear Shaft Encoder/Pulse Generator Mounting:
- No
- Nameplate RPM:
- 54 RPM
- Gearmotor Enclosure:
- Totally Enclosed Nonventilated
- Gearmotor Mounting Position:
- All Angle
- Overhung Load:
- 175 lb
- Reversible Shaft Output:
- No
- Lubrication:
- Gear Oil
- Tachometer Feedback:
- No
- Input HP:
- 1/8
- Seals:
- Lip
- Brushes:
- Replaceable Externally
- Standards:
- C-UL Recognized, UL Recognized
- Full Load Amps:
- 16 A
- Insulation Class:
- F
- Motor Type:
- Permanent Magnet DC
- Mounting:
- All Position
- Thermal Protection:
- None
- Keyway Size:
- 3/16 Sq"
- Voltage:
- 12VDC
- Replacement Brushes:
- 33K907
- Bearings:
- Ball On Motor, Roller On Case
- Enclosure:
- TENV
- Keyway Size Type:
- 3/16 sq in
- Finish:
- Matt Black
- Shaft Orientation:
- Right Angle
- Shaft Length (Dimension V):
- 1-1/2";Housing Material=Die Cast Zinc and Steel"
- Max. Ambient Temp.:
- 40 Degrees C
- Item:
- DC Gearmotor
- Gear Case:
- Die Cast Zinc
- RPM Range:
- 51 to 75
- Length Less Shaft:
- 11.75 in
- Shaft Dia. (Dimension U):
- 5/8";Gear Type=Bevel, Spur"
- Gear Ratio:
- 28
- Gearmotor Rotation:
- CW/CCW
- Rotation:
- CW/CCW
- Shaft:
- Single
- Overall Length:
- 11.68 in
- Gear Material:
- Powdered Metal, Steel
- Housing Material Finish:
- Matt Black
- Bearing Type:
- Ball on Motor, Roller on Case
- Nameplate Speed:
- 54 RPM
- Mounting Orientation:
- Any Angle
- Overhung Load Capacity:
- 175 ft-lb
- Output Shaft Length:
- 1 1/2 in
- Output Shaft Diameter:
- 5/8 in
- Motor Enclosure:
- Totally Enclosed Nonventilated
- Maximum Torque:
- 165 in-lb
- Full Load Current:
- 16 A
- Seal Type:
- Lip
- Operating Voltage:
- 12V DC
- Replaceable Motor Brushes:
- Yes
- Input Horsepower:
- 1/8 hp
- Maximum Ambient Temperature:
- 40 Degrees C
- Keyway Type:
- 3/16 sq in
- Package Quantity:
- 1
