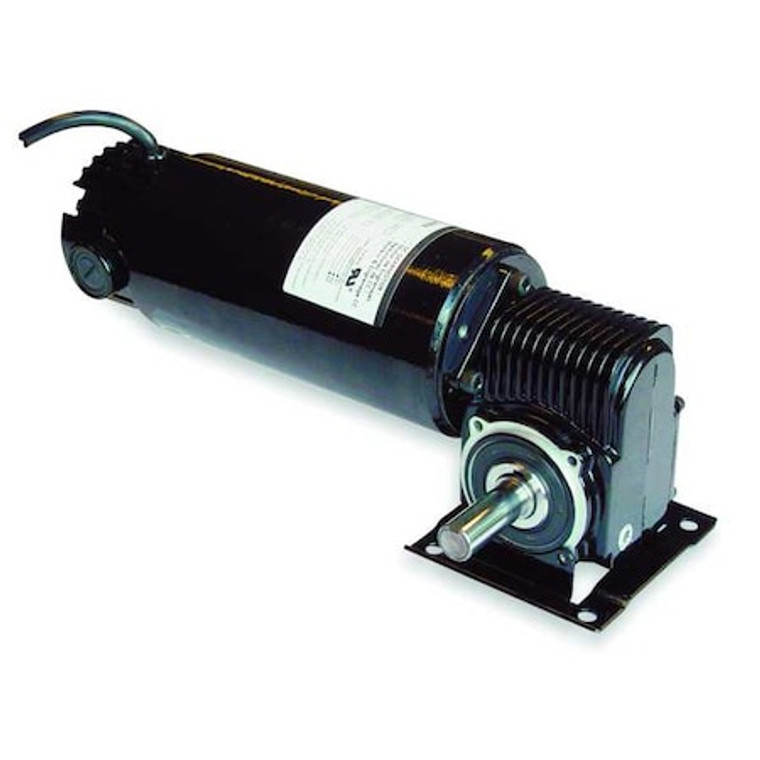

DC Gearmotor, 94.0 in-lb Max. Torque, 30 RPM Nameplate RPM, 90V DC Voltage - 3XA82

DC Gearmotor, 94.0 in-lb Max. Torque, 30 RPM Nameplate RPM, 90V DC Voltage - 3XA82

Dayton
SKU:
3XA82
|
UPC:
190735295885
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
DC Gearmotor, Shaft Orientation Right Angle, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 30 RPM, Maximum Torque 94 in-lb, Overhung Load Capacity 175 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 60:1, Input Horsepower 1/8 hp, Output Shaft Diameter 5/8 in, Bearing Type Oversized Ball
Additional Information
Country of Origin:
United States
Item:
DC Gearmotor
Gearmotor Voltage:
90V DC
Gearmotor Type:
DC Gearmotor
Max. Torque:
94 in-lb
Gearmotor Shaft Type:
Single Right
Gearmotor Shaft Orientation:
Right Angle
Nameplate RPM:
30 RPM
Gearmotor Enclosure:
Totally Enclosed Nonventilated
Gearmotor Rotation:
CW/CCW
Gearmotor Mounting Position:
All Angle
Full Load Amps:
1.28 A
Keyway Size Type:
3/16 sq in x 1 in
Standards:
C-UL Recognized, UL Recognized
Input HP:
1/8
Replacement Brushes:
6YHY6
Voltage:
90VDC
Insulation Class:
F
Gear Material:
Bronze Alloy Output Gear, Hardened Steel Worm
Brushes:
Externally Replaceable
Reversible Shaft Output:
Yes
Gear Case:
Die Cast Aluminum
Overhung Load:
175 lb
Shaft Length (Dimension V):
1 1/2 in
Gear Ratio:
60
Rear Shaft Encoder/Pulse Generator Mounting:
Yes
Lubrication:
Permanent Heavy Fluid Gear Oil
Rotation:
CW/CCW
Max. Ambient Temp.:
40 Degrees C
Shaft Orientation:
Right Angle
Mounting:
All Position
Motor Type:
Permanent Magnet DC
Bearings:
Oversized Ball
Overall Length:
9.88 in
Keyway Size:
3/16 Square x 1""
Shaft Dia. (Dimension U):
5/8 in
Height (Dimension O):
4.9375 in
Housing Material:
Aluminum
Tachometer Feedback:
Yes
RPM Range:
16 to 30
Enclosure:
TENV
Seals:
Lip Type on Input and Output Shaft
Finish:
Powder Coated Gloss Black
Thermal Protection:
None
Gear Type:
Worm
Includes:
18 Flexible Neck"
Overall Height:
4.94 in
Nameplate Speed:
30 RPM
Mounting Orientation:
Any Angle
Maximum Ambient Temperature:
40 Degrees C
Output Shaft Length:
1 1/2 in
Full Load Current:
1.28 A
Keyway Type:
3/16 sq in x 1 in
Seal Type:
Lip Type on Input and Output Shaft
Input Horsepower:
1/8 hp
Housing Material Finish:
Powder Coated Gloss Black
Maximum Torque:
94 in-lb
Replaceable Motor Brushes:
Yes
Motor Enclosure:
Totally Enclosed Nonventilated
Output Shaft Diameter:
5/8 in
Bearing Type:
Oversized Ball
Operating Voltage:
90V DC
Overhung Load Capacity:
175 ft-lb
Package Quantity:
1
