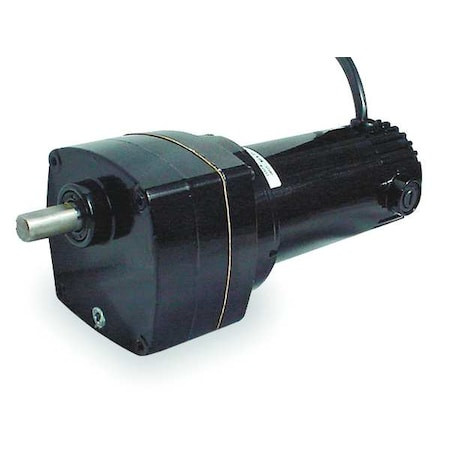

DC Gearmotor, 83.0 in-lb Max. Torque, 71 RPM Nameplate RPM, 90V DC Voltage - 2H563

DC Gearmotor, 83.0 in-lb Max. Torque, 71 RPM Nameplate RPM, 90V DC Voltage - 2H563

Dayton
SKU:
2H563
|
UPC:
190735219249
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 71 RPM, Maximum Torque 83 in-lb, Overhung Load Capacity 230 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 25:1, Input Horsepower 1/10 hp, Output Shaft Diameter 1/2 in, Bearing Type Ball on Motor, Needle Throughout
Additional Information
Country of Origin:
United States
Item:
DC Gearmotor
Gearmotor Voltage:
90V DC
Gearmotor Type:
DC Gearmotor
Max. Torque:
83 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
71 RPM
Gearmotor Enclosure:
Totally Enclosed Nonventilated
Gearmotor Rotation:
CW/CCW
Length Less Shaft:
8.75 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
1.08 A
Standards:
C-UL Recognized, UL Recognized
Input HP:
1/10
Rear Shaft Encoder/Pulse Generator Mounting:
Yes
Replacement Brushes:
6YHY6
Reversible Shaft Output:
No
Thermal Protection:
None
Housing Material:
Aluminum
Gear Ratio:
25
Enclosure:
TENV
Shaft Length (Dimension V):
1";Rotation=CW/CCW"
Lubrication:
Permanent Heavy Fluid Gear Oil
Overhung Load:
230 lb
Dimension X:
7.94";Overall Length=9.75 in"
Bearings:
Ball on Motor, Needle Throughout
Motor Type:
Permanent Magnet DC
Tachometer Feedback:
Yes
Brushes:
Externally Replaceable
Gear Case:
Die Cast Aluminum
Voltage:
90VDC
Gear Material:
Hardened Steel
Shaft Dia. (Dimension U):
1/2 in
Dimension D:
3.15 in
Max. Ambient Temp.:
40 Degrees C
Gear Type:
Helical, Spur
Dimension L:
8 39/50 in
Mounting:
All Position
Seals:
Spring Loaded Lip Type on Input and Output Shaft
Shaft Orientation:
Parallel
RPM Range:
51 to 75
Bearing Type:
Ball on Motor, Needle Throughout
Output Shaft Diameter:
1/2 in
Output Shaft Length:
1 in
Replaceable Motor Brushes:
Yes
Motor Enclosure:
Totally Enclosed Nonventilated
Maximum Ambient Temperature:
40 Degrees C
Mounting Orientation:
Any Angle
Nameplate Speed:
71 RPM
Overhung Load Capacity:
230 ft-lb
Input Horsepower:
1/10 hp
Seal Type:
Spring Loaded Lip Type on Input and Output Shaft
Seal Material:
Plastic
Full Load Current:
1.08 A
Maximum Torque:
83 in-lb
Operating Voltage:
90V DC
Package Quantity:
1
