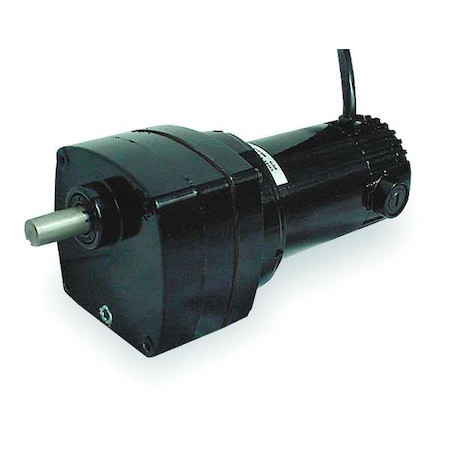

DC Gearmotor, 74.0 in-lb Max. Torque, 37 RPM Nameplate RPM, 90V DC Voltage - 6Z914

DC Gearmotor, 74.0 in-lb Max. Torque, 37 RPM Nameplate RPM, 90V DC Voltage - 6Z914

Dayton
SKU:
6Z914
|
UPC:
190735375082
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 37 RPM, Maximum Torque 74 in-lb, Overhung Load Capacity 90 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 49:1, Input Horsepower 1/40 hp, Output Shaft Diameter 1/2 in, Bearing Type Ball on Motor, Needle on Case Output Shaft
Additional Information
Country of Origin:
United States
Item:
DC Gearmotor
Gearmotor Voltage:
90V DC
Gearmotor Type:
DC Gearmotor
Max. Torque:
74 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
37 RPM
Gearmotor Enclosure:
Totally Enclosed Nonventilated
Gearmotor Rotation:
CW/CCW
Length Less Shaft:
7.5 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
0.62 A
Standards:
C-UL Recognized, UL Recognized
Input HP:
1/20
Overall Length:
8.5 in
Motor Type:
Permanent Magnet DC
Shaft Length (Dimension V):
1";Mounting=All Position"
Gear Material:
Steel (1st Stage Helical), Steel or Heat Treated Powdered Metal (Subsequent Stages Spur)
Gear Type:
Helical, Spur
Shaft Dia. (Dimension U):
1/2";Gear Ratio=49"
Voltage:
90VDC
Lubrication:
Permanent Heavy Fluid Gear Oil
Replacement Brushes:
6YHY3
Seals:
Spring Loaded Lip Type on Input and Output Shaft
Max. Ambient Temp.:
40 Degrees C
Brushes:
Externally Replaceable
Tachometer Feedback:
Yes
RPM Range:
31 to 50
Reversible Shaft Output:
No
Rear Shaft Encoder/Pulse Generator Mounting:
Yes
Overhung Load:
90 lb
Thermal Protection:
None
Dimension L:
5 1/30";Dimension XL=7.48""
Bearings:
Ball on Motor, Needle on Case Output Shaft
Gear Case:
Die Cast Aluminum
Housing Material:
Aluminum
Enclosure:
TENV
Dimension X:
2.45";Rotation=CW/CCW"
Shaft Orientation:
Parallel
Overall Height:
2.75 in
Overall Width:
3.63 in
Output Shaft Diameter:
1/2 in
Operating Voltage:
90V DC
Full Load Current:
0.62 A
Motor Enclosure:
Totally Enclosed Nonventilated
Replaceable Motor Brushes:
Yes
Overhung Load Capacity:
90 ft-lb
Input Horsepower:
1/40 hp
Maximum Ambient Temperature:
40 Degrees C
Nameplate Speed:
37 RPM
Output Shaft Length:
1 in
Maximum Torque:
74 in-lb
Keyway Width:
1/8 in
Keyway Depth:
3/4 in
Bearing Type:
Ball on Motor, Needle on Case Output Shaft
Seal Type:
Spring Loaded Lip Type on Input and Output Shaft
Mounting Orientation:
Any Angle
Package Quantity:
1
