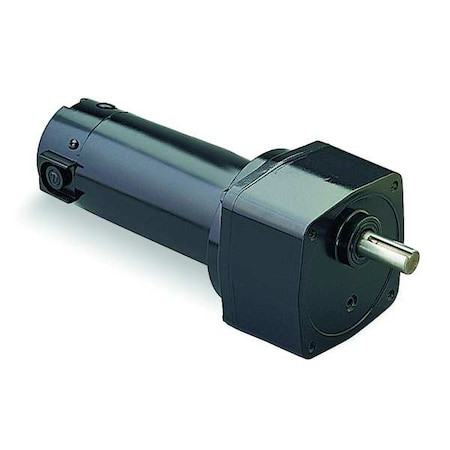

DC Gearmotor, 62 rpm, 90V, TENV - M1135218.00
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
DC Gearmotor, 62 rpm, 90V, TENV - M1135218.00
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 62 RPM, Maximum Torque 220 in-lb, Overhung Load Capacity 303 ft-lb, Rotation CW/CCW, Output Shaft Height 4 in, Mounting Orientation Any Angle, Gear Ratio 43:1, Input Horsepower 1/4 hp, Output Shaft Diameter 3/4 in, Bearing Type Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
- Country of Origin:
- United States
- Gearmotor Type:
- DC Gearmotor
- Gearmotor Voltage:
- 90V DC
- Max. Torque:
- 220 in-lb
- Gearmotor Shaft Type:
- Single
- Gearmotor Shaft Orientation:
- Parallel
- Rear Shaft Encoder/Pulse Generator Mounting:
- No
- Nameplate RPM:
- 62 RPM
- Gearmotor Enclosure:
- Totally Enclosed Nonventilated
- Gearmotor Mounting Position:
- All Angle
- Input HP:
- 1/4
- Gearmotor Rotation:
- CW/CCW
- Dimension XL:
- 13.31";Enclosure=TENV"
- Standards:
- CSA Certified, UL Recognized
- Overhung Load:
- 303 lb
- Mounting:
- All Position
- Brushes:
- Externally Replaceable
- Gear Material:
- Hardened Steel
- RPM Range:
- 51 to 75
- Shaft Dia. (Dimension U):
- 3/4 in
- Gear Type:
- Helical, Spur
- Voltage:
- 90VDC
- Dimension XH:
- 11.31";Reversible Shaft Output=No"
- Housing Material:
- Aluminum
- Length Less Shaft:
- 11.31 in
- Bearings:
- Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
- Overall Length:
- 12.94 in
- Max. Ambient Temp.:
- 40 Degrees C
- Full Load Amps:
- 2.3 A
- Shaft Orientation:
- Parallel
- Item:
- DC Gearmotor
- Thermal Protection:
- None
- Motor Type:
- Permanent Magnet DC
- Tachometer Feedback:
- No
- Shaft Length (Dimension V):
- 1 5/8 in
- Seals:
- Heavy Duty Industrial
- Rotation:
- CW/CCW
- Gear Case:
- Die Cast Aluminum
- Gear Ratio:
- 43
- Lubrication:
- Permanent Heavy Fluid Gear Oil
- Full Load Current:
- 2.3 A
- Input Horsepower:
- 1/4 hp
- Output Shaft Diameter:
- 3/4 in
- Overhung Load Capacity:
- 303 ft-lb
- Motor Enclosure:
- Totally Enclosed Nonventilated
- Output Shaft Height:
- 4 in
- Nameplate Speed:
- 62 RPM
- Seal Type:
- Heavy Duty Industrial
- Mounting Orientation:
- Any Angle
- Bearing Type:
- Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
- Operating Voltage:
- 90V DC
- Output Shaft Length:
- 1 5/8 in
- Keyway Length:
- 1 in
- Overall Height:
- 5.57 in
- Mount Hole Center-to-Center Length:
- 2.5 in
- Overall Width:
- 6 in
- Maximum Ambient Temperature:
- 40 Degrees C
- Keyway Depth:
- 1 in
- Maximum Torque:
- 220 in-lb
- Keyway Width:
- 3/16 in
- Mount Hole Center-to-Center Width:
- 5 in
- Package Quantity:
- 1
