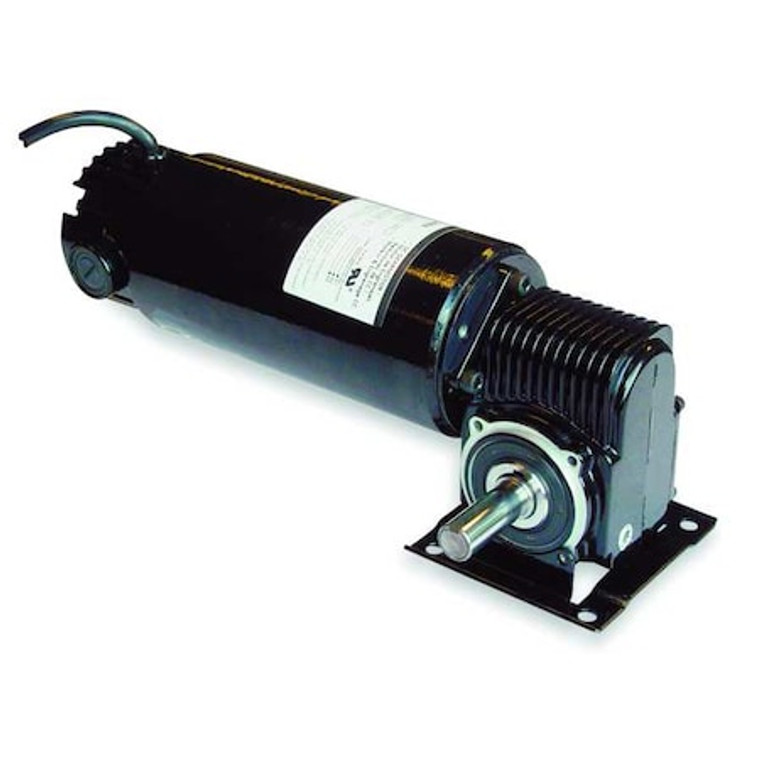

DC Gearmotor, 60.0 in-lb Max. Torque, 60 RPM Nameplate RPM, 90V DC Voltage - 3XA80

DC Gearmotor, 60.0 in-lb Max. Torque, 60 RPM Nameplate RPM, 90V DC Voltage - 3XA80

Dayton
SKU:
3XA80
|
UPC:
190735295861
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
DC Gearmotor, Shaft Orientation Right Angle, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 60 RPM, Maximum Torque 60 in-lb, Overhung Load Capacity 175 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 30:1, Input Horsepower 1/8 hp, Output Shaft Diameter 5/8 in, Bearing Type Oversized Ball
Additional Information
Country of Origin:
United States
Item:
DC Gearmotor
Gearmotor Voltage:
90V DC
Gearmotor Type:
DC Gearmotor
Max. Torque:
60 in-lb
Gearmotor Shaft Type:
Single Right
Gearmotor Shaft Orientation:
Right Angle
Nameplate RPM:
60 RPM
Gearmotor Enclosure:
Totally Enclosed Nonventilated
Gearmotor Rotation:
CW/CCW
Gearmotor Mounting Position:
All Angle
Full Load Amps:
1.28 A
Keyway Size Type:
3/16 sq in x 1 in
Standards:
C-UL Recognized, UL Recognized
Input HP:
1/8
Gear Material:
Bronze Alloy Output Gear, Hardened Steel Worm
Rotation:
CW/CCW
Mounting:
All Position
Replacement Brushes:
6YHY6
Max. Ambient Temp.:
40 Degrees C
Reversible Shaft Output:
Yes
Shaft Length (Dimension V):
1 1/2 in
Overhung Load:
175 lb
Keyway Size:
3/16 Square x 1""
RPM Range:
51 to 75
Tachometer Feedback:
Yes
Shaft Dia. (Dimension U):
5/8 in
Gear Type:
Worm
Gear Ratio:
30
Seals:
Lip Type on Input and Output Shaft
Brushes:
Externally Replaceable
Insulation Class:
F
Housing Material:
Aluminum
Bearings:
Oversized Ball
Rear Shaft Encoder/Pulse Generator Mounting:
Yes
Finish:
Powder Coated Gloss Black
Thermal Protection:
None
Lubrication:
Permanent Heavy Fluid Gear Oil
Voltage:
90VDC
Motor Type:
Permanent Magnet DC
Enclosure:
TENV
Shaft Orientation:
Right Angle
Gear Case:
Die Cast Aluminum
Operating Voltage:
90V DC
Input Horsepower:
1/8 hp
Mounting Orientation:
Any Angle
Output Shaft Length:
1 1/2 in
Keyway Type:
3/16 sq in x 1 in
Bearing Type:
Oversized Ball
Full Load Current:
1.28 A
Nameplate Speed:
60 RPM
Seal Type:
Lip Type on Input and Output Shaft
Motor Enclosure:
Totally Enclosed Nonventilated
Housing Material Finish:
Powder Coated Gloss Black
Overhung Load Capacity:
175 ft-lb
Output Shaft Diameter:
5/8 in
Maximum Ambient Temperature:
40 Degrees C
Maximum Torque:
60 in-lb
Replaceable Motor Brushes:
Yes
Package Quantity:
1
