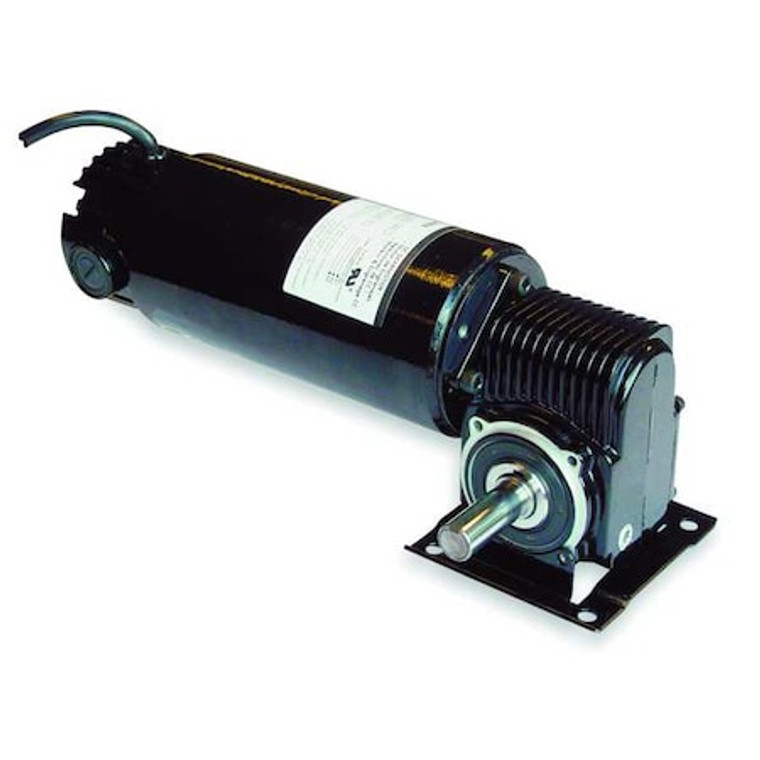

DC Gearmotor, 49.0 in-lb Max. Torque, 90 RPM Nameplate RPM, 90V DC Voltage - 3XA79

DC Gearmotor, 49.0 in-lb Max. Torque, 90 RPM Nameplate RPM, 90V DC Voltage - 3XA79

Dayton
SKU:
3XA79
|
UPC:
190735295854
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
DC Gearmotor, Shaft Orientation Right Angle, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 90 RPM, Maximum Torque 49 in-lb, Overhung Load Capacity 175 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 20:1, Input Horsepower 1/8 hp, Output Shaft Diameter 5/8 in, Bearing Type Oversized Ball
Additional Information
Country of Origin:
United States
Item:
DC Gearmotor
Gearmotor Voltage:
90V DC
Gearmotor Type:
DC Gearmotor
Max. Torque:
49 in-lb
Gearmotor Shaft Type:
Single Right
Gearmotor Shaft Orientation:
Right Angle
Nameplate RPM:
90 RPM
Gearmotor Enclosure:
Totally Enclosed Nonventilated
Gearmotor Rotation:
CW/CCW
Gearmotor Mounting Position:
All Angle
Full Load Amps:
1.28 A
Keyway Size Type:
3/16 sq in x 1 in
Standards:
C-UL Recognized, UL Recognized
Input HP:
1/8
Gear Ratio:
20
Motor Type:
Permanent Magnet DC
Insulation Class:
F
Shaft Length (Dimension V):
1 1/2 in
Reversible Shaft Output:
Yes
Finish:
Powder Coated Gloss Black
Housing Material:
Aluminum
RPM Range:
76 to 100
Mounting:
All Position
Bearings:
Oversized Ball
Overhung Load:
175 lb
Thermal Protection:
None
Tachometer Feedback:
Yes
Gear Material:
Bronze Alloy Output Gear, Hardened Steel Worm
Brushes:
Externally Replaceable
Voltage:
90VDC
Shaft Orientation:
Right Angle
Replacement Brushes:
6YHY6
Keyway Size:
3/16 Square x 1""
Gear Case:
Die Cast Aluminum
Enclosure:
TENV
Rotation:
CW/CCW
Max. Ambient Temp.:
40 Degrees C
Shaft Dia. (Dimension U):
5/8 in
Gear Type:
Worm
Seals:
Lip Type on Input and Output Shaft
Rear Shaft Encoder/Pulse Generator Mounting:
Yes
Lubrication:
Permanent Heavy Fluid Gear Oil
Housing Material Finish:
Powder Coated Gloss Black
Full Load Current:
1.28 A
Input Horsepower:
1/8 hp
Output Shaft Length:
1 1/2 in
Maximum Torque:
49 in-lb
Motor Enclosure:
Totally Enclosed Nonventilated
Nameplate Speed:
90 RPM
Mounting Orientation:
Any Angle
Bearing Type:
Oversized Ball
Operating Voltage:
90V DC
Keyway Type:
3/16 sq in x 1 in
Overhung Load Capacity:
175 ft-lb
Output Shaft Diameter:
5/8 in
Maximum Ambient Temperature:
40 Degrees C
Seal Type:
Lip Type on Input and Output Shaft
Replaceable Motor Brushes:
Yes
Package Quantity:
1
