Dc Gearmotor, 35.0 in-lb Max. Torque, 9 RPM Nameplate RPM, 12V DC Voltage - 1LNG7
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

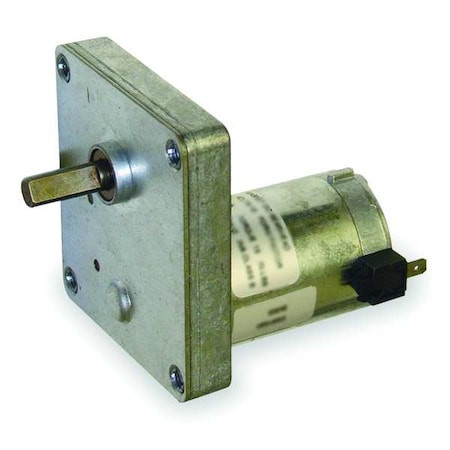

Dc Gearmotor, 35.0 in-lb Max. Torque, 9 RPM Nameplate RPM, 12V DC Voltage - 1LNG7
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 12V DC, Motor Type Permanent Magnet DC, Nameplate Speed 9 RPM, Maximum Torque 35 in-lb, Overhung Load Capacity 40 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 492:1, Input Horsepower 1/1000 hp, Application Food Processing and Restaurant Equipment, Switch Gear, Valve Actuators, Vending, Output Shaft Diameter 5/16 in, Bearing Type Porous Bronze on Gear Case and Motor
- Country of Origin:
- Mexico
- Item:
- Dc Gearmotor
- Gearmotor Voltage:
- 12V DC
- Gearmotor Type:
- DC Gearmotor
- Max. Torque:
- 35 in-lb
- Gearmotor Shaft Type:
- Single
- Gearmotor Shaft Orientation:
- Parallel
- Nameplate RPM:
- 9 RPM
- Gearmotor Enclosure:
- Totally Enclosed Nonventilated
- Gearmotor Rotation:
- CW/CCW
- Length Less Shaft:
- 3.25 in
- Gearmotor Mounting Position:
- All Angle
- Full Load Amps:
- 1 A
- Input HP:
- 1/120
- Shaft Orientation:
- Parallel
- Reversible Shaft Output:
- No
- Application:
- Food Processing and Restaurant Equipment, Switch Gear, Valve Actuators, Vending
- Dimension B:
- 0.94 in
- Thermal Protection:
- None
- Gear Case:
- Die Cast Zinc
- Shaft Length (Dimension V):
- 13/16";RPM Range=0 to 15"
- Rotation:
- CW/CCW
- Overall Length:
- 4.06 in
- Voltage:
- 12VDC
- Shaft Dia. (Dimension U):
- 5/16";Dimension A=3.2 in"
- Motor Type:
- Permanent Magnet DC
- Lubrication:
- Grease Filled
- Bearings:
- Porous Bronze on Gear Case and Motor
- Enclosure:
- TENV
- Gear Ratio:
- 492
- Overhung Load:
- 40 lb
- Housing Material:
- Die Cast Zinc
- Insulation Class:
- b
- Rear Shaft Encoder/Pulse Generator Mounting:
- No
- Mounting:
- All Position
- Max. Ambient Temp.:
- 40 Degrees C
- Gear Type:
- Spur
- Nameplate Speed:
- 9 RPM
- Full Load Current:
- 1 A
- Motor Enclosure:
- Totally Enclosed Nonventilated
- Overhung Load Capacity:
- 40 ft-lb
- Bearing Type:
- Porous Bronze on Gear Case and Motor
- Maximum Ambient Temperature:
- 40 Degrees C
- Operating Voltage:
- 12V DC
- Maximum Torque:
- 35 in-lb
- Mounting Orientation:
- Any Angle
- Output Shaft Length:
- 13/16 in
- Output Shaft Diameter:
- 5/16 in
- Input Horsepower:
- 1/1000 hp
- Package Quantity:
- 1
-
-
