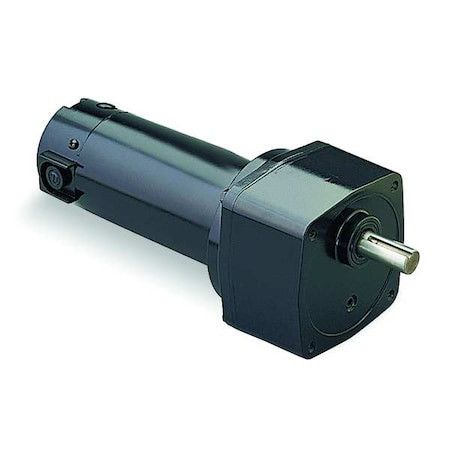

DC Gearmotor, 341.0 in-lb Max. Torque, 14 RPM Nameplate RPM, 90V DC Voltage - M1135232.00

DC Gearmotor, 341.0 in-lb Max. Torque, 14 RPM Nameplate RPM, 90V DC Voltage - M1135232.00

Dayton
SKU:
M1135232.00
|
UPC:
190735369333
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 14 RPM, Maximum Torque 341 in-lb, Overhung Load Capacity 465 ft-lb, Rotation CW/CCW, Output Shaft Height 4 in, Mounting Orientation Any Angle, Gear Ratio 180:1, Input Horsepower 1/8 hp, Output Shaft Diameter 3/4 in, Bearing Type Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
Additional Information
Country of Origin:
United States
Item:
DC Gearmotor
Gearmotor Voltage:
90V DC
Gearmotor Type:
DC Gearmotor
Max. Torque:
341 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
14 RPM
Gearmotor Enclosure:
Totally Enclosed Nonventilated
Gearmotor Rotation:
CW/CCW
Length Less Shaft:
9.31 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
1 A
Standards:
CSA Certified, UL Recognized
Input HP:
1/8
Shaft Orientation:
Parallel
Shaft Dia. (Dimension U):
3/4";Enclosure=TENV"
Gear Material:
Hardened Steel
Rotation:
CW/CCW
RPM Range:
0 to 15
Housing Material:
Aluminum
Gear Case:
Die Cast Aluminum
Overall Length:
10.94 in
Rear Shaft Encoder/Pulse Generator Mounting:
No
Max. Ambient Temp.:
40 Degrees C
Tachometer Feedback:
No
Gear Type:
Helical, Spur
Brushes:
Externally Replaceable
Reversible Shaft Output:
No
Dimension XH:
9.31";Mounting=All Position"
Dimension XL:
11.31";Voltage=90VDC"
Overhung Load:
465 lb
Lubrication:
Permanent Heavy Fluid Gear Oil
Shaft Length (Dimension V):
1-5/8";Thermal Protection=None"
Seals:
Heavy Duty Industrial
Gear Ratio:
180
Bearings:
Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
Motor Type:
Permanent Magnet DC
Mount Hole Center-to-Center Length:
2.5 in
Bearing Type:
Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
Mounting Orientation:
Any Angle
Keyway Width:
3/16 in
Motor Enclosure:
Totally Enclosed Nonventilated
Seal Type:
Heavy Duty Industrial
Input Horsepower:
1/8 hp
Output Shaft Height:
4 in
Operating Voltage:
90V DC
Maximum Ambient Temperature:
40 Degrees C
Keyway Depth:
1 in
Keyway Length:
1 in
Mount Hole Center-to-Center Width:
5 in
Nameplate Speed:
14 RPM
Overall Width:
6 in
Overall Height:
5.57 in
Maximum Torque:
341 in-lb
Full Load Current:
1 A
Overhung Load Capacity:
465 ft-lb
Output Shaft Diameter:
3/4 in
Output Shaft Length:
1 5/8 in
Package Quantity:
1
