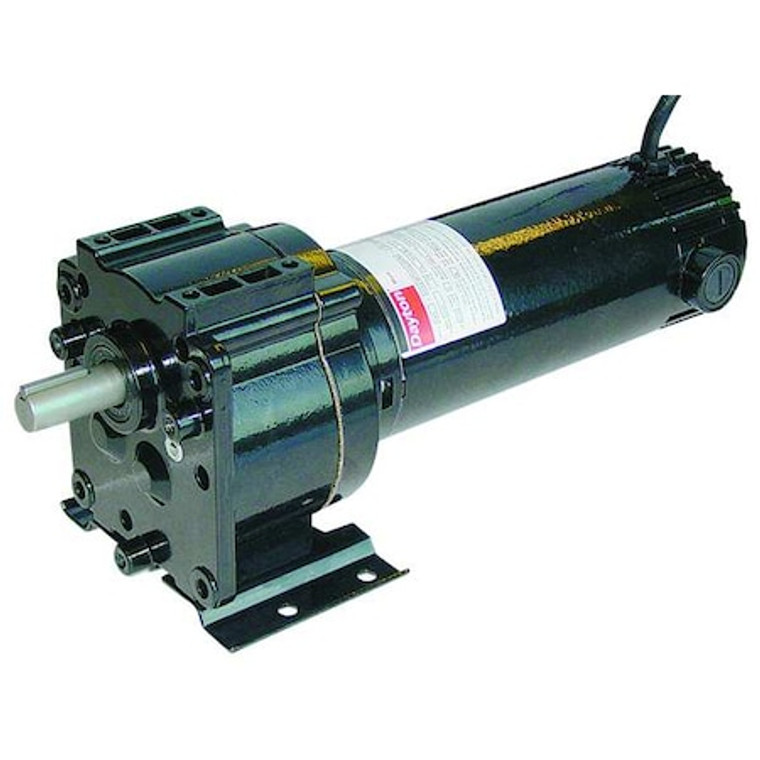

DC Gearmotor, 31 rpm, 12V, TENV - 1Z822
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 12V DC, Motor Type Permanent Magnet DC, Nameplate Speed 31 RPM, Maximum Torque 278 in-lb, Overhung Load Capacity 150 ft-lb, Rotation CW/CCW, Output Shaft Height 3.5 in, Mounting Orientation Any Angle, Gear Ratio 58:1, Input Horsepower 1/6 hp, Output Shaft Diameter 5/8 in, Bearing Type Ball on Motor, Needle Roller and Thrust Balls on Case
- Country of Origin:
- United States
- Gearmotor Type:
- DC Gearmotor
- Gearmotor Voltage:
- 12V DC
- Max. Torque:
- 278 in-lb
- Gearmotor Shaft Type:
- Single
- Gearmotor Shaft Orientation:
- Parallel
- Rear Shaft Encoder/Pulse Generator Mounting:
- Yes
- Nameplate RPM:
- 31 RPM
- Gearmotor Enclosure:
- Totally Enclosed Nonventilated
- Gearmotor Mounting Position:
- All Angle
- Input HP:
- 1/6
- RPM Range:
- 31 to 50
- Shaft Length (Dimension V):
- 1 1/2 in
- Rotation:
- CW/CCW
- Enclosure:
- TENV
- Tachometer Feedback:
- Yes
- Shaft Orientation:
- Parallel
- Gearmotor Rotation:
- CW/CCW
- Overhung Load:
- 150 lb
- Standards:
- C-UL Recognized, UL Recognized
- Gear Ratio:
- 58
- Shaft Dia. (Dimension U):
- 5/8 in
- Gear Case:
- Die Cast Aluminum
- Seals:
- On Input and Output Shaft
- Mounting:
- All Position
- Replacement Brushes:
- 6YHY5
- Item:
- DC Gearmotor
- Max. Ambient Temp.:
- 40 Degrees C
- Gear Material:
- Hardened Steel
- Reversible Shaft Output:
- No
- Voltage:
- 12VDC
- Length Less Shaft:
- 10.13 in
- Brushes:
- Externally Replaceable
- Thermal Protection:
- None
- Motor Type:
- Permanent Magnet DC
- Full Load Amps:
- 14.5 A
- Overall Length:
- 11.63 in
- Housing Material:
- Aluminum
- Bearings:
- Ball on Motor, Needle Roller and Thrust Balls on Case
- Lubrication:
- Permanent Heavy Fluid Gear Oil
- Operating Voltage:
- 12V DC
- Output Shaft Diameter:
- 5/8 in
- Replaceable Motor Brushes:
- Yes
- Output Shaft Length:
- 1 1/2 in
- Overhung Load Capacity:
- 150 ft-lb
- Seal Type:
- Lip Type on Output Shaft
- Maximum Ambient Temperature:
- 40 Degrees C
- Motor Enclosure:
- Totally Enclosed Nonventilated
- Mounting Orientation:
- Any Angle
- Nameplate Speed:
- 31 RPM
- Bearing Type:
- Ball on Motor, Needle Roller and Thrust Balls on Case
- Full Load Current:
- 14.5 A
- Output Shaft Height:
- 3.5 in
- Maximum Torque:
- 278 in-lb
- Input Horsepower:
- 1/6 hp
- Package Quantity:
- 1
