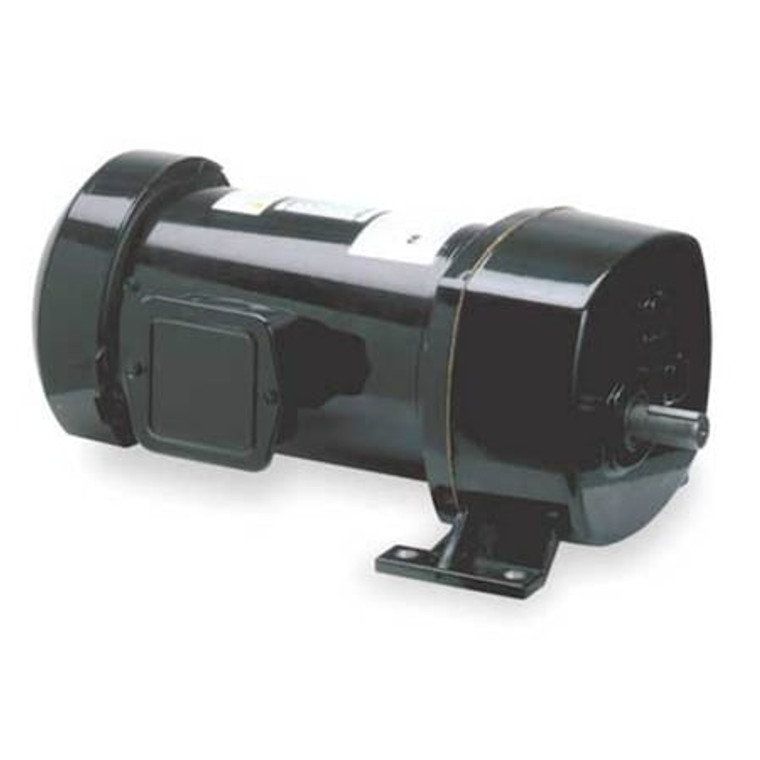

DC Gearmotor, 305.0 in-lb Max. Torque, 90 RPM Nameplate RPM, 90V DC Voltage - 6Z417

DC Gearmotor, 305.0 in-lb Max. Torque, 90 RPM Nameplate RPM, 90V DC Voltage - 6Z417

Dayton
SKU:
6Z417
|
UPC:
190735374344
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Fan-Cooled, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 90 RPM, Maximum Torque 305 in-lb, Overhung Load Capacity 325 ft-lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Gear Ratio 19:1, Input Horsepower 1/2 hp, Output Shaft Diameter 3/4 in, Bearing Type Ball on Motor, Heavy Duty Ball and Thrust Balls on Case
Additional Information
Country of Origin:
United States
Item:
DC Gearmotor
Gearmotor Voltage:
90V DC
Gearmotor Type:
DC Gearmotor
Max. Torque:
305 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
90 RPM
Gearmotor Enclosure:
Totally Enclosed Fan-Cooled
Gearmotor Rotation:
CW/CCW
Length Less Shaft:
14 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
5 A
Standards:
C-UL Recognized, UL Recognized
Input HP:
1/2
Voltage:
90VDC
Gear Type:
Helical, Spur
Seals:
Lip Type on Input and Output Shaft
Lubrication:
Permanent Heavy Fluid Gear Oil
Gear Case:
Die Cast Aluminum
Shaft Length (Dimension V):
1-1/2";Overhung Load=325 lb"
RPM Range:
76 to 100
Bearings:
Ball on Motor, Heavy Duty Ball and Thrust Balls on Case
Max. Ambient Temp.:
40 Degrees C
Replacement Brushes:
6YHY9
Shaft Dia. (Dimension U):
3/4";Enclosure=TEFC"
Tachometer Feedback:
No
Housing Material:
Aluminum
Motor Type:
Permanent Magnet DC
Thermal Protection:
None
Rear Shaft Encoder/Pulse Generator Mounting:
No
Mounting:
All Position
Gear Material:
Hardened Steel
Overall Length:
15.5 in
Gear Ratio:
19
Brushes:
Externally Replaceable
Rotation:
CW/CCW
Reversible Shaft Output:
No
Shaft Orientation:
Parallel
Overall Width:
8.13 in
Overall Height:
6.63 in
Mounting Orientation:
Any Angle
Operating Voltage:
90V DC
Mount Hole Center-to-Center Length:
2.5 in
Input Horsepower:
1/2 hp
Nameplate Speed:
90 RPM
Maximum Torque:
305 in-lb
Keyway Depth:
3/16 in
Maximum Ambient Temperature:
40 Degrees C
Replaceable Motor Brushes:
Yes
Overhung Load Capacity:
325 ft-lb
Full Load Current:
5 A
Mount Hole Center-to-Center Width:
7.13 in
Output Shaft Length:
1 1/2 in
Motor Enclosure:
Totally Enclosed Fan-Cooled
Output Shaft Diameter:
3/4 in
Bearing Type:
Ball on Motor, Heavy Duty Ball and Thrust Balls on Case
Seal Type:
Lip Type on Input and Output Shaft
Keyway Width:
1/8 in
Output Shaft Height:
3 in
Package Quantity:
1
