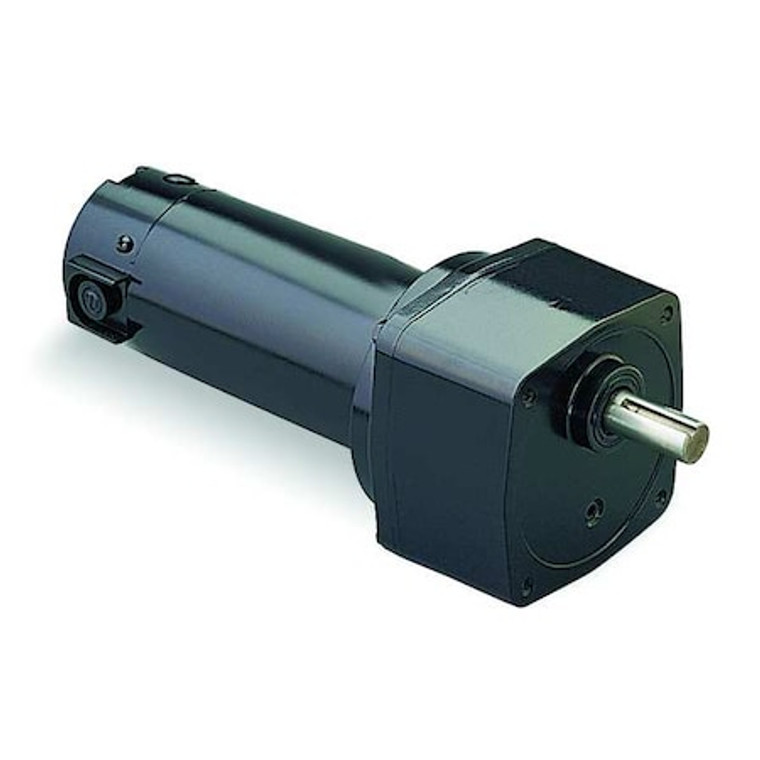

DC Gearmotor, 250.0 in-lb Max. Torque, 50 RPM Nameplate RPM, 90V DC Voltage - M1135240.00

DC Gearmotor, 250.0 in-lb Max. Torque, 50 RPM Nameplate RPM, 90V DC Voltage - M1135240.00

Dayton
SKU:
M1135240.00
|
UPC:
190735369418
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 50 RPM, Maximum Torque 250 in-lb, Overhung Load Capacity 315 ft-lb, Rotation CW/CCW, Output Shaft Height 4 in, Mounting Orientation Any Angle, Gear Ratio 50:1, Input Horsepower 1/8 hp, Output Shaft Diameter 3/4 in, Bearing Type Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
Additional Information
Country of Origin:
United States
Item:
DC Gearmotor
Gearmotor Voltage:
90V DC
Gearmotor Type:
DC Gearmotor
Max. Torque:
250 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
50 RPM
Gearmotor Enclosure:
Totally Enclosed Nonventilated
Gearmotor Rotation:
CW/CCW
Length Less Shaft:
11.31 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
2.3 A
Standards:
CSA Certified, UL Recognized
Input HP:
1/4
Gear Material:
Hardened Steel
Rotation:
CW/CCW
Gear Case:
Die Cast Aluminum
Shaft Dia. (Dimension U):
3/4";Bearings=Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case"
RPM Range:
31 to 50
Shaft Length (Dimension V):
1-5/8";Shaft Orientation=Parallel"
Motor Type:
Permanent Magnet DC
Max. Ambient Temp.:
40 Degrees C
Dimension XL:
13.31";Housing Material=Aluminum"
Seals:
Heavy Duty Industrial
Tachometer Feedback:
No
Voltage:
90VDC
Thermal Protection:
None
Rear Shaft Encoder/Pulse Generator Mounting:
No
Overhung Load:
315 lb
Lubrication:
Permanent Heavy Fluid Gear Oil
Reversible Shaft Output:
No
Gear Ratio:
50
Mounting:
All Position
Dimension XH:
11.31";Brushes=Externally Replaceable"
Overall Length:
12.94 in
Enclosure:
TENV
Gear Type:
Helical, Spur
Output Shaft Diameter:
3/4 in
Bearing Type:
Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
Full Load Current:
2.3 A
Output Shaft Length:
1 5/8 in
Motor Enclosure:
Totally Enclosed Nonventilated
Keyway Width:
3/16 in
Overhung Load Capacity:
315 ft-lb
Mount Hole Center-to-Center Length:
2.5 in
Overall Width:
6 in
Mounting Orientation:
Any Angle
Input Horsepower:
1/8 hp
Mount Hole Center-to-Center Width:
5 in
Maximum Ambient Temperature:
40 Degrees C
Keyway Length:
1 in
Maximum Torque:
250 in-lb
Seal Type:
Heavy Duty Industrial
Nameplate Speed:
50 RPM
Overall Height:
5.57 in
Output Shaft Height:
4 in
Operating Voltage:
90V DC
Keyway Depth:
1 in
Package Quantity:
1
