DC Gearmotor, 235.0 in-lb Max. Torque, 62 RPM Nameplate RPM, 90V DC Voltage - 2H577
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

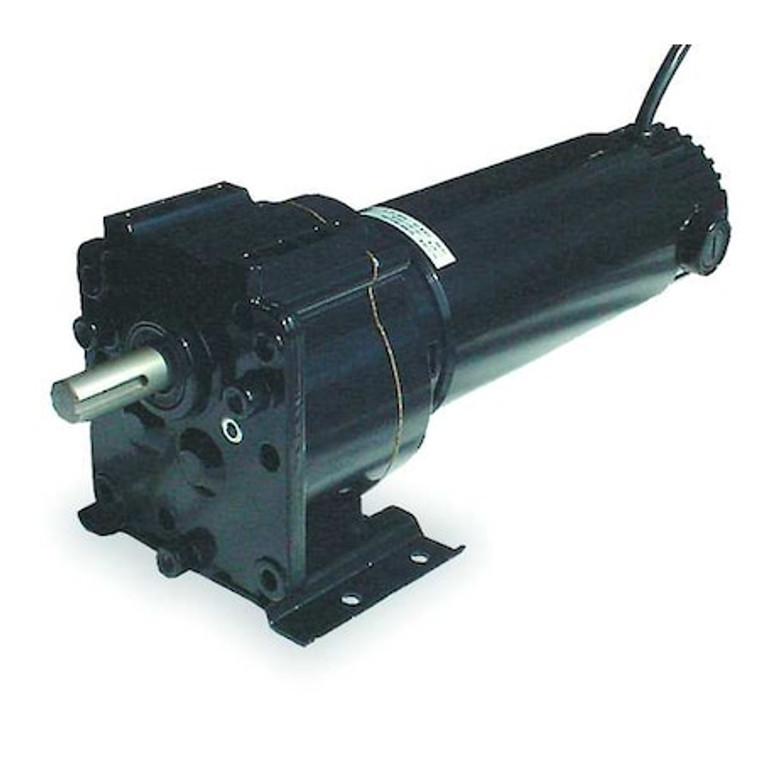

DC Gearmotor, 235.0 in-lb Max. Torque, 62 RPM Nameplate RPM, 90V DC Voltage - 2H577
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 62 RPM, Maximum Torque 235 in-lb, Overhung Load Capacity 235 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 29:1, Input Horsepower 1/4 hp, Output Shaft Diameter 5/8 in, Bearing Type Ball on Motor, Needle Throughout
- Country of Origin:
- United States
- Item:
- DC Gearmotor
- Gearmotor Voltage:
- 90V DC
- Gearmotor Type:
- DC Gearmotor
- Max. Torque:
- 235 in-lb
- Gearmotor Shaft Type:
- Single
- Gearmotor Shaft Orientation:
- Parallel
- Nameplate RPM:
- 62 RPM
- Gearmotor Enclosure:
- Totally Enclosed Nonventilated
- Gearmotor Rotation:
- CW/CCW
- Length Less Shaft:
- 12.13 in
- Gearmotor Mounting Position:
- All Angle
- Full Load Amps:
- 2.51 A
- Standards:
- C-UL Recognized, UL Recognized
- Input HP:
- 1/4
- Overhung Load:
- 235 lb
- Brushes:
- Externally Replaceable
- Motor Type:
- Permanent Magnet DC
- Gear Type:
- Helical, Spur
- Overall Length:
- 13.63 in
- Reversible Shaft Output:
- No
- Replacement Brushes:
- 6YHZ0
- Gear Material:
- Hardened Steel
- Shaft Orientation:
- Parallel
- RPM Range:
- 51 to 75
- Rear Shaft Encoder/Pulse Generator Mounting:
- Yes
- Rotation:
- CW/CCW
- Bearings:
- Ball on Motor, Needle Throughout with Thrust Balls on Case
- Thermal Protection:
- None
- Voltage:
- 90VDC
- Gear Ratio:
- 29
- Housing Material:
- Aluminum
- Tachometer Feedback:
- Yes
- Max. Ambient Temp.:
- 40 Degrees C
- Enclosure:
- TENV
- Lubrication:
- Permanent Heavy Fluid Gear Oil
- Gear Case:
- Die Cast Aluminum
- Mounting:
- All Position
- Seals:
- Spring Loaded Lip Type on Input and Output Shaft
- Shaft Length (Dimension V):
- 1 1/2 in
- Shaft Dia. (Dimension U):
- 5/8 in
- Overhung Load Capacity:
- 235 ft-lb
- Maximum Ambient Temperature:
- 40 Degrees C
- Input Horsepower:
- 1/4 hp
- Full Load Current:
- 2.51 A
- Seal Material:
- Plastic
- Bearing Type:
- Ball on Motor, Needle Throughout
- Motor Enclosure:
- Totally Enclosed Nonventilated
- Output Shaft Length:
- 1 1/2 in
- Mounting Orientation:
- Any Angle
- Nameplate Speed:
- 62 RPM
- Operating Voltage:
- 90V DC
- Replaceable Motor Brushes:
- Yes
- Maximum Torque:
- 235 in-lb
- Output Shaft Diameter:
- 5/8 in
- Seal Type:
- Spring Loaded Lip Type on Input and Output Shaft
- Package Quantity:
- 1
-
-
