DC Gearmotor, 228.0 in-lb Max. Torque, 10 RPM Nameplate RPM, 90V DC Voltage - 1LRB1
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

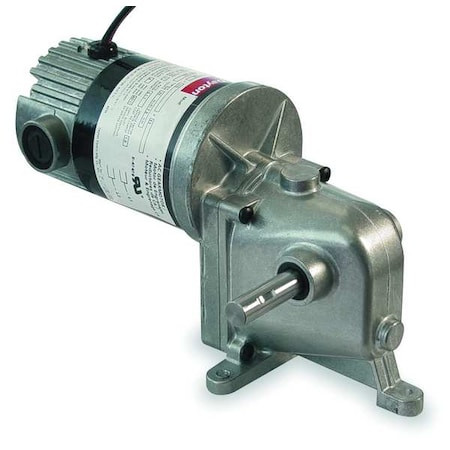

DC Gearmotor, 228.0 in-lb Max. Torque, 10 RPM Nameplate RPM, 90V DC Voltage - 1LRB1
DC Gearmotor, Shaft Orientation Right Angle, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 10 RPM, Maximum Torque 228 in-lb, Overhung Load Capacity 100 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 161:1, Input Horsepower 1/20 hp, Output Shaft Diameter 1/2 in, Bearing Type Ball on Motor, Porous Bronze Sleeve on Case
- Country of Origin:
- United States
- Item:
- DC Gearmotor
- Gearmotor Voltage:
- 90V DC
- Gearmotor Type:
- DC Gearmotor
- Max. Torque:
- 228 in-lb
- Gearmotor Shaft Type:
- Single Right
- Gearmotor Shaft Orientation:
- Right Angle
- Nameplate RPM:
- 10 RPM
- Gearmotor Enclosure:
- Totally Enclosed Nonventilated
- Gearmotor Rotation:
- CW/CCW
- Gearmotor Mounting Position:
- All Angle
- Full Load Amps:
- 0.59 A
- Keyway Size Type:
- #404 Woodruff Key
- Standards:
- C-UL Recognized, UL Recognized
- Input HP:
- 1/20
- Gear Type:
- Worm
- Shaft Orientation:
- Right Angle
- Reversible Shaft Output:
- No
- Seals:
- Lip Type on Output Shaft
- Max. Ambient Temp.:
- 40 Degrees C
- Shaft Length (Dimension V):
- 1 5/8 in
- RPM Range:
- 0 to 15
- Keyway Size:
- #404 Woodruff Key
- Lubrication:
- Grease Filled
- Overhung Load:
- 100 lb
- Enclosure:
- TENV
- Shaft:
- Right Hand Output
- Motor Type:
- Permanent Magnet DC
- Shaft Dia. (Dimension U):
- 1/2 in
- Bearings:
- Ball on Motor, Porous Bronze Sleeve on Case
- Gear Case:
- Die Cast Zinc
- Gear Ratio:
- 161
- Finish:
- Unpainted
- Gear Material:
- Input Gear Steel
- Replacement Brushes:
- 6YHY6
- Insulation Class:
- F
- Tachometer Feedback:
- No
- Brushes:
- Externally Replaceable
- Mounting:
- All Position
- Rotation:
- CW/CCW
- Thermal Protection:
- None
- Voltage:
- 90VDC
- Rear Shaft Encoder/Pulse Generator Mounting:
- No
- Housing Material:
- Die Cast Zinc
- Replaceable Motor Brushes:
- Yes
- Keyway Type:
- Woodruff #404
- Nameplate Speed:
- 10 RPM
- Bearing Type:
- Ball on Motor, Porous Bronze Sleeve on Case
- Output Shaft Length:
- 1 5/8 in
- Operating Voltage:
- 90V DC
- Output Shaft Diameter:
- 1/2 in
- Motor Enclosure:
- Totally Enclosed Nonventilated
- Input Horsepower:
- 1/20 hp
- Maximum Ambient Temperature:
- 40 Degrees C
- Mounting Orientation:
- Any Angle
- Seal Type:
- Lip Type on Output Shaft
- Maximum Torque:
- 228 in-lb
- Full Load Current:
- 0.59 A
- Housing Material Finish:
- Unpainted
- Overhung Load Capacity:
- 100 ft-lb
- Package Quantity:
- 1
-
-
