Dc Gearmotor, 10.0 in-lb Max. Torque, 50 RPM Nameplate RPM, 12V DC Voltage - 1LNH2
Manufacturer: Dayton
MFR # 1LNH2
Log in for pricing
Dc Gearmotor, 16.0 in-lb Max. Torque, 25 RPM Nameplate RPM, 12V DC Voltage - 1LNH1
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

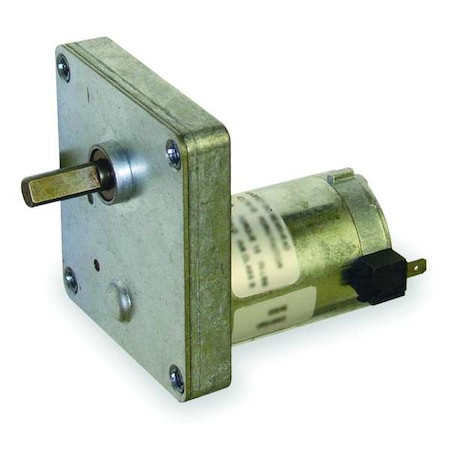

Dc Gearmotor, 16.0 in-lb Max. Torque, 25 RPM Nameplate RPM, 12V DC Voltage - 1LNH1
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 12V DC, Motor Type Permanent Magnet DC, Nameplate Speed 25 RPM, Maximum Torque 16 in-lb, Overhung Load Capacity 13 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 172:1, Input Horsepower 1/150 hp, Application Food Processing and Restaurant Equipment, Switch Gear, Valve Actuators, Vending, Output Shaft Diameter 5/16 in, Bearing Type Porous Bronze on Gear Case and Motor
- Country of Origin:
- Mexico
- Item:
- Dc Gearmotor
- Gearmotor Voltage:
- 12V DC
- Gearmotor Type:
- DC Gearmotor
- Max. Torque:
- 16 in-lb
- Gearmotor Shaft Type:
- Single
- Gearmotor Shaft Orientation:
- Parallel
- Nameplate RPM:
- 25 RPM
- Gearmotor Enclosure:
- Totally Enclosed Nonventilated
- Gearmotor Rotation:
- CW/CCW
- Length Less Shaft:
- 3.25 in
- Gearmotor Mounting Position:
- All Angle
- Full Load Amps:
- 1 A
- Input HP:
- 1/150
- Bearings:
- Porous Bronze on Gear Case and Motor
- Overhung Load:
- 13 lb
- Motor Type:
- Permanent Magnet DC
- Gear Ratio:
- 172
- Insulation Class:
- b
- Housing Material:
- Die Cast Zinc
- Dimension A:
- 3.22 in
- RPM Range:
- 16 to 30
- Mounting:
- All Position
- Max. Ambient Temp.:
- 40 Degrees C
- Shaft Orientation:
- Parallel
- Thermal Protection:
- None
- Rear Shaft Encoder/Pulse Generator Mounting:
- No
- Shaft Length (Dimension V):
- 13/16";Reversible Shaft Output=No"
- Rotation:
- CW/CCW
- Shaft Dia. (Dimension U):
- 5/16";Dimension B=0.72 in"
- Application:
- Food Processing and Restaurant Equipment, Switch Gear, Valve Actuators, Vending
- Overall Length:
- 4.06 in
- Voltage:
- 12VDC
- Gear Case:
- Die Cast Zinc
- Enclosure:
- TENV
- Gear Type:
- Spur
- Lubrication:
- Grease Filled
- Output Shaft Length:
- 13/16 in
- Input Horsepower:
- 1/150 hp
- Mounting Orientation:
- Any Angle
- Full Load Current:
- 1 A
- Overhung Load Capacity:
- 13 ft-lb
- Nameplate Speed:
- 25 RPM
- Motor Enclosure:
- Totally Enclosed Nonventilated
- Maximum Ambient Temperature:
- 40 Degrees C
- Operating Voltage:
- 12V DC
- Output Shaft Diameter:
- 5/16 in
- Maximum Torque:
- 16 in-lb
- Bearing Type:
- Porous Bronze on Gear Case and Motor
- Package Quantity:
- 1
-
-
Dc Gearmotor, 35.0 in-lb Max. Torque, 9 RPM Nameplate RPM, 12V DC Voltage - 1LNG7
Manufacturer: Dayton
MFR # 1LNG7
Log in for pricing
-
Dc Gearmotor, 40.0 in-lb Max. Torque, 12 RPM Nameplate RPM, 12V DC Voltage - 1LNG8
Manufacturer: Dayton
MFR # 1LNG8
Log in for pricing
-
DC Gearmotor, 26.0 in-lb Max. Torque, 39 RPM Nameplate RPM, 12V DC Voltage - 1LPV4
Manufacturer: Dayton
MFR # 1LPV4
Log in for pricing
