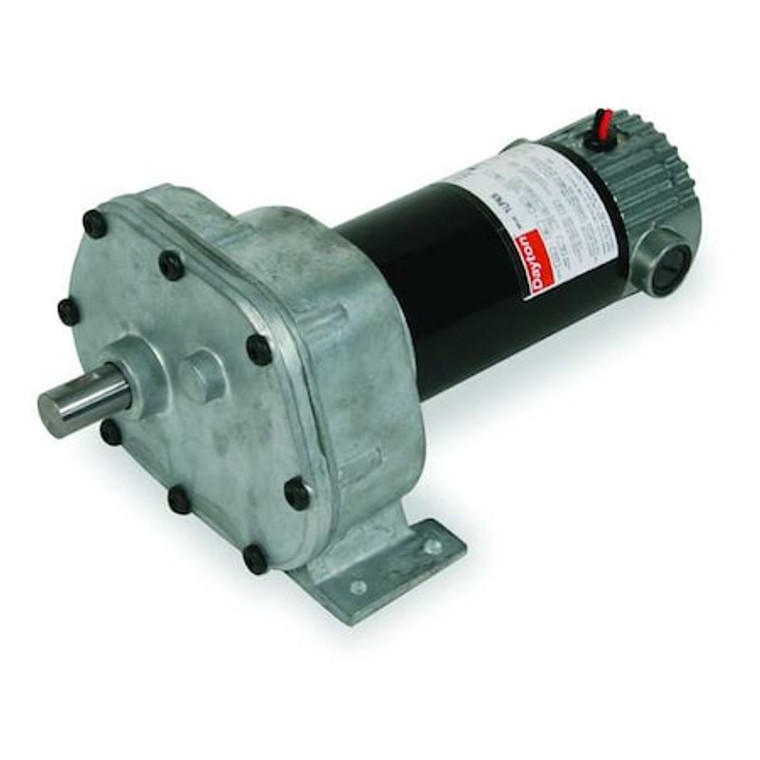

DC Gearmotor, 13 rpm, 90V, TENV - 1LPK8
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 13 RPM, Maximum Torque 250 in-lb, Overhung Load Capacity 250 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 135:1, Input Horsepower 1/15 hp, Output Shaft Diameter 3/4 in, Bearing Type Ball on Motor, Porous Bronze Sleeve on Case
- Country of Origin:
- United States
- Gearmotor Type:
- DC Gearmotor
- Item:
- DC Gearmotor
- Motor Type:
- Permanent Magnet DC
- Gearmotor Voltage:
- 90V DC
- Shaft Orientation:
- Parallel
- Enclosure:
- TENV
- Nameplate RPM:
- 13 RPM
- Gearmotor Shaft Type:
- Single
- Gearmotor Shaft Orientation:
- Parallel
- Voltage:
- 90VDC
- Gearmotor Enclosure:
- Totally Enclosed Nonventilated
- Gear Ratio:
- 135
- Full Load Amps:
- 0.84 A
- Brushes:
- Externally Replaceable
- Max. Torque:
- 250 in-lb
- Mounting:
- All Position
- Gearmotor Rotation:
- CW/CCW
- Input HP:
- 1/15
- Seals:
- O-ring Type on Output Shaft
- Shaft Dia. (Dimension U):
- 3/4";Lubrication=Grease Filled"
- Keyway Size Type:
- #605 Woodruff Key
- Replacement Brushes:
- 6YHY6
- Thermal Protection:
- None
- Rotation:
- CW/CCW
- Overhung Load:
- 250 lb
- Shaft Length (Dimension V):
- 1-1/2";Gear Material=Hardened Steel, Phenolic"
- Reversible Shaft Output:
- No
- Max. Ambient Temp.:
- 40 Degrees C
- Overall Length:
- 10 in
- Finish:
- Unpainted
- Housing Material:
- Die Cast Zinc
- Standards:
- C-UL Recognized, UL Recognized
- Shaft:
- Single Output
- Rear Shaft Encoder/Pulse Generator Mounting:
- No
- Gearmotor Mounting Position:
- All Angle
- Tachometer Feedback:
- No
- Keyway Size:
- #605 Woodruff Key
- Length Less Shaft:
- 8.5 in
- Insulation Class:
- F
- Bearings:
- Ball on Motor, Porous Bronze Sleeve on Case
- Gear Case:
- Die Cast Zinc
- RPM Range:
- 0 to 15
- Bearing Type:
- Ball on Motor, Porous Bronze Sleeve on Case
- Mounting Orientation:
- Any Angle
- Seal Type:
- O-Ring Type on Output Shaft
- Keyway Type:
- Woodruff #605
- Overhung Load Capacity:
- 250 ft-lb
- Operating Voltage:
- 90V DC
- Maximum Ambient Temperature:
- 40 Degrees C
- Output Shaft Length:
- 1 1/2 in
- Housing Material Finish:
- Unpainted
- Input Horsepower:
- 1/15 hp
- Maximum Torque:
- 250 in-lb
- Replaceable Motor Brushes:
- Yes
- Motor Enclosure:
- Totally Enclosed Nonventilated
- Output Shaft Diameter:
- 3/4 in
- Nameplate Speed:
- 13 RPM
- Full Load Current:
- 0.84 A
- Package Quantity:
- 1
-
-
