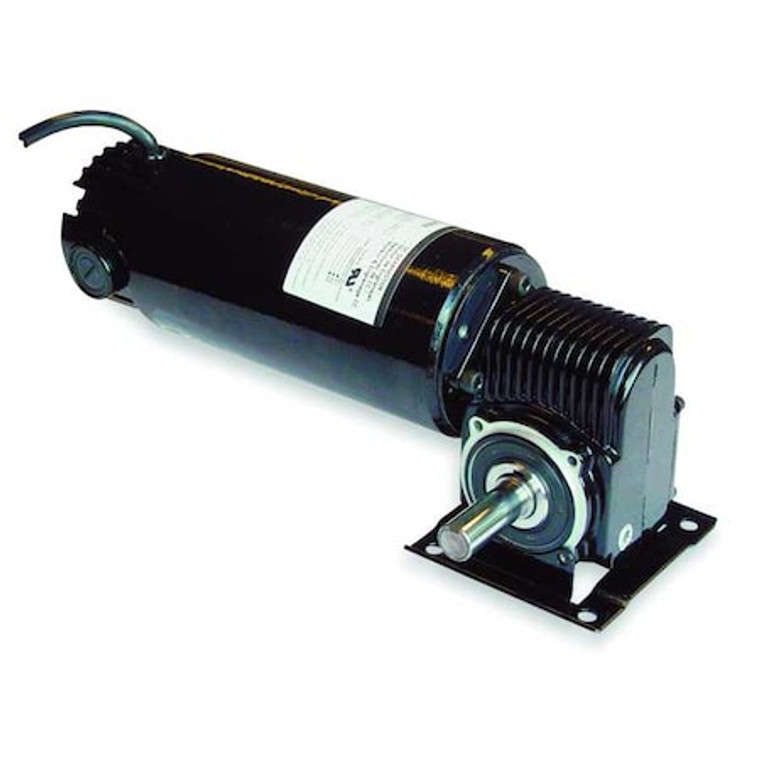

DC Gearmotor, 100.0 in-lb Max. Torque, 90 RPM Nameplate RPM, 90V DC Voltage - 3XA85

DC Gearmotor, 100.0 in-lb Max. Torque, 90 RPM Nameplate RPM, 90V DC Voltage - 3XA85

Dayton
SKU:
3XA85
|
UPC:
190735295915
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
DC Gearmotor, Shaft Orientation Right Angle, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 90 RPM, Maximum Torque 100 in-lb, Overhung Load Capacity 175 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 20:1, Input Horsepower 1/4 hp, Output Shaft Diameter 5/8 in, Bearing Type Oversized Ball
Additional Information
Country of Origin:
United States
Item:
DC Gearmotor
Gearmotor Voltage:
90V DC
Gearmotor Type:
DC Gearmotor
Max. Torque:
100 in-lb
Gearmotor Shaft Type:
Single Right
Gearmotor Shaft Orientation:
Right Angle
Nameplate RPM:
90 RPM
Gearmotor Enclosure:
Totally Enclosed Nonventilated
Gearmotor Rotation:
CW/CCW
Gearmotor Mounting Position:
All Angle
Full Load Amps:
2.33 A
Keyway Size Type:
3/16 sq in x 1 in
Standards:
C-UL Recognized, UL Recognized
Input HP:
1/4
Gear Material:
Bronze Alloy Output Gear, Hardened Steel Worm
Keyway Size:
3/16 Square x 1""
Motor Type:
Permanent Magnet DC
Rear Shaft Encoder/Pulse Generator Mounting:
Yes
Seals:
Lip Type on Input and Output Shaft
Max. Ambient Temp.:
40 Degrees C
Tachometer Feedback:
Yes
Brushes:
Externally Replaceable
Enclosure:
TENV
Shaft Orientation:
Right Angle
Reversible Shaft Output:
Yes
Bearings:
Oversized Ball
Overhung Load:
175 lb
Shaft Dia. (Dimension U):
5/8";Rotation=CW/CCW"
Gear Ratio:
20
Housing Material:
Aluminum
Finish:
Powder Coated Gloss Black
Lubrication:
Permanent Heavy Fluid Gear Oil
Mounting:
All Position
RPM Range:
76 to 100
Insulation Class:
F
Gear Case:
Die Cast Aluminum
Voltage:
90VDC
Gear Type:
Worm
Thermal Protection:
None
Replacement Brushes:
6YHY6
Shaft Length (Dimension V):
1-1/2";Mounting Orientation=Any Angle"
Bearing Type:
Oversized Ball
Input Horsepower:
1/4 hp
Keyway Type:
3/16 sq in x 1 in
Seal Type:
Lip Type on Input and Output Shaft
Motor Enclosure:
Totally Enclosed Nonventilated
Output Shaft Diameter:
5/8 in
Housing Material Finish:
Powder Coated Gloss Black
Maximum Ambient Temperature:
40 Degrees C
Nameplate Speed:
90 RPM
Full Load Current:
2.33 A
Overhung Load Capacity:
175 ft-lb
Replaceable Motor Brushes:
Yes
Operating Voltage:
90V DC
Maximum Torque:
100 in-lb
Output Shaft Length:
1 1/2 in
Package Quantity:
1
