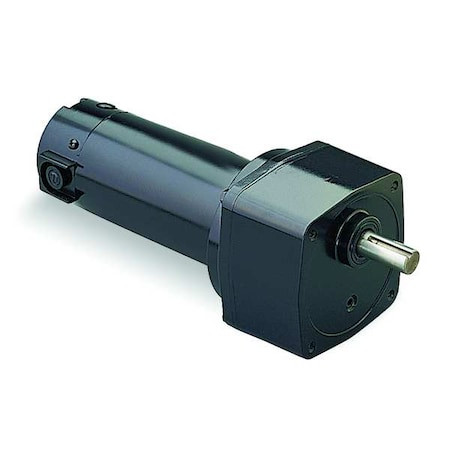

DC Gearmotor, 100.0 in-lb Max. Torque, 125 RPM Nameplate RPM, 90V DC Voltage - M1135222.00

DC Gearmotor, 100.0 in-lb Max. Torque, 125 RPM Nameplate RPM, 90V DC Voltage - M1135222.00

Dayton
SKU:
M1135222.00
|
UPC:
190735369234
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 125 RPM, Maximum Torque 100 in-lb, Overhung Load Capacity 256 ft-lb, Rotation CW/CCW, Output Shaft Height 4 in, Mounting Orientation Any Angle, Gear Ratio 23:1, Input Horsepower 1/4 hp, Output Shaft Diameter 3/4 in, Bearing Type Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
Additional Information
Country of Origin:
United States
Item:
DC Gearmotor
Gearmotor Voltage:
90V DC
Gearmotor Type:
DC Gearmotor
Max. Torque:
100 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
125 RPM
Gearmotor Enclosure:
Totally Enclosed Nonventilated
Gearmotor Rotation:
CW/CCW
Length Less Shaft:
11.31 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
2 A
Standards:
CSA Certified, UL Recognized
Input HP:
1/4
Mounting:
All Position
Lubrication:
Permanent Heavy Fluid Gear Oil
Overall Length:
12.94 in
Gear Type:
Helical, Spur
Voltage:
90VDC
Max. Ambient Temp.:
40 Degrees C
Reversible Shaft Output:
No
Seals:
Heavy Duty Industrial
Gear Material:
Hardened Steel
Rear Shaft Encoder/Pulse Generator Mounting:
No
Overhung Load:
256 lb
Bearings:
Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
Gear Case:
Die Cast Aluminum
Shaft Length (Dimension V):
1 5/8 in
Housing Material:
Aluminum
Shaft Orientation:
Parallel
Dimension XH:
11.31";Shaft Dia. (Dimension U)=3/4 in"
Thermal Protection:
None
Gear Ratio:
23
Dimension XL:
13.31";Enclosure=TENV"
Rotation:
CW/CCW
RPM Range:
101 to 150
Motor Type:
Permanent Magnet DC
Brushes:
Externally Replaceable
Tachometer Feedback:
No
Keyway Width:
3/16 in
Maximum Ambient Temperature:
40 Degrees C
Motor Enclosure:
Totally Enclosed Nonventilated
Mount Hole Center-to-Center Length:
2.5 in
Mounting Orientation:
Any Angle
Output Shaft Length:
1 5/8 in
Overall Height:
5.57 in
Input Horsepower:
1/4 hp
Output Shaft Height:
4 in
Operating Voltage:
90V DC
Keyway Depth:
1 in
Full Load Current:
2 A
Output Shaft Diameter:
3/4 in
Overhung Load Capacity:
256 ft-lb
Mount Hole Center-to-Center Width:
5 in
Seal Type:
Heavy Duty Industrial
Overall Width:
6 in
Keyway Length:
1 in
Bearing Type:
Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
Maximum Torque:
100 in-lb
Nameplate Speed:
125 RPM
Package Quantity:
1
