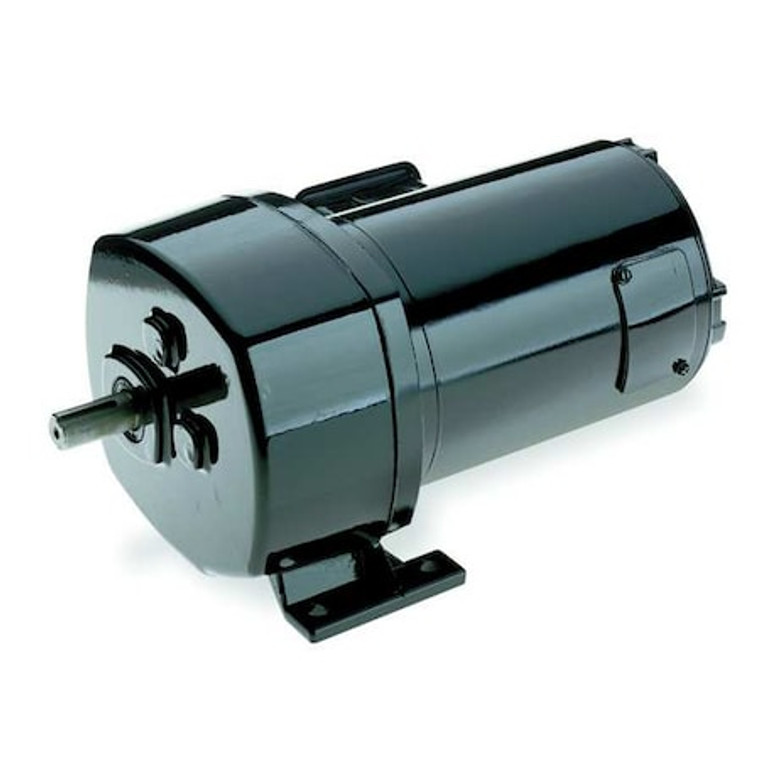

DC Gearmotor, 1,087.0 in-lb Max. Torque, 9 RPM Nameplate RPM, 90V DC Voltage - 6Z406

DC Gearmotor, 1,087.0 in-lb Max. Torque, 9 RPM Nameplate RPM, 90V DC Voltage - 6Z406

Dayton
SKU:
6Z406
|
UPC:
190735374238
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 9 RPM, Maximum Torque 1,087 in-lb, Overhung Load Capacity 325 ft-lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Gear Ratio 196:1, Input Horsepower 1/4 hp, Output Shaft Diameter 3/4 in, Bearing Type Ball on Motor, Heavy Duty Ball and Thrust Balls on Case
Additional Information
Country of Origin:
United States
Item:
DC Gearmotor
Gearmotor Voltage:
90V DC
Gearmotor Type:
DC Gearmotor
Max. Torque:
1,087 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
9 RPM
Gearmotor Enclosure:
Totally Enclosed Nonventilated
Gearmotor Rotation:
CW/CCW
Length Less Shaft:
11.75 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
2 A
Standards:
C-UL Recognized, UL Recognized
Input HP:
1/4
Reversible Shaft Output:
No
RPM Range:
0 to 15
Housing Material:
Aluminum
Motor Type:
Permanent Magnet DC
Gear Ratio:
196
Mounting:
All Position
Brushes:
Externally Replaceable
Replacement Brushes:
6YHY9
Thermal Protection:
None
Gear Type:
Helical, Spur
Voltage:
90VDC
Gear Material:
Hardened Steel
Rear Shaft Encoder/Pulse Generator Mounting:
No
Overhung Load:
325 lb
Tachometer Feedback:
No
Enclosure:
TENV
Rotation:
CW/CCW
Gear Case:
Die Cast Aluminum
Lubrication:
Permanent Heavy Fluid Gear Oil
Seals:
Lip Type on Input and Output Shaft
Shaft Orientation:
Parallel
Max. Ambient Temp.:
40 Degrees C
Shaft Length (Dimension V):
1-1/2";Overall Length=13.25 in"
Bearings:
Ball on Motor, Heavy Duty Ball and Thrust Balls on Case
Shaft Dia. (Dimension U):
3/4";Overall Width=8.13 in"
Overall Height:
6.63 in
Operating Voltage:
90V DC
Bearing Type:
Ball on Motor, Heavy Duty Ball and Thrust Balls on Case
Replaceable Motor Brushes:
Yes
Keyway Depth:
3/16 in
Maximum Ambient Temperature:
40 Degrees C
Full Load Current:
2 A
Input Horsepower:
1/4 hp
Overhung Load Capacity:
325 ft-lb
Output Shaft Height:
3 in
Mounting Orientation:
Any Angle
Output Shaft Diameter:
3/4 in
Mount Hole Center-to-Center Length:
2.5 in
Seal Type:
Lip Type on Input and Output Shaft
Maximum Torque:
1,087 in-lb
Keyway Width:
1/8 in
Nameplate Speed:
9 RPM
Output Shaft Length:
1 1/2 in
Mount Hole Center-to-Center Width:
7.13 in
Motor Enclosure:
Totally Enclosed Nonventilated
Package Quantity:
1
