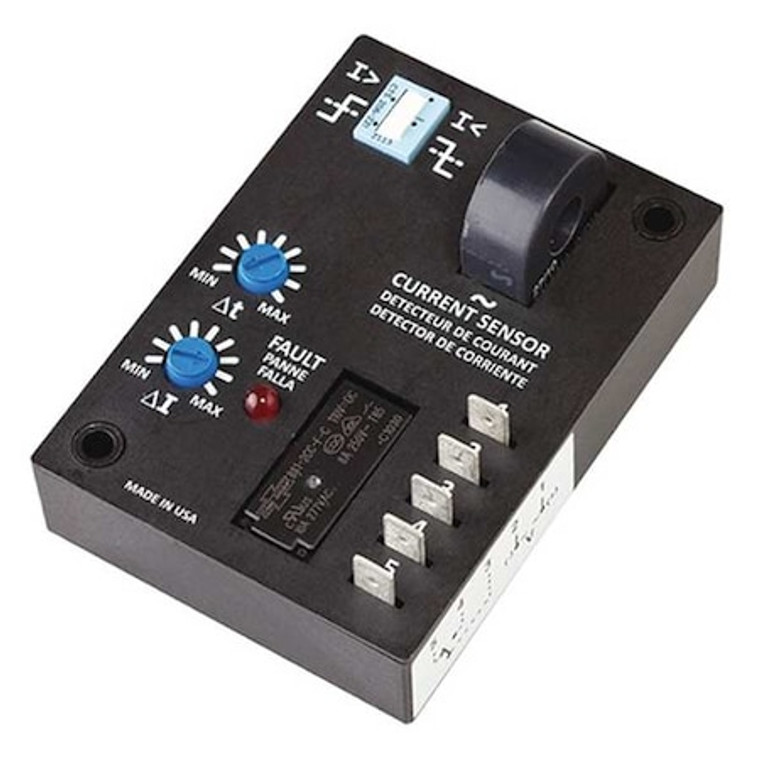

Current Sensing Relay, 5 to 50A, 24VAC - 15V826

Current Sensing Relay, 5 to 50A, 24VAC - 15V826

Dayton
SKU:
15V826
|
UPC:
190735129098
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Adjustable Current Sensing Relay, Contact Form SPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 8 A @ 28V, Core Type Solid, Current Rating 10 A, Input Voltage 24V AC, Monitored Parameters Overcurrent, Undercurrent, Mounting Style Surface, Number of Pins 4, Trip Point 5 to 50 A, Trip Point Type Adjustable, Electrical Connection Quick Connect Tabs, Sensing Hole Diameter 0.36 in, Status Indicator LED Indicator, Body Depth 0.8 in, Body Height 3.5 in, Body Width 2.5 in
Additional Information
Country of Origin:
United States
Item - Relay:
Current Sensing Relay
Input or Control Voltage:
24V AC
AC Contact Rating - Relay:
10A @ 240V
DC Contact Rating - Relay:
8A @ 28V
Mounting - Relay:
Surface
Contact Form - Relay:
SPDT
Sensing Amp Range:
5.00 to 50.00A
Trip Point:
5 to 50 A
Trip Delay:
0.5 to 50 sec
Core Type - Relay:
Solid
Max. Inrush Current:
300 A
Body Height - Relay:
3.5 in
Sensor:
Toroidal, 0.36 Through Hole"
Contact Form:
SPDT
Item:
Adjustable Current Sensing Relay
Body Width - Relay:
2.5 in
Mounting:
Surface
Core Type:
Solid
Electrical Connection:
Quick Connect Tabs
Input Voltage:
24V AC
Contact Amps:
10.00A
Status Indicator:
LED Indicator
Overall Height - Relay:
3.5 in
Sensor Opening:
0.36 in
Type of Output:
Relay
Body Depth - Relay:
0.8 in
Contact Rating (AC):
10 A @ 240V
Body Width:
2.5 in
Current Rating:
10 A
Monitored Parameters:
Overcurrent, Undercurrent
Contact Rating (DC):
8 A @ 28V
Mounting Style:
Surface
Body Depth:
0.8 in
Sensing Hole Diameter:
0.36 in
Number of Pins:
4
Overall Depth:
3.5 in
Trip Point Type:
Adjustable
Body Height:
3.5 in
Package Quantity:
1
