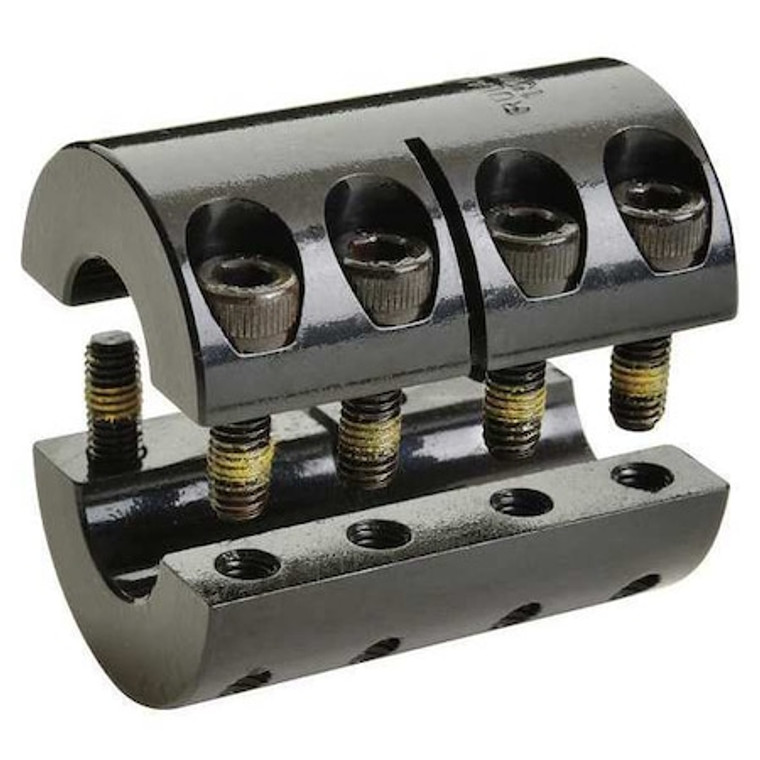

Coupling, Two Piece, Bore Dia 7/8 In - SPX-14-14-F

Coupling, Two Piece, Bore Dia 7/8 In - SPX-14-14-F

Ruland
SKU:
SPX-14-14-F
|
UPC:
634529025819
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 7/8 in, Bore Diameter 2 7/8 in, Bore Type Round, Clearance Diameter 1.93 in, Coupling Construction Two-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 5/8 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 7/8 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 7/8 in, Maximum Speed 4,000 RPM, Maximum Torque 3,600 in-lb
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
2 Piece Clamp
Item:
Rigid Shaft Coupling
System of Measurement:
Inch
Bore Dia.:
7/8 in
Material - Couplings:
Steel
Outside Dia.:
1 5/8 in
Overall Length:
2 1/2 in
With Keyway / Without Keyway:
Without Keyway
Finish:
black oxide
Design:
Four Vibration Resistant Socket Capscrews
Standards:
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Max. Torque (In.-Lbs.):
3600
Screw Size:
1/4-28"
Clearance Dia. (In.):
1.932
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Type:
Two Piece Clamp Type, Without Keyway
Provides:
Extra Holding Power for Higher Load Applications without Marring Shafts
Material:
Black Oxide Steel
Max. Torque:
3,600 in-lb
Clearance Dia.:
1.932 in
Machined From:
Bar Stock
Screw Size (In.):
1/4-28
Screw Material:
Alloy Steel
Bore Tolerance:
+0.0020 in / +0.0005 in
Screw Material Finish:
Black Oxide
Maximum Torque:
3,600 in-lb
Resistance Properties:
Corrosion Resistant
Bore Diameter 1:
7/8 in
Features:
Precision Honed Bores, Vibration-Resistant Screws
Coupling Material:
Carbon Steel
Keyway Depth 1:
Not Applicable
Zero Backlash:
Yes
Bore Type:
Round
Included Screws:
(8) Clamp Screws
Coupling Outside Diameter:
1 5/8 in
Shaft Locking Type:
Clamp On
Clearance Diameter:
1.93 in
Maximum Operating Temperature:
350 Degrees F
Fastener Tightening Torque:
170 lb-in
Number of Locking Screws:
8
Keyway Width 1:
Not Applicable
Keyway Width 2:
Not Applicable
Different Bore Sizes:
No
Bore Diameter 2:
7/8 in
Minimum Operating Temperature:
-40 Degrees F
Coupling Material Grade:
1215
Coupling Construction:
Two-Piece
Screw Location from Center:
0.6 in
Recommended Gap:
0.094 in
Maximum Speed:
4,000 RPM
Coupling Material Finish:
Black Oxide
Shaft Tolerance:
+0.0000 in / -0.0005 in
Minimum Bore Diameter:
7/8 in
Screw Thread Size:
1/4-28"
Keyway Depth 2:
Not Applicable
Maximum Bore Diameter:
7/8 in
Package Quantity:
1
