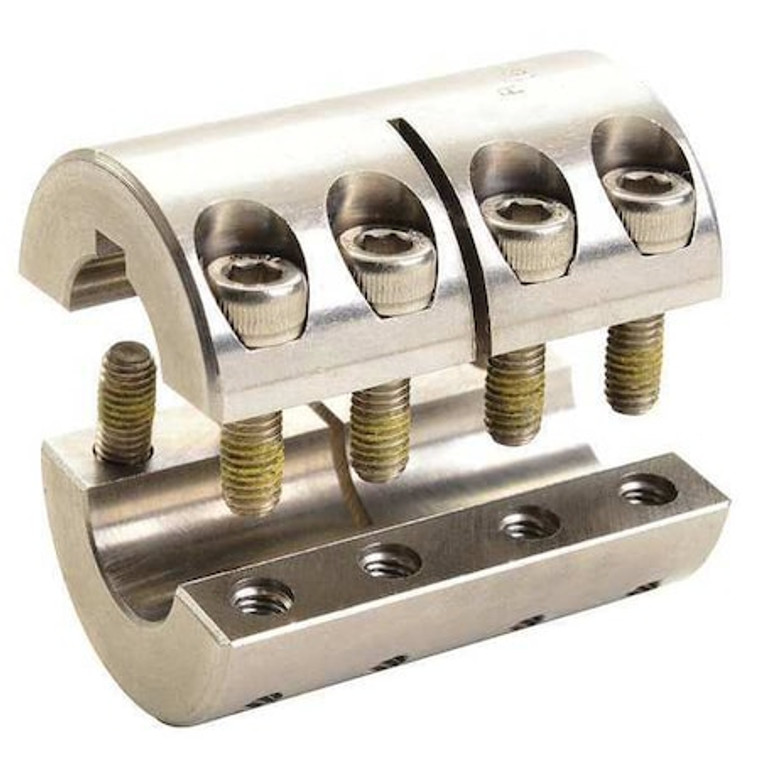

Coupling, Two Piece, Bore Dia 50 mm - MSPC-50-50-SS

Coupling, Two Piece, Bore Dia 50 mm - MSPC-50-50-SS

Ruland
SKU:
MSPC-50-50-SS
|
UPC:
634529017425
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 50 mm, Bore Diameter 2 50 mm, Bore Type Round Keyed, Clearance Diameter 94.2 mm, Coupling Construction Two-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 85 mm, Different Bore Sizes No, Keyway Depth 1 4 mm, Keyway Depth 2 4 mm, Minimum Bore Diameter 50 mm, Keyway Width 1 14 mm, Keyway Width 2 14 mm, Maximum Bore Diameter 50 mm, Maximum Speed 4,000 RPM, Maximum Torque 675 N-m, Overall Length 124 mm, Shaft Locking Type Clamp On
Additional Information
Country of Origin:
United States
Item:
Rigid Shaft Coupling
Shaft Locking Type - Couplings:
2 Piece Clamp
System of Measurement:
Metric
Bore Dia.:
50 mm
Material - Couplings:
Stainless Steel
Outside Dia.:
85 mm
Overall Length:
124 mm
With Keyway / Without Keyway:
With Keyway
Finish:
Bright
Material:
Stainless Steel
Design:
Four Vibration Resistant Socket Capscrews
Keyway Width:
14 mm
Keyway Width (mm):
14
Max. Torque (In.-Lbs.):
10500
Provides:
Extra Holding Power for Higher Load Applications without Marring Shafts
Screw Size (mm):
M10
Clearance Dia. (mm):
94.20
Machined From:
Bar Stock
Max. Torque:
5,974 in-lb
Clearance Dia.:
94.2 mm
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Type:
Two Piece Clamp Type, with Keyway
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Screw Size:
M10
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS3 Compliant
Screw Material:
Stainless Steel
Bore Tolerance:
+0.050 mm / +0.012 mm
Screw Location from Center:
34.1 mm
Screw Thread Size:
M10
Maximum Speed:
4,000 RPM
Coupling Construction:
Two-Piece
Coupling Material:
Stainless Steel
Coupling Outside Diameter:
85 mm
Recommended Gap:
2.38 mm
Number of Locking Screws:
8
Minimum Operating Temperature:
-40 Degrees C
Clearance Diameter:
94.2 mm
Screw Material Finish:
Bright
Keyway Depth 1:
4 mm
Included Screws:
(8) Clamp Screws
Bore Type:
Round Keyed
Shaft Locking Type:
Clamp On
Fastener Tightening Torque:
77 N-m
Maximum Torque:
675 N-m
Keyway Width 2:
14 mm
Resistance Properties:
Corrosion Resistant
Features:
Precision Honed Bores, Vibration-Resistant Screws
Different Bore Sizes:
No
Bore Diameter 1:
50 mm
Zero Backlash:
Yes
Screw Material Grade:
18-8 300 Series
Maximum Bore Diameter:
50 mm
Shaft Tolerance:
+0.000 mm / -0.013 mm
Bore Diameter 2:
50 mm
Minimum Bore Diameter:
50 mm
Keyway Width 1:
14 mm
Maximum Operating Temperature:
176 Degrees C
Coupling Material Grade:
303
Coupling Material Finish:
Bright
Keyway Depth 2:
4 mm
Package Quantity:
1
