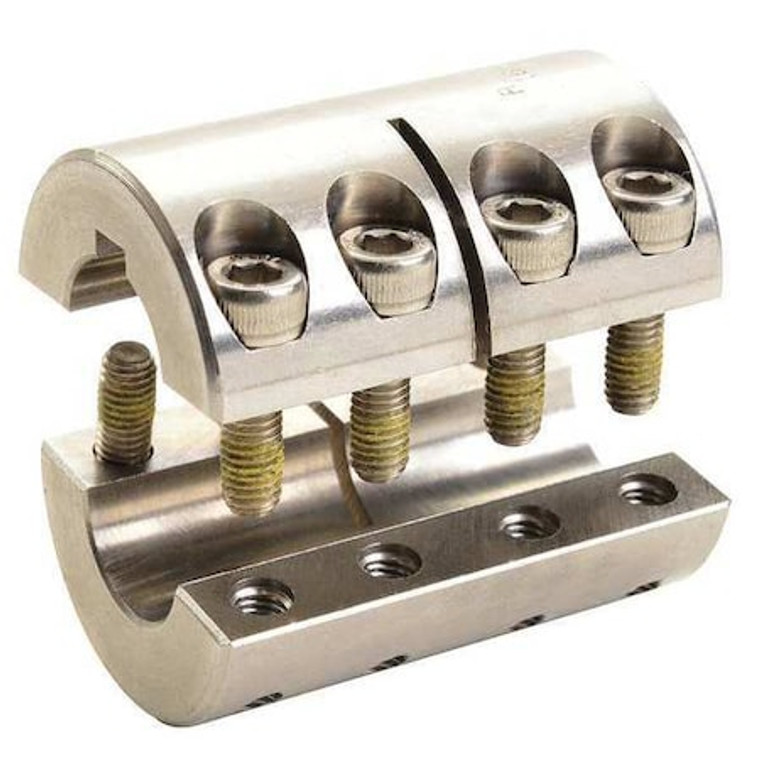

Coupling, Two Piece, Bore Dia 5/8 x 1/2 In - SPC-10-8-SS

Coupling, Two Piece, Bore Dia 5/8 x 1/2 In - SPC-10-8-SS

Ruland
SKU:
SPC-10-8-SS
|
UPC:
634529022238
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 5/8 in, Bore Diameter 2 1/2 in, Bore Type Round Keyed, Clearance Diameter 1.51 in, Coupling Construction Two-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 1 5/16 in, Different Bore Sizes Yes, Keyway Depth 1 3/32 in, Keyway Depth 2 1/16 in, Minimum Bore Diameter 1/2 in, Keyway Width 1 3/16 in, Keyway Width 2 1/8 in, Maximum Bore Diameter 5/8 in, Maximum Speed 4,000 RPM, Maximum Torque 475 in-lb, Overall Length 2 in
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
2 Piece Clamp
Item:
Rigid Shaft Coupling
System of Measurement:
Inch
Bore Dia.:
1/2 in x 5/8 in
Material - Couplings:
Stainless Steel
Outside Dia.:
1 5/16 in
Overall Length:
2 in
With Keyway / Without Keyway:
With Keyway
Finish:
Bright
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Machined From:
Bar Stock
Keyway Width:
3/16 in x 1/8 in
Type:
Two Piece Clamp Type, with Keyway
Clearance Dia. (In.):
1.514
Provides:
Extra Holding Power for Higher Load Applications without Marring Shafts
Design:
Four Vibration Resistant Socket Capscrews
Clearance Dia.:
1.514 in
Material:
Stainless Steel
Keyway Width (In.):
3/16 x 1/8
Screw Size (In.):
#10-32
Max. Torque (In.-Lbs.):
475
Max. Torque:
475 in-lb
Standards:
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Screw Size:
#10-32
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Bore Tolerance:
+0.0020 in / +0.0005 in
Screw Material:
Stainless Steel
Minimum Operating Temperature:
-40 Degrees F
Included Screws:
(8) Clamp Screws
Keyway Width 1:
3/16 in
Features:
Precision Honed Bores, Vibration-Resistant Screws
Fastener Tightening Torque:
45 lb-in
Screw Location from Center:
0.484 in
Keyway Depth 1:
3/32 in
Different Bore Sizes:
Yes
Bore Diameter 1:
5/8 in
Minimum Bore Diameter:
1/2 in
Zero Backlash:
Yes
Clearance Diameter:
1.51 in
Keyway Depth 2:
1/16 in
Coupling Outside Diameter:
1 5/16 in
Maximum Torque:
475 in-lb
Screw Material Grade:
18-8 300 Series
Coupling Material Finish:
Bright
Maximum Bore Diameter:
5/8 in
Resistance Properties:
Corrosion Resistant
Bore Diameter 2:
1/2 in
Coupling Construction:
Two-Piece
Coupling Material:
Stainless Steel
Number of Locking Screws:
8
Recommended Gap:
0.063 in
Bore Type:
Round Keyed
Coupling Material Grade:
303
Screw Material Finish:
Bright
Keyway Width 2:
1/8 in
Screw Thread Size:
#10-32
Shaft Tolerance:
+0.0000 in / -0.0005 in
Maximum Operating Temperature:
350 Degrees F
Shaft Locking Type:
Clamp On
Maximum Speed:
4,000 RPM
Package Quantity:
1
