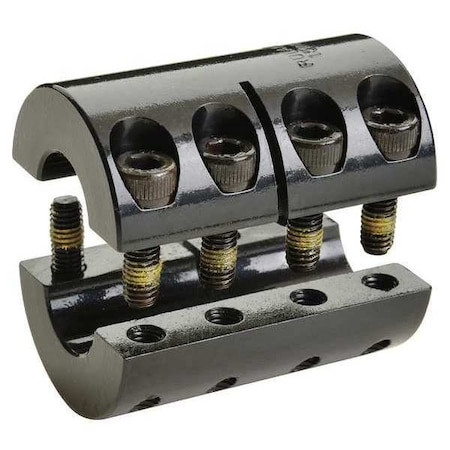

Coupling, Two Piece, Bore Dia 25 mm - MSPX-25-25-F

Coupling, Two Piece, Bore Dia 25 mm - MSPX-25-25-F

Ruland
SKU:
MSPX-25-25-F
|
UPC:
634529018101
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 25 mm, Bore Diameter 2 25 mm, Bore Type Round, Clearance Diameter 51.5 mm, Coupling Construction Two-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 45 mm, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 25 mm, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 25 mm, Maximum Speed 4,000 RPM, Maximum Torque 400 N-m, Overall Length 75 mm
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
2 Piece Clamp
Item:
Rigid Shaft Coupling
System of Measurement:
Metric
Bore Dia.:
25 mm
Material - Couplings:
Steel
Outside Dia.:
45 mm
Overall Length:
75 mm
With Keyway / Without Keyway:
Without Keyway
Finish:
black oxide
Design:
Four Vibration Resistant Socket Capscrews
Clearance Dia.:
51.5 mm
Screw Size (mm):
M6
Clearance Dia. (mm):
51.50
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Type:
Two Piece Clamp Type, Without Keyway
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Provides:
Extra Holding Power for Higher Load Applications without Marring Shafts
Max. Torque:
3,450 in-lb
Machined From:
Bar Stock
Max. Torque (In.-Lbs.):
3450
Screw Size:
M6
Material:
Black Oxide Steel
Standards:
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS3 Compliant
Bore Tolerance:
+0.050 mm / +0.012 mm
Screw Material:
Alloy Steel
Included Screws:
(8) Clamp Screws
Coupling Material Grade:
1215
Recommended Gap:
2.38 mm
Coupling Material Finish:
Black Oxide
Bore Type:
Round
Resistance Properties:
Corrosion Resistant
Shaft Locking Type:
Clamp On
Screw Material Finish:
Black Oxide
Keyway Width 2:
Not Applicable
Maximum Speed:
4,000 RPM
Minimum Operating Temperature:
-40 Degrees C
Screw Location from Center:
16.9 mm
Coupling Material:
Carbon Steel
Fastener Tightening Torque:
16 N-m
Bore Diameter 2:
25 mm
Coupling Outside Diameter:
45 mm
Keyway Width 1:
Not Applicable
Shaft Tolerance:
+0.000 mm / -0.013 mm
Minimum Bore Diameter:
25 mm
Bore Diameter 1:
25 mm
Maximum Operating Temperature:
176 Degrees C
Number of Locking Screws:
8
Maximum Bore Diameter:
25 mm
Zero Backlash:
Yes
Clearance Diameter:
51.5 mm
Maximum Torque:
400 N-m
Different Bore Sizes:
No
Keyway Depth 1:
Not Applicable
Features:
Precision Honed Bores, Vibration-Resistant Screws
Screw Thread Size:
M6
Coupling Construction:
Two-Piece
Keyway Depth 2:
Not Applicable
Package Quantity:
1
