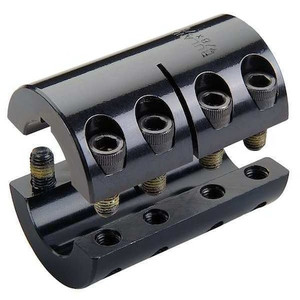

Coupling, Two Piece, Bore Dia 1 x 3/4 In - SPC-16-12-F

Coupling, Two Piece, Bore Dia 1 x 3/4 In - SPC-16-12-F

Ruland
SKU:
SPC-16-12-F
|
UPC:
634529022412
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 1 in, Bore Diameter 2 3/4 in, Bore Type Round Keyed, Clearance Diameter 2.05 in, Coupling Construction Two-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 3/4 in, Different Bore Sizes Yes, Keyway Depth 1 1/8 in, Keyway Depth 2 3/32 in, Minimum Bore Diameter 3/4 in, Keyway Width 1 1/4 in, Keyway Width 2 3/16 in, Maximum Bore Diameter 1 in, Maximum Speed 4,000 RPM, Maximum Torque 4,000 in-lb, Overall Length 3 in, Shaft Locking Type Clamp On
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
2 Piece Clamp
Item:
Rigid Shaft Coupling
System of Measurement:
Inch
Bore Dia.:
3/4 in x 1 in
Material - Couplings:
Steel
Outside Dia.:
1 3/4 in
Overall Length:
3 in
With Keyway / Without Keyway:
With Keyway
Finish:
black oxide
Clearance Dia.:
2.049 in
Keyway Width:
1/4 in x 3/16 in
Standards:
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Clearance Dia. (In.):
2.049
Design:
Four Vibration Resistant Socket Capscrews
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Max. Torque:
4,000 in-lb
Max. Torque (In.-Lbs.):
4000
Screw Size (In.):
1/4-28
Material:
Black Oxide Steel
Type:
Two Piece Clamp Type, with Keyway
Screw Size:
1/4-28"
Keyway Width (In.):
1/4 x 3/16
Provides:
Extra Holding Power for Higher Load Applications without Marring Shafts
Machined From:
Bar Stock
Screw Material:
Alloy Steel
Bore Tolerance:
+0.0020 in / +0.0005 in
Recommended Gap:
0.094 in
Resistance Properties:
Corrosion Resistant
Shaft Tolerance:
+0.0000 in / -0.0005 in
Coupling Material Grade:
1215
Maximum Torque:
4,000 in-lb
Features:
Precision Honed Bores, Vibration-Resistant Screws
Bore Diameter 1:
1 in
Coupling Construction:
Two-Piece
Screw Material Finish:
Black Oxide
Bore Diameter 2:
3/4 in
Screw Thread Size:
1/4-28"
Keyway Width 1:
1/4 in
Maximum Bore Diameter:
1 in
Different Bore Sizes:
Yes
Keyway Depth 2:
3/32 in
Screw Location from Center:
0.67 in
Coupling Material Finish:
Black Oxide
Clearance Diameter:
2.05 in
Maximum Operating Temperature:
350 Degrees F
Minimum Bore Diameter:
3/4 in
Keyway Width 2:
3/16 in
Keyway Depth 1:
1/8 in
Maximum Speed:
4,000 RPM
Zero Backlash:
Yes
Fastener Tightening Torque:
170 lb-in
Included Screws:
(8) Clamp Screws
Number of Locking Screws:
8
Bore Type:
Round Keyed
Coupling Outside Diameter:
1 3/4 in
Coupling Material:
Carbon Steel
Minimum Operating Temperature:
-40 Degrees F
Shaft Locking Type:
Clamp On
Package Quantity:
1
