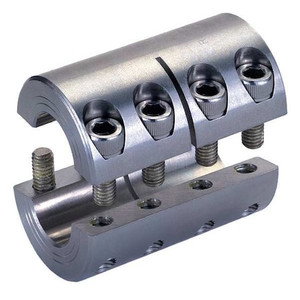

Coupling, Two Piece, Bore Dia 1 3/8 In - SPC-22-22-F

Coupling, Two Piece, Bore Dia 1 3/8 In - SPC-22-22-F

Ruland
SKU:
SPC-22-22-F
|
UPC:
634529022771
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 1 3/8 in, Bore Diameter 2 1 3/8 in, Bore Type Round Keyed, Clearance Diameter 2.77 in, Coupling Construction Two-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 2 1/2 in, Different Bore Sizes No, Keyway Depth 1 5/32 in, Keyway Depth 2 5/32 in, Minimum Bore Diameter 1 3/8 in, Keyway Width 1 5/16 in, Keyway Width 2 5/16 in, Maximum Bore Diameter 1 3/8 in, Maximum Speed 4,000 RPM, Maximum Torque 9,600 in-lb, Overall Length 3 5/8 in
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
2 Piece Clamp
Item:
Rigid Shaft Coupling
System of Measurement:
Inch
Bore Dia.:
1 3/8 in
Material - Couplings:
Steel
Outside Dia.:
2 1/2 in
Overall Length:
3 5/8 in
With Keyway / Without Keyway:
With Keyway
Finish:
black oxide
Machined From:
Bar Stock
Max. Torque:
9,600 in-lb
Clearance Dia. (In.):
2.772
Standards:
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Keyway Width:
5/16 in
Provides:
Extra Holding Power for Higher Load Applications without Marring Shafts
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Keyway Width (In.):
5/16
Design:
Four Vibration Resistant Socket Capscrews
Material:
Black Oxide Steel
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Clearance Dia.:
2.772 in
Screw Size (In.):
5/16-24
Screw Size:
5/16-24"
Max. Torque (In.-Lbs.):
9600
Type:
Two Piece Clamp Type, with Keyway
Bore Tolerance:
+0.0020 in / +0.0005 in
Screw Material:
Alloy Steel
Coupling Outside Diameter:
2 1/2 in
Bore Diameter 1:
1 3/8 in
Keyway Width 2:
5/16 in
Recommended Gap:
0.094 in
Clearance Diameter:
2.77 in
Coupling Material Grade:
1215
Maximum Torque:
9,600 in-lb
Bore Type:
Round Keyed
Screw Location from Center:
0.986 in
Coupling Material Finish:
Black Oxide
Maximum Bore Diameter:
1 3/8 in
Resistance Properties:
Corrosion Resistant
Coupling Construction:
Two-Piece
Number of Locking Screws:
8
Different Bore Sizes:
No
Zero Backlash:
Yes
Screw Thread Size:
5/16-24"
Shaft Locking Type:
Clamp On
Minimum Bore Diameter:
1 3/8 in
Maximum Speed:
4,000 RPM
Included Screws:
(8) Clamp Screws
Keyway Depth 2:
5/32 in
Shaft Tolerance:
+0.0000 in / -0.0005 in
Coupling Material:
Carbon Steel
Maximum Operating Temperature:
350 Degrees F
Bore Diameter 2:
1 3/8 in
Screw Material Finish:
Black Oxide
Features:
Precision Honed Bores, Vibration-Resistant Screws
Minimum Operating Temperature:
-40 Degrees F
Keyway Width 1:
5/16 in
Keyway Depth 1:
5/32 in
Fastener Tightening Torque:
325 lb-in
Package Quantity:
1
