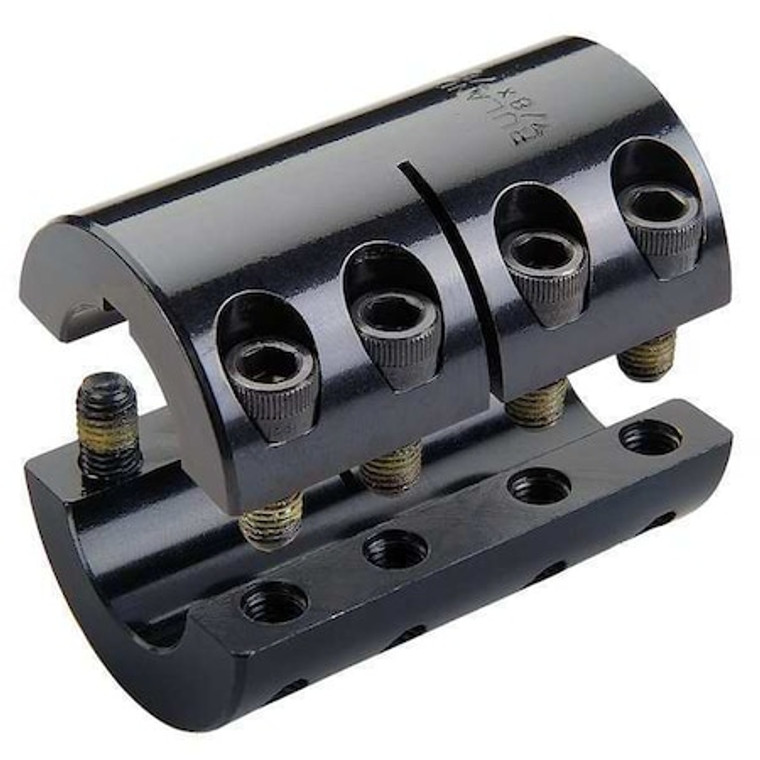

Coupling, Two Piece, Bore Dia 1/2 In - SPC-8-8-F

Coupling, Two Piece, Bore Dia 1/2 In - SPC-8-8-F

Ruland
SKU:
SPC-8-8-F
|
UPC:
634529023143
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 1/2 in, Bore Diameter 2 1/2 in, Bore Type Round Keyed, Clearance Diameter 1.33 in, Coupling Construction Two-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 1/8 in, Different Bore Sizes No, Keyway Depth 1 1/16 in, Keyway Depth 2 1/16 in, Minimum Bore Diameter 1/2 in, Keyway Width 1 1/8 in, Keyway Width 2 1/8 in, Maximum Bore Diameter 1/2 in, Maximum Speed 4,000 RPM, Maximum Torque 950 in-lb, Overall Length 1 3/4 in
Additional Information
Country of Origin:
United States
Item:
Rigid Shaft Coupling
Shaft Locking Type - Couplings:
2 Piece Clamp
System of Measurement:
Inch
Bore Dia.:
1/2 in
Material - Couplings:
Steel
Outside Dia.:
1 1/8 in
Overall Length:
1 3/4 in
With Keyway / Without Keyway:
With Keyway
Finish:
black oxide
Type:
Two Piece Clamp Type, with Keyway
Standards:
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Keyway Width:
1/8 in
Max. Torque (In.-Lbs.):
950
Screw Size (In.):
#8-32
Provides:
Extra Holding Power for Higher Load Applications without Marring Shafts
Max. Torque:
950 in-lb
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Material:
Black Oxide Steel
Clearance Dia.:
1.328 in
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Clearance Dia. (In.):
1.328
Design:
Four Vibration Resistant Socket Capscrews
Screw Size:
#8-32
Machined From:
Bar Stock
Keyway Width (In.):
1/8
Screw Material:
Alloy Steel
Bore Tolerance:
+0.0020 in / +0.0005 in
Different Bore Sizes:
No
Bore Diameter 2:
1/2 in
Screw Material Finish:
Black Oxide
Coupling Outside Diameter:
1 1/8 in
Keyway Depth 2:
1/16 in
Coupling Material Finish:
Black Oxide
Minimum Operating Temperature:
-40 Degrees F
Recommended Gap:
0.063 in
Coupling Material Grade:
1215
Keyway Width 1:
1/8 in
Screw Thread Size:
#8-32
Maximum Torque:
950 in-lb
Shaft Locking Type:
Clamp On
Zero Backlash:
Yes
Maximum Operating Temperature:
350 Degrees F
Keyway Width 2:
1/8 in
Maximum Bore Diameter:
1/2 in
Minimum Bore Diameter:
1/2 in
Fastener Tightening Torque:
49 lb-in
Included Screws:
(8) Clamp Screws
Keyway Depth 1:
1/16 in
Coupling Construction:
Two-Piece
Clearance Diameter:
1.33 in
Screw Location from Center:
0.43 in
Number of Locking Screws:
8
Features:
Precision Honed Bores, Vibration-Resistant Screws
Coupling Material:
Carbon Steel
Bore Type:
Round Keyed
Resistance Properties:
Corrosion Resistant
Bore Diameter 1:
1/2 in
Maximum Speed:
4,000 RPM
Shaft Tolerance:
+0.0000 in / -0.0005 in
Package Quantity:
1
