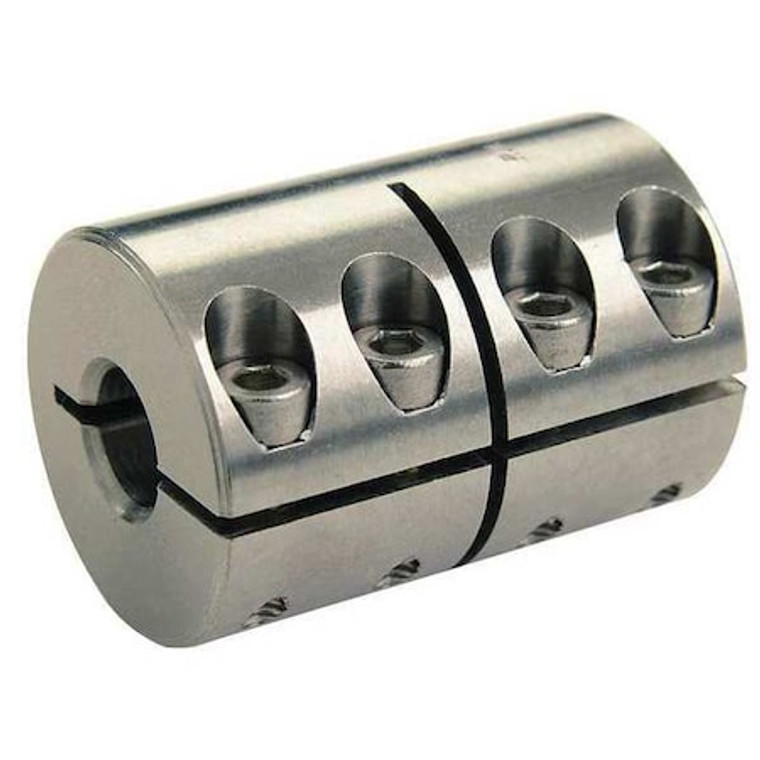

Coupling, One Piece, Bore Dia 3/4 x 1/2 In - CLX-12-8-SS

Coupling, One Piece, Bore Dia 3/4 x 1/2 In - CLX-12-8-SS

Ruland
SKU:
CLX-12-8-SS
|
UPC:
634529003879
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 3/4 in, Bore Diameter 2 1/2 in, Bore Type Round, Clearance Diameter 1.84 in, Coupling Construction One-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 1 1/2 in, Different Bore Sizes Yes, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 1/2 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 3/4 in, Maximum Speed 4,000 RPM, Maximum Torque 950 in-lb
Additional Information
Country of Origin:
United States
Item:
Rigid Shaft Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Inch
Bore Dia.:
1/2 in x 3/4 in
Material - Couplings:
303 Stainless Steel
Outside Dia.:
1 1/2 in
Overall Length:
2 1/4 in
With Keyway / Without Keyway:
Without Keyway
Finish:
Bright
Standards:
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Max. Torque:
950 in-lb
Clearance Dia.:
1.842 in
Max. Torque (In.-Lbs.):
950
Screw Size (In.):
1/4-28
Screw Size:
1/4-28"
Clearance Dia. (In.):
1.842
Design:
Four Vibration Resistant Socket Capscrews
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Material:
303 Stainless Steel
Type:
One Piece Clamp Type, Without Keyway
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Machined From:
Bar Stock
Provides:
Extra Holding Power for Higher Load Applications without Marring Shafts
Screw Material:
Stainless Steel
Bore Tolerance:
+0.0020 in / +0.0005 in
Clearance Diameter:
1.84 in
Number of Locking Screws:
4
Shaft Locking Type:
Clamp On
Fastener Tightening Torque:
110 lb-in
Screw Material Grade:
18-8 300 Series
Maximum Operating Temperature:
350 Degrees F
Zero Backlash:
Yes
Recommended Gap:
Not Applicable
Keyway Depth 2:
Not Applicable
Shaft Tolerance:
+0.0000 in / -0.0005 in
Keyway Width 2:
Not Applicable
Different Bore Sizes:
Yes
Included Screws:
(4) Clamp Screws
Bore Type:
Round
Coupling Construction:
One-Piece
Minimum Bore Diameter:
1/2 in
Coupling Material:
Stainless Steel
Keyway Width 1:
Not Applicable
Maximum Torque:
950 in-lb
Screw Material Finish:
Bright
Resistance Properties:
Corrosion Resistant
Coupling Outside Diameter:
1 1/2 in
Keyway Depth 1:
Not Applicable
Coupling Material Grade:
303
Coupling Material Finish:
Bright
Maximum Speed:
4,000 RPM
Bore Diameter 2:
1/2 in
Bore Diameter 1:
3/4 in
Maximum Bore Diameter:
3/4 in
Minimum Operating Temperature:
-40 Degrees F
Features:
Precision Honed Bores, Vibration-Resistant Screws
Screw Location from Center:
0.545 in
Screw Thread Size:
1/4-28"
Package Quantity:
1
