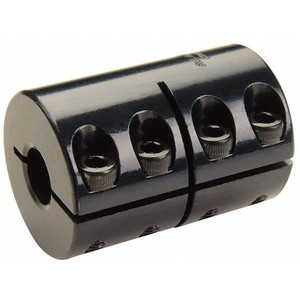

Coupling, One Piece, Bore Dia 1/2 x 3/8 In - CLX-8-6-F

Coupling, One Piece, Bore Dia 1/2 x 3/8 In - CLX-8-6-F

Ruland
SKU:
CLX-8-6-F
|
UPC:
634529004739
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 1/2 in, Bore Diameter 2 3/8 in, Bore Type Round, Clearance Diameter 1.33 in, Coupling Construction One-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 1/8 in, Different Bore Sizes Yes, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 3/8 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 1/2 in, Maximum Speed 4,000 RPM, Maximum Torque 950 in-lb, Overall Length 1 3/4 in
Additional Information
Country of Origin:
United States
Item:
Rigid Shaft Coupling
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Inch
Bore Dia.:
1/2 in x 3/8 in
Material - Couplings:
1215 Lead Free Steel
Outside Dia.:
1 1/8 in
Overall Length:
1 3/4 in
With Keyway / Without Keyway:
Without Keyway
Finish:
black oxide
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Max. Torque (In.-Lbs.):
950
Standards:
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Provides:
Extra Holding Power for Higher Load Applications without Marring Shafts
Material:
Black Oxide 1215 Lead Free Steel
Clearance Dia.:
1.328 in
Screw Size:
#8-32
Max. Torque:
950 in-lb
Screw Size (In.):
#8-32
Type:
One Piece Clamp Type, Without Keyway
Design:
Four Vibration Resistant Socket Capscrews
Clearance Dia. (In.):
1.328
Machined From:
Bar Stock
Screw Material:
Alloy Steel
Bore Tolerance:
+0.0020 in / +0.0005 in
Maximum Bore Diameter:
1/2 in
Screw Location from Center:
0.43 in
Features:
Precision Honed Bores, Vibration-Resistant Screws
Coupling Construction:
One-Piece
Fastener Tightening Torque:
49 lb-in
Shaft Tolerance:
+0.0000 in / -0.0005 in
Screw Material Finish:
Black Oxide
Number of Locking Screws:
4
Bore Diameter 1:
1/2 in
Zero Backlash:
Yes
Bore Type:
Round
Resistance Properties:
Corrosion Resistant
Keyway Width 1:
Not Applicable
Recommended Gap:
Not Applicable
Screw Thread Size:
#8-32
Coupling Material Finish:
Black Oxide
Coupling Outside Diameter:
1 1/8 in
Minimum Bore Diameter:
3/8 in
Keyway Width 2:
Not Applicable
Clearance Diameter:
1.33 in
Bore Diameter 2:
3/8 in
Different Bore Sizes:
Yes
Coupling Material Grade:
1215
Keyway Depth 2:
Not Applicable
Coupling Material:
Carbon Steel
Maximum Torque:
950 in-lb
Included Screws:
(4) Clamp Screws
Keyway Depth 1:
Not Applicable
Minimum Operating Temperature:
-40 Degrees F
Maximum Operating Temperature:
350 Degrees F
Shaft Locking Type:
Clamp On
Maximum Speed:
4,000 RPM
Package Quantity:
1
