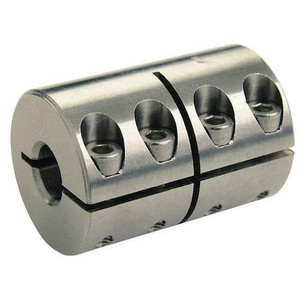

Coupling, One Piece, Bore Dia 1 1/8 x 1 In - CLX-18-16-SS

Coupling, One Piece, Bore Dia 1 1/8 x 1 In - CLX-18-16-SS

Ruland
SKU:
CLX-18-16-SS
|
UPC:
634529004128
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Rigid Shaft Coupling, Bore Diameter 1 1 1/8 in, Bore Diameter 2 1 in, Bore Type Round, Clearance Diameter 2.18 in, Coupling Construction One-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 1 7/8 in, Different Bore Sizes Yes, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 1 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 1 1/8 in, Maximum Speed 4,000 RPM, Maximum Torque 1,325 in-lb
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Rigid Shaft Coupling
System of Measurement:
Inch
Bore Dia.:
1 in x 1-1/8 in
Material - Couplings:
303 Stainless Steel
Outside Dia.:
1 7/8 in
Overall Length:
3 1/8 in
With Keyway / Without Keyway:
Without Keyway
Finish:
Bright
Max. Torque (In.-Lbs.):
1325
Design:
Four Vibration Resistant Socket Capscrews
Clearance Dia. (In.):
2.182
Screw Size:
1/4-28"
Screw Size (In.):
1/4-28
Max. Torque:
1,325 in-lb
Application:
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Clearance Dia.:
2.182 in
Standards:
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Machined From:
Bar Stock
Type:
One Piece Clamp Type, Without Keyway
Item - Rigid Shaft Couplings:
Rigid Shaft Coupling
Material:
303 Stainless Steel
Provides:
Extra Holding Power for Higher Load Applications without Marring Shafts
Screw Material:
Stainless Steel
Bore Tolerance:
+0.0020 in / +0.0005 in
Screw Location from Center:
0.748 in
Shaft Locking Type:
Clamp On
Recommended Gap:
Not Applicable
Keyway Depth 2:
Not Applicable
Features:
Precision Honed Bores, Vibration-Resistant Screws
Coupling Material:
Stainless Steel
Bore Type:
Round
Fastener Tightening Torque:
110 lb-in
Included Screws:
(4) Clamp Screws
Coupling Material Finish:
Bright
Maximum Bore Diameter:
1 1/8 in
Coupling Construction:
One-Piece
Keyway Depth 1:
Not Applicable
Different Bore Sizes:
Yes
Bore Diameter 1:
1 1/8 in
Keyway Width 1:
Not Applicable
Resistance Properties:
Corrosion Resistant
Screw Material Finish:
Bright
Number of Locking Screws:
4
Clearance Diameter:
2.18 in
Screw Material Grade:
18-8 300 Series
Minimum Bore Diameter:
1 in
Minimum Operating Temperature:
-40 Degrees F
Maximum Speed:
4,000 RPM
Coupling Material Grade:
303
Coupling Outside Diameter:
1 7/8 in
Zero Backlash:
Yes
Keyway Width 2:
Not Applicable
Shaft Tolerance:
+0.0000 in / -0.0005 in
Screw Thread Size:
1/4-28"
Bore Diameter 2:
1 in
Maximum Torque:
1,325 in-lb
Maximum Operating Temperature:
350 Degrees F
Package Quantity:
1
