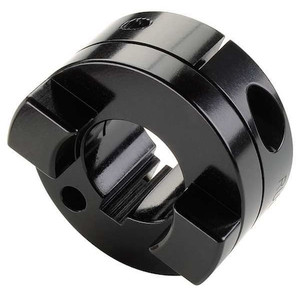

Coupling Hub, Oldham Clamp, 7/8in. - OCC32-14-A

Coupling Hub, Oldham Clamp, 7/8in. - OCC32-14-A

Ruland
SKU:
OCC32-14-A
|
UPC:
634529118658
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.008 in, Coupling Size OCC32, Outside Diameter 2 in, Over-Standard Parallel Misalignment 0.2 in, Parallel Misalignment 0.01 in, Coupling Overall Length 2.35 in, Hub Material Aluminum, Length through Bore 0.82 in, System of Measurement Inch, Bore Diameter 7/8 in, Maximum Speed 4,500 RPM, Bore Type Round Keyed, Shaft Locking Type Clamp On, Keyway Depth 3/32 in, Keyway Width 3/16 in, Screw Seating Torque 9.5 N-m
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Motion Control Coupling Hub
System of Measurement:
Inch
Bore Dia.:
7/8 in
Outside Dia.:
2 in
With Keyway / Without Keyway:
With Keyway
Finish:
Black Anodized
Max. Temp. Range (F):
Acetal Disk 150 Degrees F, Nylon Disk 130 Degrees F
Length through Bore (In.):
0.82 in
Material - Hubs:
Aluminum
Overall Length (mm):
20.8 mm
Max. Bore (In.):
0.875 in
Outside Dia. (In.):
2.000
Screw Size (mm):
M5
Material:
Aluminum
Clearance Dia. (mm):
50.8 mm
Style:
Oldham Clamp with Keyway
Outside Dia. (mm):
50.80
Screw Type:
Cap Screw
Max. RPM:
4,500 RPM
Item - Oldham Coupling Hubs:
Oldham Coupling Hub
Size:
OCC32
Keyway (In.):
3/16 in
Overall Length (In.):
0.82 in
Clearance Dia. (In.):
2 in
Hub Dia.:
2";Assembled Coupling Length=2.35 in"
Length through Bore (mm):
20.8 mm
Keyway Width:
3/16 in
Standards:
REACH Compliant, RoHS3 Compliant
Length through Bore:
0.82 in
Bore Tolerance:
+0.001/-0.000 in
Screw Seating Torque:
9.5 N-m
Screw Material:
Alloy Steel
Axial Motion:
0.008 in
Keyway Depth:
3/32 in
Bore Diameter:
7/8 in
Screw Thread Size:
M5
Parallel Misalignment:
0.01 in
Hub Material Grade:
2024
Minimum Operating Temperature:
-10 Degrees F
Hub Material:
Aluminum
Angular Misalignment:
0.5 Degrees
Bore Type:
Round Keyed
Screw Material Finish:
Black Oxide
Features:
Balanced Design
Outside Diameter:
2 in
Full Bearing Support Required:
Yes
Maximum Speed:
4,500 RPM
Shaft Tolerance:
+0.000/-0.013
Shaft Locking Type:
Clamp On
Coupling Size:
OCC32
Over-Standard Parallel Misalignment:
0.2 in
Coupling Overall Length:
2.35 in
For Misalignment Type:
Angular, Axial, Parallel
Weight:
0.21 lb
Mechanical Fuse Break:
Yes
Compatible Center Element Manufacturer Part Number:
OD32/51-AT, OD32/51-PEK
Hub Material Finish:
Black Anodized
Zero Backlash:
Yes
Number of Locking Screws:
1
Maximum Operating Temperature:
300 Degrees F
Included Screws:
Clamp Screw
Package Quantity:
1
