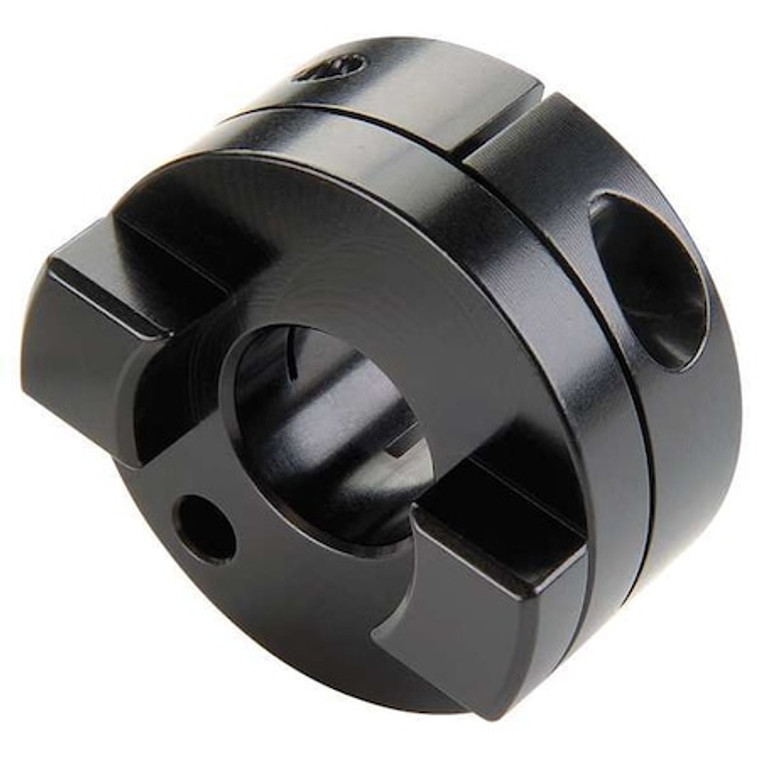

Coupling Hub, Oldham Clamp, 25mm - MOCT51-25-A

Coupling Hub, Oldham Clamp, 25mm - MOCT51-25-A

Ruland
SKU:
MOCT51-25-A
|
UPC:
634529065808
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.2 mm, Coupling Size MOCT51, Outside Diameter 50.8 mm, Over-Standard Parallel Misalignment 5.08 mm, Parallel Misalignment 0.25 mm, Coupling Overall Length 59.7 mm, Hub Material Aluminum, Length through Bore 20.8 mm, System of Measurement Metric, Bore Diameter 25 mm, Maximum Speed 4,500 RPM, Bore Type Round, Shaft Locking Type Clamp On, Keyway Depth Not Applicable, Keyway Width Not Applicable
Additional Information
Country of Origin:
United States
Item:
Motion Control Coupling Hub
Shaft Locking Type - Couplings:
1 Piece Clamp
System of Measurement:
Metric
Bore Dia.:
25 mm
Outside Dia.:
50.8 mm
With Keyway / Without Keyway:
Without Keyway
Finish:
Black Anodized
Hub Dia.:
50.8mm
Length through Bore (In.):
0.82 in
Screw Size (mm):
M5
Overall Length (mm):
20.8 mm
Item - Oldham Coupling Hubs:
Oldham Coupling Hub
Size:
MOCT51
Clearance Dia. (mm):
50.8 mm
Clearance Dia. (In.):
2 in
Outside Dia. (In.):
2.000
Outside Dia. (mm):
50.8
Length through Bore (mm):
20.8 mm
Assembled Coupling Length:
59.7 mm
Max. RPM:
4,500 RPM
Material:
Aluminum
Max. Temp. Range (F):
Acetal Disk 150 Degrees F, Nylon Disk 130 Degrees F
Overall Length (In.):
0.82 in
Screw Type:
Cap Screw
Material - Hubs:
Aluminum
Style:
Oldham Clamp
Keyway Width:
Not Applicable
Standards:
Conflict Minerals Compliant, ISO 9001
Length through Bore:
20.8 mm
Screw Material:
Alloy Steel
Screw Seating Torque:
9.5 N-m
Bore Tolerance:
+0.03 mm / -0.00 mm
For Misalignment Type:
Angular, Axial, Parallel
Full Bearing Support Required:
Yes
Weight:
0.205 lb
Bore Diameter:
25 mm
Minimum Operating Temperature:
-23 Degrees C
Maximum Speed:
4,500 RPM
Features:
Balanced Design
Set Screw Location:
Not Applicable
Axial Motion:
0.2 mm
Maximum Operating Temperature:
93 Degrees C
Over-Standard Parallel Misalignment:
5.08 mm
Zero Backlash:
Yes
Screw Thread Size:
M5
Compatible Center Element Manufacturer Part Number:
OD32/51-AT, OD32/51-PEK
Coupling Size:
MOCT51
Angular Misalignment:
0.5 Degrees
Keyway Depth:
Not Applicable
Number of Locking Screws:
1
Coupling Overall Length:
59.7 mm
Mechanical Fuse Break:
Yes
Hub Material:
Aluminum
Shaft Tolerance:
+0.000 mm / -0.013 mm
Hub Material Finish:
Black Anodized
Shaft Locking Type:
Clamp On
Bore Type:
Round
Hub Material Grade:
2024
Outside Diameter:
50.8 mm
Parallel Misalignment:
0.25 mm
Screw Material Finish:
Black Oxide
Included Screws:
Clamp Screw
Package Quantity:
1
