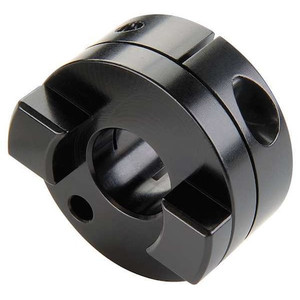

Coupling Hub, Oldham Clamp, 14mm - MOCT51-14-A

Coupling Hub, Oldham Clamp, 14mm - MOCT51-14-A

Ruland
SKU:
MOCT51-14-A
|
UPC:
634529065747
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.2 mm, Coupling Size MOCT51, Outside Diameter 50.8 mm, Over-Standard Parallel Misalignment 5.08 mm, Parallel Misalignment 0.25 mm, Coupling Overall Length 59.7 mm, Hub Material Aluminum, Length through Bore 20.8 mm, System of Measurement Metric, Bore Diameter 14 mm, Maximum Speed 4,500 RPM, Bore Type Round, Shaft Locking Type Clamp On, Keyway Depth Not Applicable, Keyway Width Not Applicable
Additional Information
Country of Origin:
United States
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Motion Control Coupling Hub
System of Measurement:
Metric
Bore Dia.:
14 mm
Outside Dia.:
50.8 mm
With Keyway / Without Keyway:
Without Keyway
Finish:
Black Anodized
Size:
MOCT51
Clearance Dia. (In.):
2 in
Max. RPM:
4,500 RPM
Screw Type:
Cap Screw
Material - Hubs:
Aluminum
Length through Bore (mm):
20.8 mm
Item - Oldham Coupling Hubs:
Oldham Coupling Hub
Max. Temp. Range (F):
Acetal Disk 150 Degrees F, Nylon Disk 130 Degrees F
Overall Length (In.):
0.82 in
Assembled Coupling Length:
59.7 mm
Overall Length (mm):
20.8 mm
Length through Bore (In.):
0.82 in
Screw Size (mm):
M5
Clearance Dia. (mm):
50.8 mm
Keyway Width:
Not Applicable
Standards:
Conflict Minerals Compliant, ISO 9001
Length through Bore:
20.8 mm
Screw Seating Torque:
9.5 N-m
Bore Tolerance:
+0.03 mm / -0.00 mm
Screw Material:
Alloy Steel
Keyway Depth:
Not Applicable
Hub Material:
Aluminum
Included Screws:
Clamp Screw
Coupling Overall Length:
59.7 mm
Features:
Balanced Design
Maximum Operating Temperature:
93 Degrees C
Coupling Size:
MOCT51
Minimum Operating Temperature:
-23 Degrees C
Bore Type:
Round
Hub Material Grade:
2024
Bore Diameter:
14 mm
Axial Motion:
0.2 mm
Over-Standard Parallel Misalignment:
5.08 mm
Shaft Locking Type:
Clamp On
Set Screw Location:
Not Applicable
Angular Misalignment:
0.5 Degrees
Hub Material Finish:
Black Anodized
Weight:
0.245 lb
Shaft Tolerance:
+0.000 mm / -0.013 mm
Full Bearing Support Required:
Yes
For Misalignment Type:
Angular, Axial, Parallel
Maximum Speed:
4,500 RPM
Zero Backlash:
Yes
Mechanical Fuse Break:
Yes
Screw Material Finish:
Black Oxide
Number of Locking Screws:
1
Parallel Misalignment:
0.25 mm
Outside Diameter:
50.8 mm
Compatible Center Element Manufacturer Part Number:
OD32/51-AT, OD32/51-PEK
Screw Thread Size:
M5
Package Quantity:
1
